Electrophysiology > Automated Systems and Workstations Products & Reviews

The primo LNP formulation screener

An affordable MEA system for every lab

MEA and live-cell analysis system

The Port-a-Patch is a miniaturized semi-automated patch clamp system supporting giga-seal recordings from one cell at a time. It offers fast and easy access to patch clamp data with only minimal training. Not only a powerful research tool but also ideal for educational purposes and quick tests of cells and ion channels.

Automated patch clamp made easy

High-throughput MEA and live-cell analysis system

The all-around LNP process developer

Stimulate 24-, 48- or 96-well plates with up to four wavelengths: blue, green, orange and red. Standalone device and pairs with Maestro Pro™ and Edge™

Nanion's Orbit 16 TC platform takes the pain out of bilayer painting and subsequent recordings as it enables fast and successful data generation thanks to the rapid automated formation of 16 bilayers at once and their subsequent fully parallel recording.

The SyncroPatch 384 is a revolutionary automated patch clamp system combining high quality electrophysiological data acquisition and analysis with state-of-the-art liquid handling. With 384 amplifier channels and a 384-pipetting head, up to 384 cells can be recorded in parallel, resulting in a throughput of up to 20,000 high-quality data points per day.

The Patchliner is a fully automated patch clamp system which records from either 4 or 8 cells simultaneously. The HEKA EPC10 amplifiers, full control over the pipette speed, ability to change protocols on-the-fly and flexible add-ons for temperature control and dynamic clamp make this instrument the most versatile APC system on the market.

Microelectrode arrays (MEAs) are a valuable tool for recording and measuring neuronal activity. This technology allows us to evaluate in real time how neuronal activity behaves in an environmentally controlled environment. In addition to spontaneous neuronal activity, electrical or compound stimulation can be performed, and over 40 different parameters are recorded simultaneously.

Patch clamp automation for the price of a manual rig

The most affordable high throughput automated patch clamp on the market

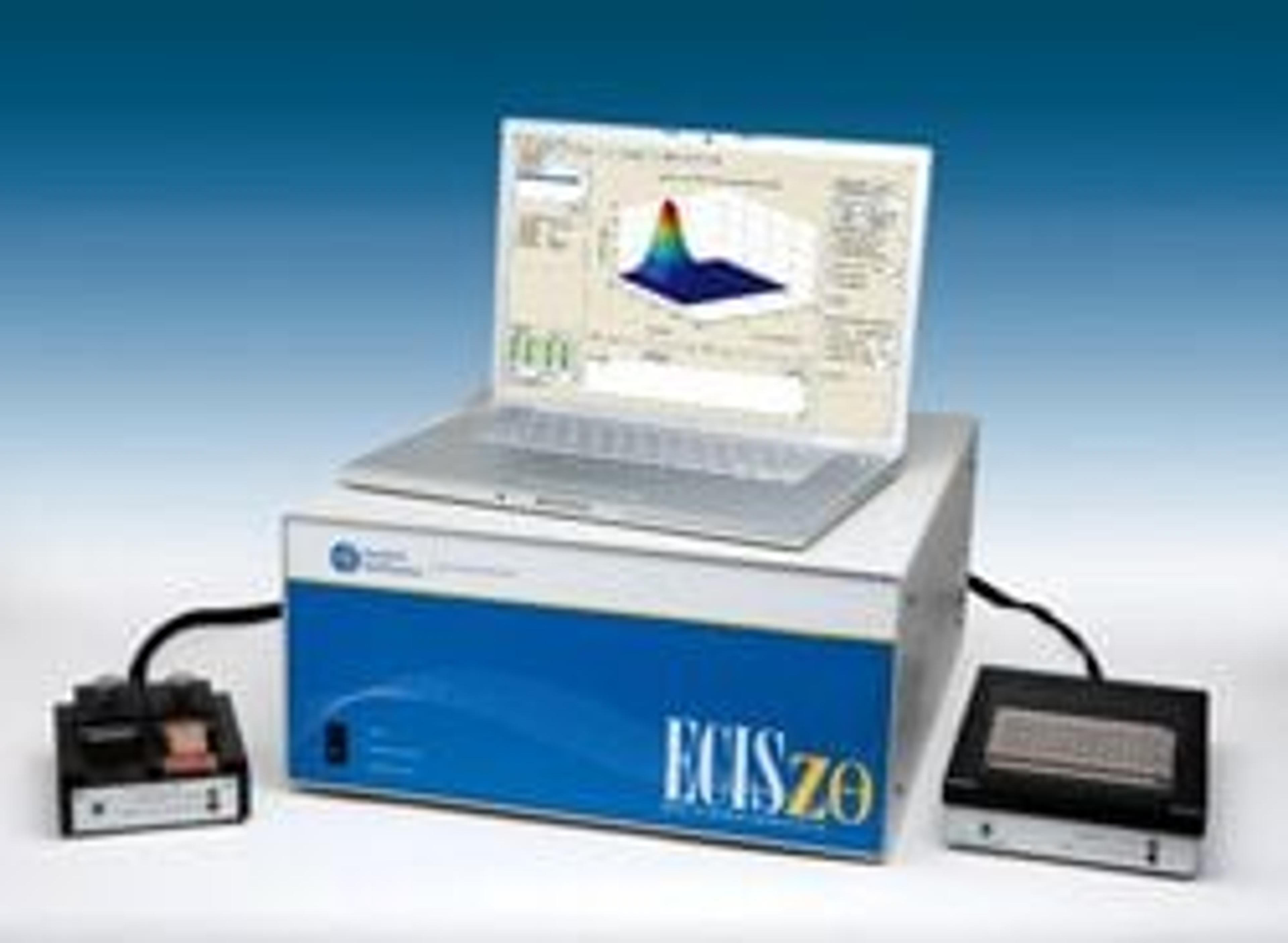

The ECIS® Zθ (theta) instrument provides researchers with our most advanced, automated, non-invasive instrument capable of monitoring cell behavior in real-time without the use of labels. The ECIS® Zθ measures the complex impedance spectrum (Z, R, C) of adherent cells growing on gold electrodes. The ECIS® Zθ can be configured to address 16 or 96 independent electrodes pattered in various 1, 2, 8 and 96 well cultureware. The in…

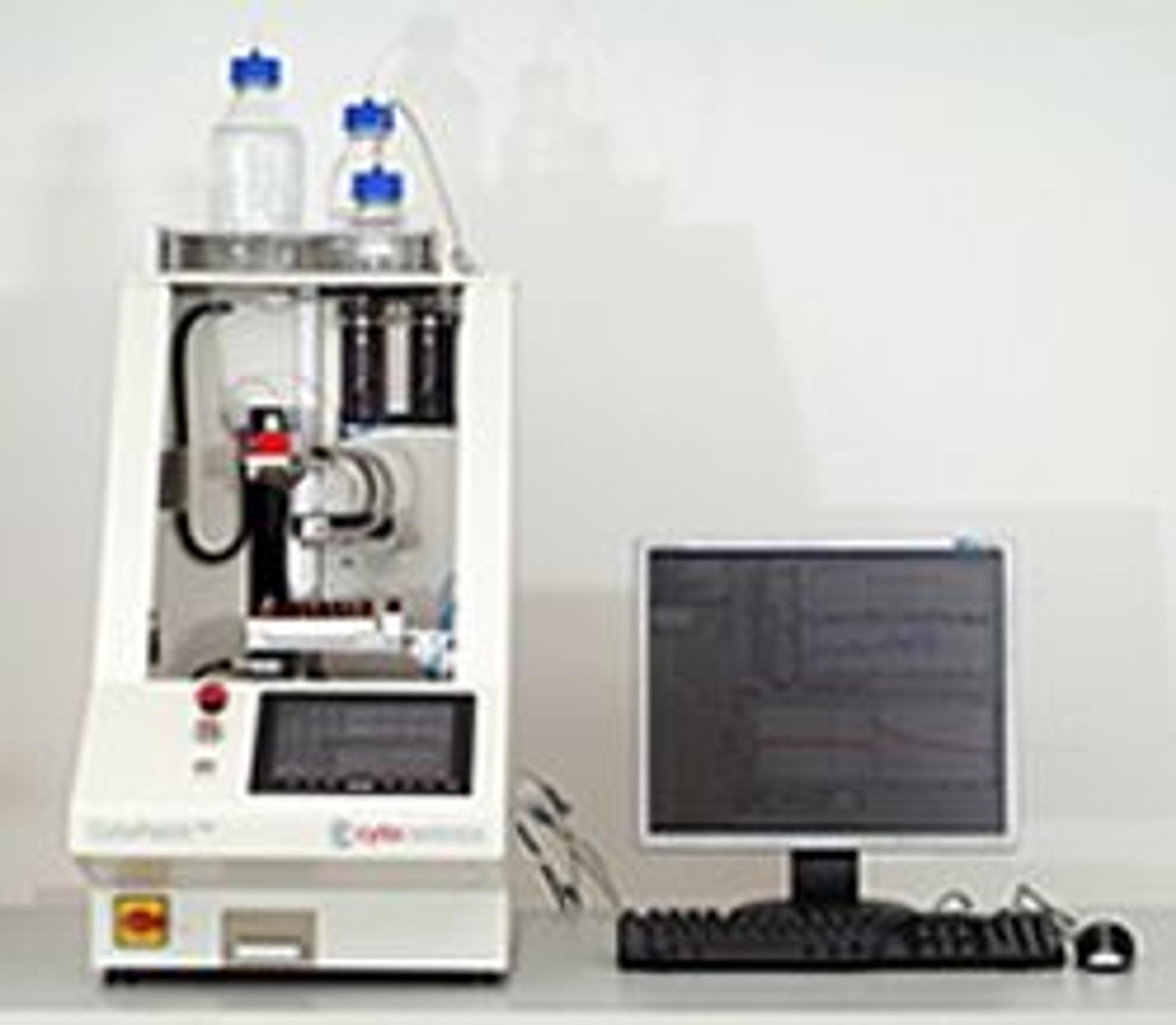

The CytoPatch™ Instrument combines the high data quality known from the manual patch clamp with a complete process and assay automation. A key feature of the CytoPatch™ Instrument is its modular concept: Each instrument is equipped with its own patch clamp amplifier and advanced perfusion system along with its own cell, buffer and compound supply. One CytoPatch™ Instrument can work either as a stand-alone device or as a multip…

The OmniPlex® D Neural Data Acquisition System is Plexon’s flagship electrophysiology research system. The combination of superior front-end amplification; and flexible, intuitive control software specifically tailored to the neuroscientist conducting extracellular recordings; and game-changing new PL2 neural data file format make the OmniPlex D System the most advanced neural data acquisition and online spike sorting system…

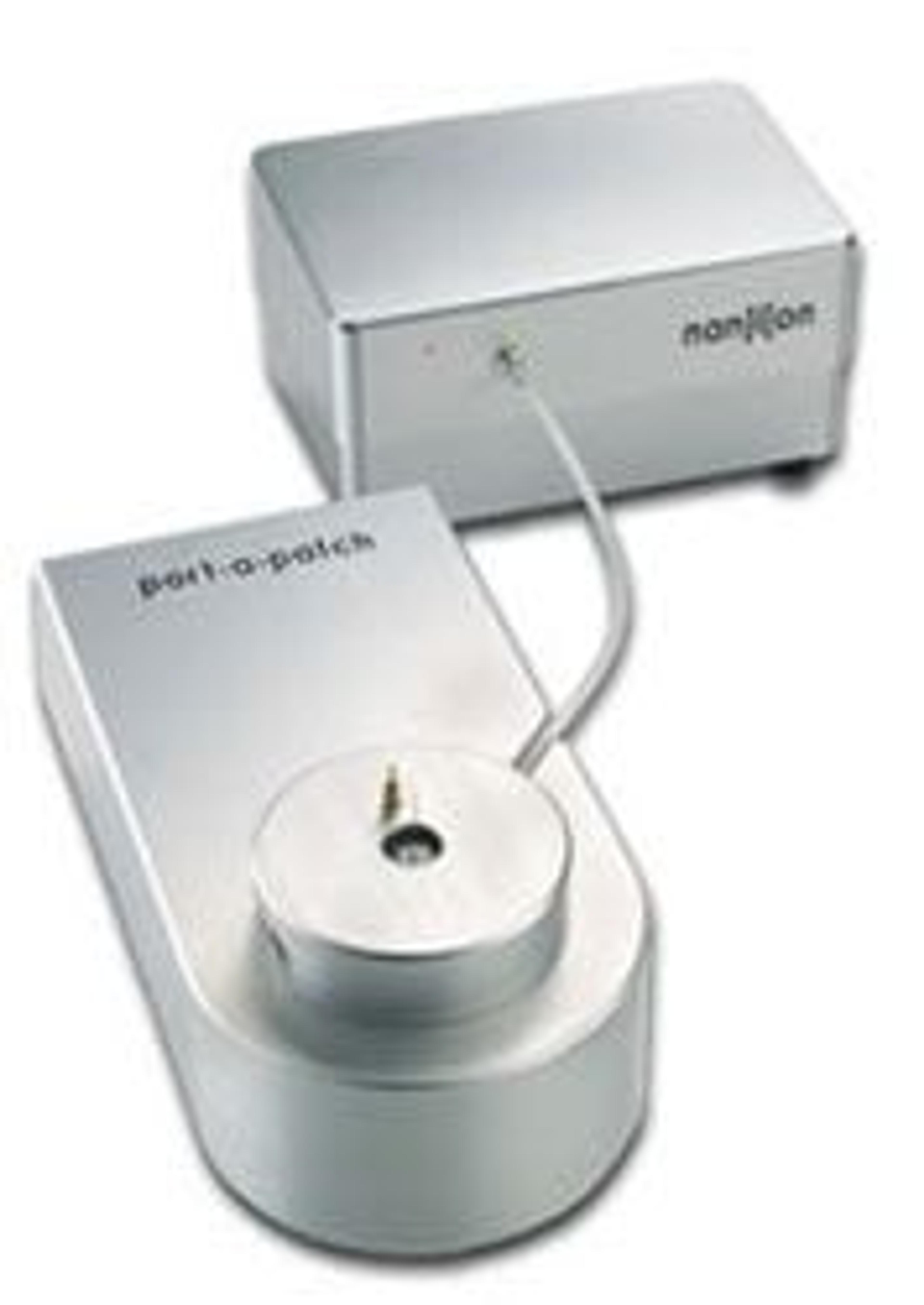

The world's smallest patch clamp rig. Providing biggest results. The Port-a-Patch is a one-cell-at-a-time system, which is surprisingly small for a complete patch clamp rig. Patch clamp recordings in the whole cell configuration, and single channel recordings in the cell attached configuration, can be performed with planar patch clamp chips. The Port-a-Patch is routinely provided with an Axon/MDC MultiClamp amplifier or an EPC…

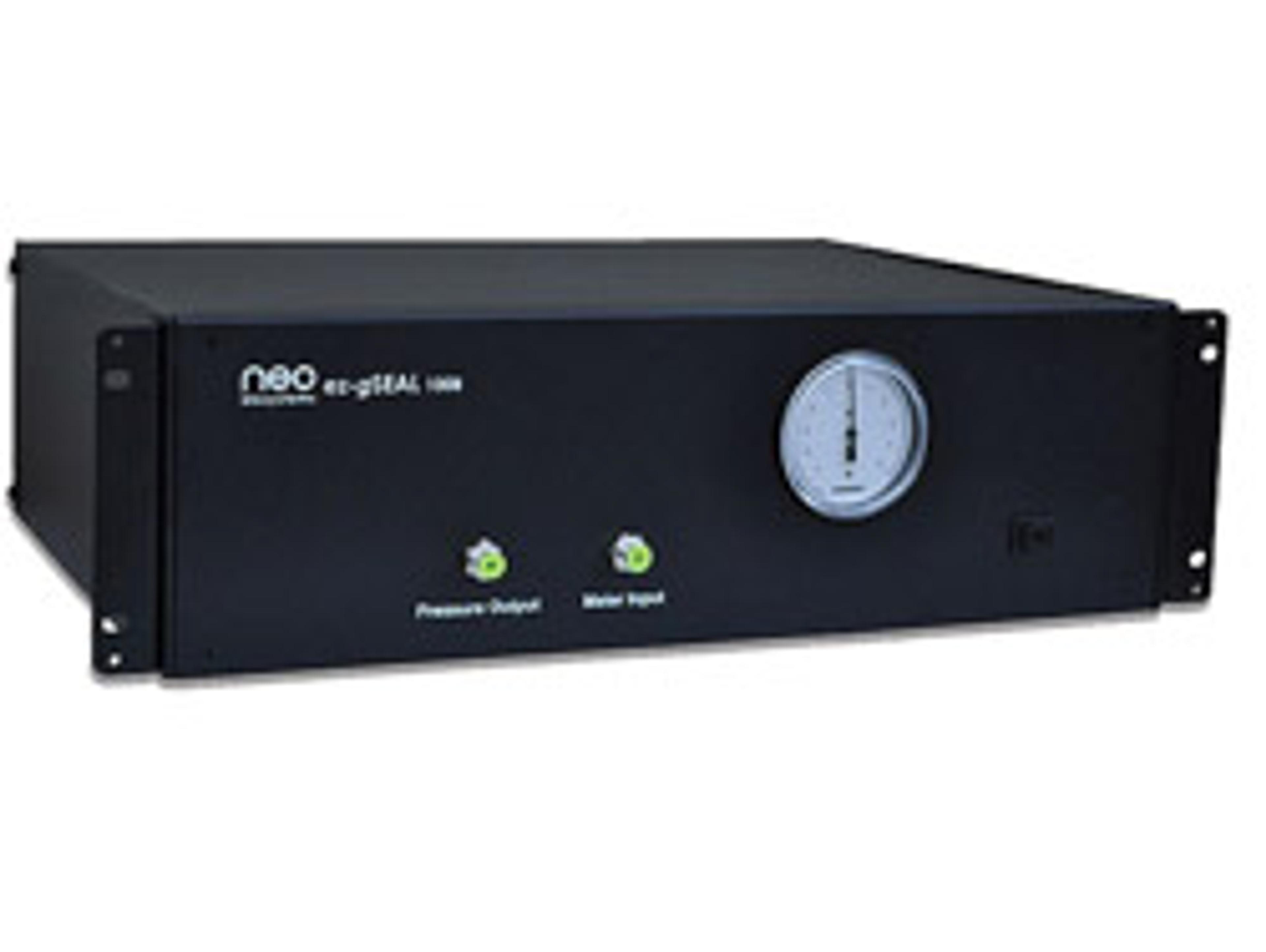

The ez-gSEAL 100A pressure controller is designed mainly for automated patch clamping, but it can also be used for many other applications. With the ez-gSEAL pressure controller, patch clamping becomes as easy as a click of a button. You may use it with our ezPATCH 100A smart manipulator, PatchMAX 100A automated patch clamp system, ChannelMAX 100A Mini automated dual clamp system or ChannelMAX 100A Twin automated quad clamp sy…

The QPatch HT and QPatch HTX enable high-throughput patch clamping with 48 parallel recording sites. Automated patch clamping with the same high quality afforded by conventional patch clamping can now be applied in all phases of ion channel drug discovery, including primary screening of focused compound libraries. • Up to 7000 data points per day • Screening and compound profiling • Multi-hole and single-hole mode (QPatch HT…
