Spark® Multimode Microplate Reader
Increase your productivity for advanced research and drug discovery with Spark, the first multimode microplate reader with integrated cooling.
Receive your quote directly from the manufacturer.
Wonderful instrument
Protein, nucleic acid, cell culture
I love the versatility of this instrument. The cell culture capabilities and spectrophotometer measurements are easy to set up and use.
Review Date: 8 Jul 2025 | Tecan
Not for bacterial cell counting, great for everything else!
Fluorometric DNA Concentration, bacterial enumeration, metabolic assay
We had originally hoped to use this for bacterial enumerations but our cells were too small to work well for this application. Instead, we've used it for metabolite assays and for Quant-It dsDNA quantification. The software is easy to use and it's easy to create new methods as needed. I love being able to use plates for DNA quantification rather than individual tubes in a fluorometer. Overall, the instrument works great. It's just unfortunate that we can't use it for cell counting.
Review Date: 7 Dec 2023 | Tecan
Tecan Spark is the plate reader of choice for luminescence- and BRET-based assays.
Analysis of small molecule-receptor engagement and intracellular signaling
The Tecan Spark multimode plate reader provides high quality data for various luminescence and BRET-based assays. Compared to other plate readers in the same price range, the Spark appears to have the highest sensitivity for photon detection, which is a tremendous advantage when using less bright luciferases such as firefly, click beetle or Renilla luciferase. With very bright emitters such as nano-luciferase, the system quickly reaches the upper detection limit and the assay parameters (substrate concentration, transfection amount) must be adjusted, which can save reagents in the long run. Overall, the results are of very good quality and reproducible. The control of the plate reader is intuitive, but the interface could be improved by making the error messages more understandable. The company's after-sales service is good and responses are fast.
Review Date: 1 Sept 2023 | Tecan
Tecan journal 2017
Anisotropy and bacteria growth
Easy to use growth bacteria with te-cool system.
Review Date: 27 Mar 2023 | Tecan

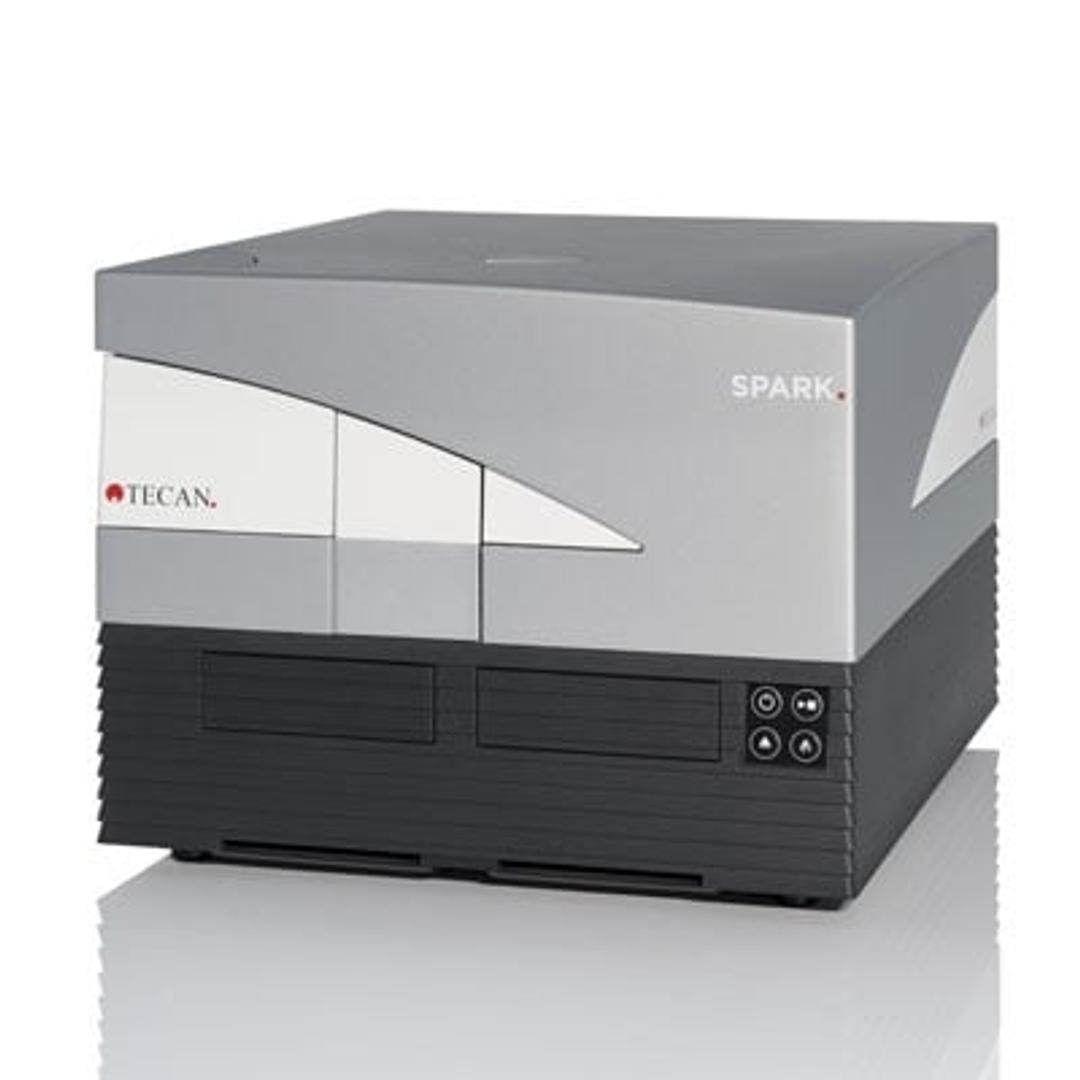

Increase your productivity for advanced research and drug discovery with Spark, the first multimode microplate reader with integrated cooling. This freely configurable system gives researchers access to new techniques and features designed to enhance and streamline biochemical and cell-based workflows.
The Spark multimode microplate reader provides tailor-made solutions to suit virtually any drug discovery or advanced life sciences research application. Developed with cell-based assays in mind, it offers a host of software and hardware features, including a unique Te-Cool™ cooling module that delivers total temperature control, even below ambient.
At the heart of the instrument are Spark’s unique Fusion Optics, which combine the flexibility of monochromators with the sensitivity of filters. Designed to improve sensitivity and increase throughput, this set-up allows on-the-fly measurements, increasing productivity without compromising on data quality. This option features the latest generation QuadX Monochromators™ and dichroic mirrors which, combined with variable bandwidth selection and full wavelength flexibility, provide exceptional measurement performance and speed. This is complemented by a patent-pending High Speed Monochromator, which allows complete absorbance scans – from 200 to 1,000 nm – in under five seconds; the speed of a diode array is combined with the precision and flexibility of a monochromator, offering wide-ranging and detailed spectra with unsurpassed wavelength accuracy for rapid DNA and protein quantification.
Reliable results are dependent on a stable temperature. For most readers, the specified minimum temperature inside the measurement chamber is defined as a few degrees above ambient. This can vary significantly depending on the time of year and location, affecting your results. Temperature gradients can also occur across a microplate with many readers, leading to poor precision and variability. Spark’s innovative Te-Cool cooling module provides complete temperature control between 18 and 42 °C allowing you to maintain your specified temperature for long periods of time, for accurate and reliable results.

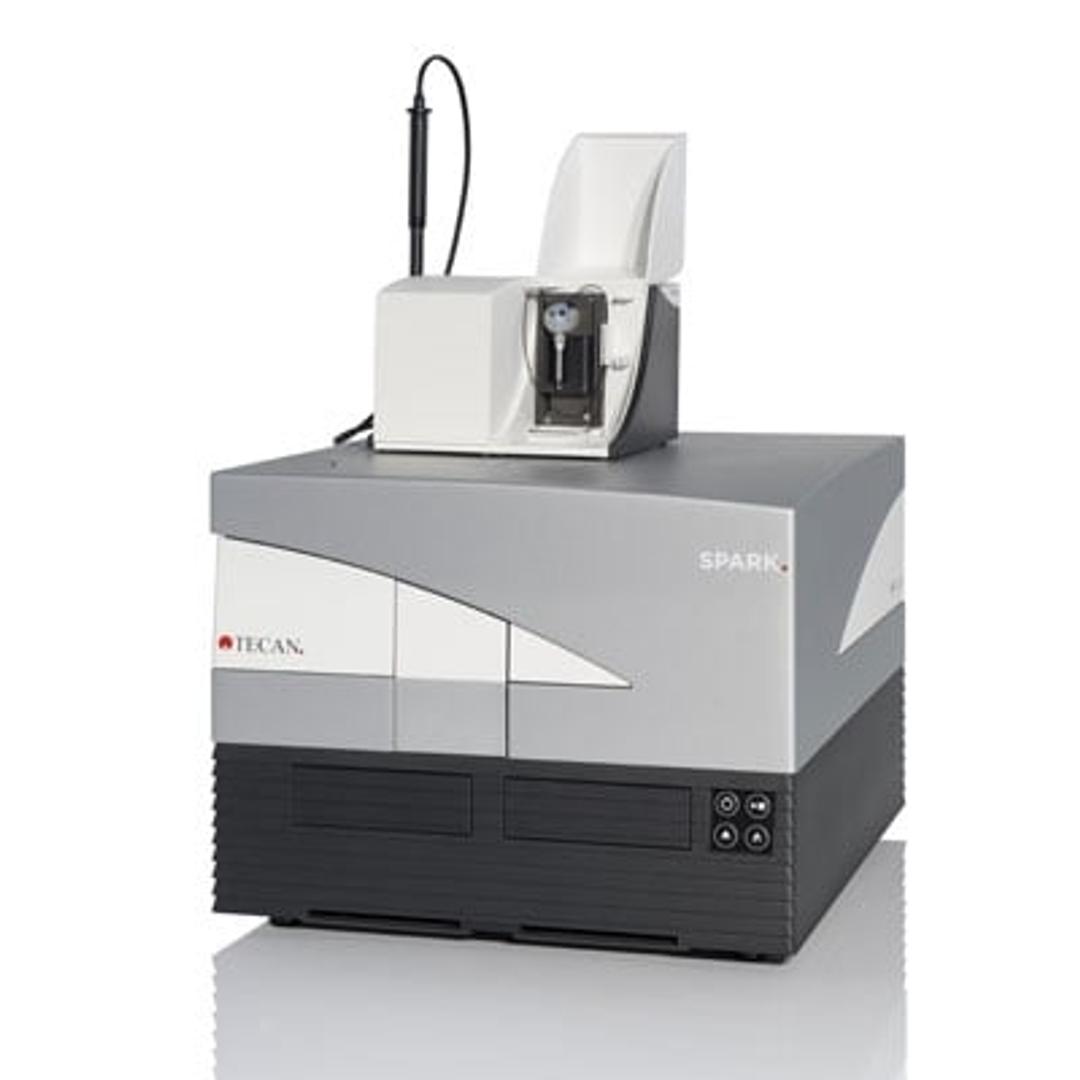

The Te-Cool cooling module complements Spark’s range of advanced features – including precise regulation of environmental conditions, built-in cell counting and viability assessment, and automated imaging and confluence measurements – designed to simplify your protocols and enable long-term, walkaway experiments. Productivity and reproducibility are further improved by the addition of a patented Humidity Cassette to provide evaporation protection for any SLAS-format microplate, with automated lid handling to precisely balance gas exchange and minimize the risk of contamination. These new options – combined with the ability to read up to 1,536-well microplates – ensure there is a Spark configuration to increase the productivity of your lab, both today and in the future.
The Spark multimode microplate reader offers walkaway:
- reagent dispensing
- temperature control, including the Te-Cool cooling module
- fluorescence
- fluorescence resonance energy transfer (FRET)
- time-resolved fluorescence (TRF)
- fluorescence polarization (FP)
- absorbance
- DNA/protein quantification
- luminescence (flash and glow)
- luminescence scanning
- multicolor luminescence
- cell counting
- live-cell imaging and in-well confluence assessment
- cell incubation
Spark is for Research Use Only. Not for use in diagnostic procedures.
