Non-Destructive Techniques Radiographic Testing (RT) Products & Reviews

The intelligent diffractometer

Highly accurate, fast compact XRD system

The Heidelberg Retina Tomograph (HRT) is based on fast and reproducable topographic measurements. The glaucoma module premium edition provides high-resolution two- and three-dimensional images of the optic nerve head, the retina module of the retina and the rostock cornea module of the cornea.  Rostock Cornea Module With the Rostock Cornea Module (RCM) the HRT becomes a high-resolution confocal cornea microscope to recei…

Optimize cement production

HD - CR 35 NDT, A film replacement technology, Computed Radiography (CR), is actually a digital radiography technique that uses what we called an Image Plate (IP) made of phosphor material to replace film as the imaging media. Like film the IP comes in various format and sizes and it is also flexible like film. After being exposure to radiation during x-ray or gramma ray inspection, these IPs are being scanned by the CR scanne…

With the SENTINEL™Vision HR Digital Radiography System you get state-of-the art imaging quality in a portable, durable and affordable package. Specifically designed for inspections both in the field and in the lab, SENTINEL™Vision HR is a computed radiography system that uses flexible phosphor imaging plates instead of film to create high resolution images. Its rugged portability makes it ideal to use in field conditions, and…

SENTINEL™ Model 880 Delta, Elite and Omega source projectors are portable, lightweight and compact industrial radiographic exposure devices. The patented device body consists of a titanium ‘S’ tube and cast depleted uranium (DU) shield contained within a 300 series stainless steel tube with stainless steel discs welded at each end forming a cylinder shaped housing. The discs are recessed to provide protection for the rear moun…

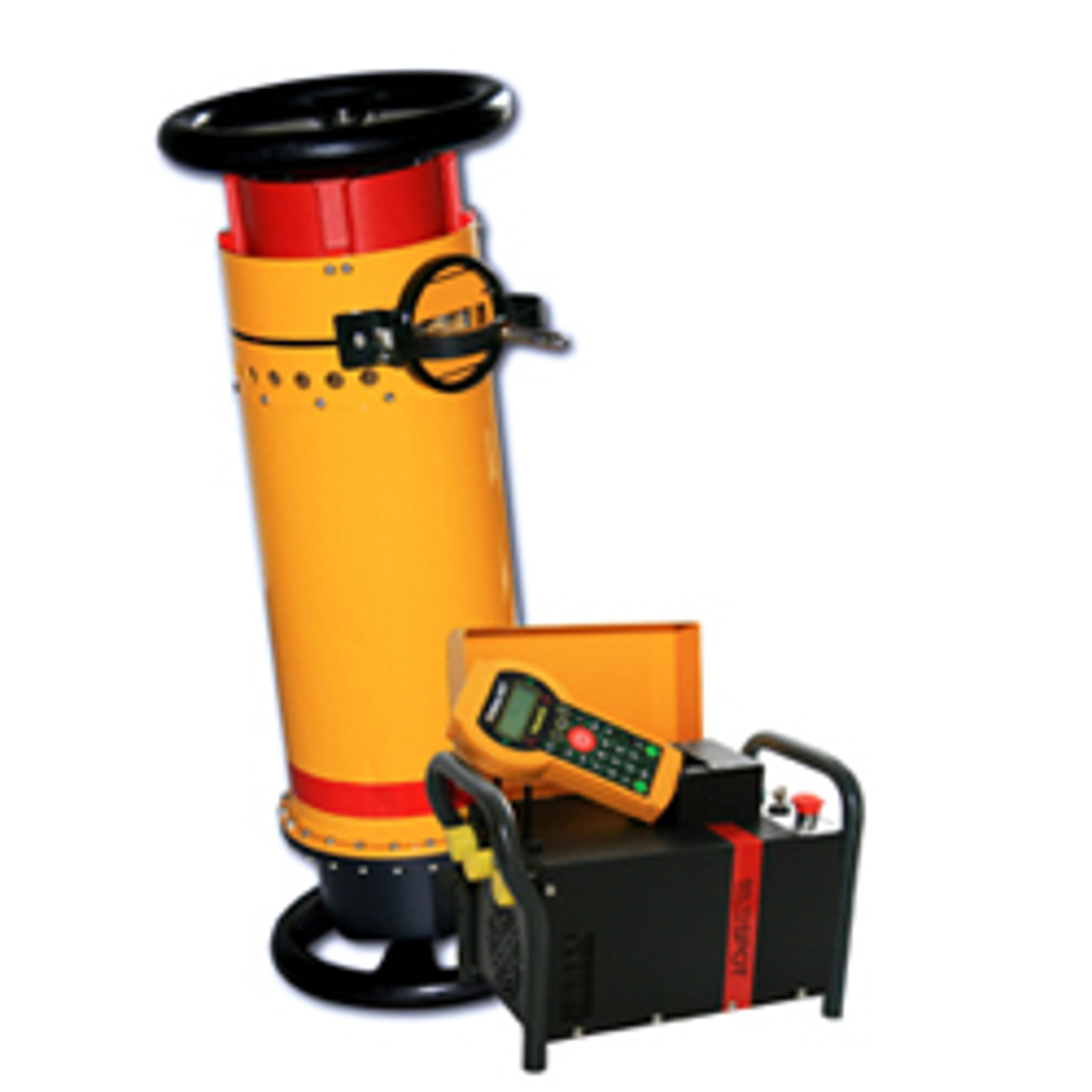

The BALTOSPOT Series is comprised of three divisions of directional and panoramic x-ray generators with varying specifications corresponding to different NDT applications, field activities and budgets. The CERAM x-ray generators are pulsed wave units available in maximum capacities of 235 and 300kV. They are directional tubes which contain ceramic tubeheads with a copper external anode and a beryllium window.Features Port…

MicroXCT-200 - High Resolution and Contrast; Large Sample Size and Shape Flexibility; Automated Multiple Point Imaging. The MicroXCT-200 is a versatile 3D X-ray imaging system suited for non-destructive analysis of a large variety of samples. Its unique design allows for high resolution imaging for relatively large samples. Its detectors are tailored to image both high and low absorption materials. The MicroXCT-200 provides t…

UltraXRM-L200 - Synchrotron-like 3D Imaging in a Laboratory System. The UltraXRM-L200 is the only lab based ultra-high resolution CT scanner for 3D visualization of microscopic sample volumes. Xradia's precision X-ray focusing optics deliver a resolution as fine as 50 nm, seamlessly extending the capabilities of X-ray CT beyond those of conventional scanners. Integrated Zernike phase contrast imaging enhances the visibility o…

VersaXRM-410 - High Resolution and Contrast; Industry-leading 4D and In Situ Capabilities for Flexible Sample Sizes and Types.The VersaXRM-410 encompasses all the benefits of the VersaXRM family of 3D X-ray microscopes for computed tomography. The VersaXRM-410 is uniquely designed to bridge cost/performance standards for a broad range of scientific research. It offers Resolution at a Distance (RaaD™), proprietary Xradia techno…

VersaXRM-500 - Industry's largest working distance at highest resolution. The Xradia VersaXRM™ family is the latest generation of 3D X-ray microscopy (XRM) solutions optimized for non-destructive micro tomography. The VersaXRM-500 advances industry and science with a versatile combination of world-leading resolution and contrast, sample flexibility and the large working distance required to address emerging research challen…

UltraXRM-S200/220 - Energy-tunable, Ultra-high Resolution 3D X-ray Microscopy For Synchrotron Facilities.The UltraXRM-S series harnesses the powerful X-ray beams produced by synchrotron radiation facilities for ultra-high resolution 3D X-ray microscopy. Combined with the superior X-ray imaging technology developed for the laboratory-based UltraXRM-L, the UltraXRM-S series is capable of producing 3D images with 30 nm resolution…

UltraSPX-200/220 - Ultra-high Resolution Analytical Scanning-Probe X-ray Microscope for Synchrotron Facilities. The UltraSPX-S series takes advantage of the coherent X-ray beams available at modern synchrotron light sources to bring established X-ray analytical techniques, such as X-ray fluorescence, spectroscopy, and diffraction down to the nanometer scale. Xradia's high-performance proprietary X-ray optics employed in the U…

Xradia 810 Ultra increases the throughput of nanoscale, three-dimensional X-ray imaging by up to a factor of 10. This innovative X-ray microscope (XRM) operates at 5.4 keV, a lower energy that delivers better contrast and image quality for medium to low Z samples and other materials used throughout science and industry. Better contrast enables higher-quality tomographies to be acquired an order of magnitude faster while achie…

Stationary sample, high-speed X-ray CT scanner.

Rigaku’s Radioflex EGM2 series directional radiographic testing systems are tried and tested. They are characterized by their reliability and robustness. Their rugged design caters to the rigors of in-field testing, while their proven dependability ensures they are ready to go when you are. These systems are built to last, while the high-performance ceramic X-ray tubes will provide years of operation.
