Hitachi High Technologies America, Inc. Products & Reviews

The Chromaster Analytical HPLC System from Hitachi has established new limits in Performance, Ease-of-Use, and Robustness. Innovative low-pressure gradient mode, “High Frequent Mode,” and Hitachi’s proprietary real-time feedback control system greatly suppress liquid pulsation resulting in unparalleled retention time and gradient reproducibility. The Hitachi Chromaster is also available with 60 MPa maximum pressure.

The S-3400N is the World Class Variable Pressure SEM The S-3400N offers advances in automation including full filament saturation and “no touch” objective aperture alignment. The New Analytical Chamber Provides • Segment, Ultra Thin, Backscattered Electron Detector Capable of TV Rate Observation • Fully Automated with One Button Automatic "No Touch" Objective Aperture Alignment • Turbo Molecular Pump (TMP) Provides a Fast and…

It's simplicity enables all users, even those new to Electron Microscopy (EM), to image their samples and to obtain high quality, high resolution images within minutes. No special sample preparation such as coating with metal films is required for hydrated, oily or non-conducting samples, and TM3000 is easy to use like a digital camera. The TM3000 TableTop Microscope has been developed to cover the widest range of industrial a…

The SU3500 Scanning Electron Microscope features innovative electron optics and signal detection systems affording unparalleled imaging and analytical performance. Designed with intuitive logic, the new user-friendly GUI provides comprehensive image observation and display functions. Engineered for a wide range of applications, including biological specimens and advanced materials, the SU3500 is sure to be the workhorse micros…

The H-9500 is a high performance TEM featuring a single crystal LaB6 electron source. This allows 0.102 nm crystal lattice resolution and 0.18 nm point to point to be achieved. The instrument features a low magnification operating mode of x200 to x500 and a high magnification mode with zoom from x1000 to x1,500,000. Fully PC-controlled, the instrument has an icon-driven user interface and is designed for very fast operation. W…

The SU6600 is Hitachi's latest high resolution analytical field emission SEM with Variable Pressure technology allowing observation and analysis of any type of wet, oily or dirty sample. Advanced Schottky electron gun technology combined with our patented ADAPT, automated differential aperture system, yields greater than 200nA of current; ten times the current other manufacturers can provide with thermal emissions. The large a…

The Hitachi F-2700 Fluorescence Spectrophotometer is available in two configurations depending on your laboratory’s needs: stand-alone and PC-controlled. As a stand-alone unit using the built-in keyboard and LCD screen, it is ideal for teaching and routine measurements. Adding PC control expands its capabilities to advanced applications in biotech research and materials research. With a LCD screen, it is ideal for teaching and…

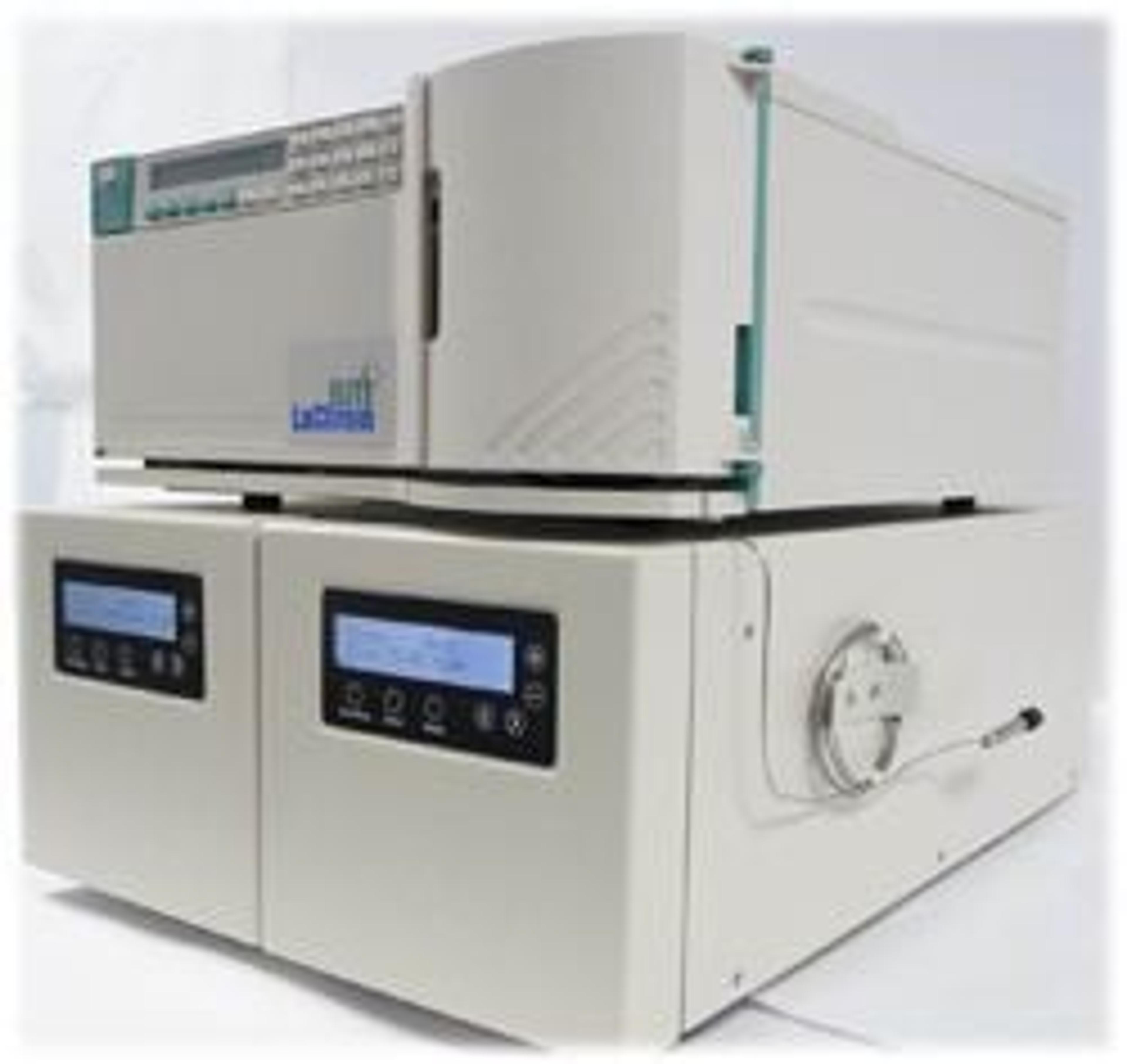

The Hitachi Prep-36 Preparative HPLC System provides high performance, outstanding accuracy, and precision at a low cost. It supports a flexible flow rate range up to 36 mL/min with automated reproducible batch separations The Prep-36 system can be configured with the Prep-36 solvent delivery system, LaChrom Elite® L-2200 autosampler or manual injector, a wide variety of LaChrom Elite® detectors, and an integrated fraction col…

The S-3700N features an ultra large specimen chamber and stage to allow observation of specimens at diameters up to 300mm. Hitachi Variable Pressure SEM (VP-SEM) series have been received with high reputation from customers around the world. They feature low vacuum observation method (6 – 270 Pa) which enables observation of non-conductive samples like electronic components, and water containing samples such as cultured cells,…

With the addition of the highly flexible and versatile 3100 Mass Detector, Hitachi’s LaChrom Elite ® HPLC System further solidifies its position as the leader in chromatographic analysis for a wide range of applications. The LaChrom Elite® HPLC system, in combination with the Waters® 3100 Mass Detector, provides unmatched selectivity, sensitivity and throughput for improved laboratory productivity. Features Seamless inte…

The LaChromUltra® U-HPLC System, in combination with the TQ Detector, provides unmatched quantitative analysis and characterization capabilities. Features • Seamless integration of the U-HPLC system and the TQ Detector with Empower™ 2 control • Performs SIR, MRM, Product, Precursor, and Neutral Loss Scans on the U-HPLC timescale • Equipped with dual ESI/APCI source as standard, with optional APPI available • 20 ms polarity swi…

Hitachi offers the sleek HT7700 for maximum performance and productivity. The radical design incorporates the ergonomics and user friendliness of a SEM with advanced automation, resolution and analytical capabilities of a TEM. Imaging is completely digital – you won’t find a viewing or projector chamber - and Hitachi’s EMIP-SP database software automatically catalogues your single frame and montaged images. The turbopump evacu…

The HD-2700 is the top-of-the-range STEM featuring optional spherical aberration correction developed in collaboration with CEOS GmbH ot offer significantly improved resolution and analytical sensitivity. By correcting the spherical aberration resolution of less than 0.1 nm can be achieved in dark-field STEM mode. The Cs corrector is field retrofittable for any HD-2700 system that was originally ordered without the Cs correcto…

The HF-3300 300 kV FE TEM is a powerful analytical and high resolution TEM/STEM with inherent high beam brightness, high coherence, high energy resolution, and Hitachi unique functions! Features • High energy-resolution and high beam current • Parallel nanobeam electron diffraction for high precision stress analysis • Spatially-resolved EELS for instant multipoint compositional and chemical binding state analyses • Double-bipr…

The SU8000 Series is Hitachi's latest product family of ultra-high performance, semi-in-lens SEM with cold-field emission. The series was developed in response to the growing demand for robust, affordable SEM application solutions. Image performance in this series is optimized with the latest generation of Hitachi's patented super ExB in-lens detection for energy filtering, charge suppression, and contrast control; affording u…

The Hitachi NB5000 FIB-SEM integrates a superior 40kV Ga ion FIB column with an ultra-high-resolution Schottky FE-SEM. Like all our products, all components have been designed with consideration of the total system performance. This results in exceptional stability, milling performance and resolution, allowing e.g. automated mill-and-monitor operations for 3D reconstructions with slicing steps down to 5nm. NB5000 incorporate…

The Hitachi IM4000 Ar Ion Milling System offers two milling configurations available in a single instrument: cross section cutting and wide-area sample surface fine polishing. The new Ar ion gun design, with increased milling rate (300µm/h for Si), affords reduced cross section processing times by as much as 65%. For added convenience, the IM4000 sample stage unit can be removed for specimen setting and cross section edge fine…

The Hitachi HPLC Primaide is designed for long-term, stable operation, and features both high reliability and great durability. It offers tremendous capability for everyday analysis.Based on over 50 years of experience in the development and production of HPLC systems, Hitachi proudly introduces the Primaide. Make the most of your analytical equipment with Hitachi as the “Prime Aide” in your lab! Modules • Primaide 1110 Pump w…

The SU9000 Ultra High Resolution FE-SEM is Hitachi's new premium UHR FE-SEM. It features unique electron optics, with the sample positioned inside a gap of the split objective lens pole piece. This so-called true inlens concept - combined with the next generation of HITACHI's cold field emission technology - guarantees the highest possible imaging resolution (0.4nm @ 30kV, 1.2nm @ 1kV) and stability. To make this resolving pow…

Ultra-high Resolution Scanning Electron Microscope SU8200 Series - Innovative Cold Field Emission Gun with Unmatched Resolution and Beam Stability This novel CFE gun employs a Hitachi patented "Mild flashing" technique and a new vacuum system which greatly minimizes gas molecule deposition on the emitter tip. The emitter always operates in a "clean" state, and emission current and beam stability are significantly improved. The…

The FlexSEM 1000 VP-SEM combines innovative technological features with an intuitive interface, to deliver adaptability and flexibility in a powerful, automated, lab-friendly package. Cutting-edge technology and circuitry provides unrivaled imaging performance, even in variable-pressure environments, a feature previously only available in a full-sized SEM. This SEM runs on clean energy for an economical analytical tool, withou…

Use of long-life xenon flash lamp Light source is guaranteed for seven years*1 resulting in lower operation cost Double-beam optical system Ensures extended periods of data stability compared with the single-beam optical system. Best-of-class levels*2 of resolution of 1 nm have been achieved. Operation by use of tablet terminals or PC, Simple and intuitive user interface Remote control through wireless com…

Automated titrator with up to four available titration stations

Designed to meet the challenges of today's laboratory environment, fast results and demanding workload, LaChrom Elite® couples automated tasks with innovative design. Control by Empower™ 2 software facilitates regulatory compliance Features Innovation • System synchronization, Pump-Autosampler Synchronization (PASS) This unique feature means that each injection occurs at exactly the same point in every pump cycle ensuring the…
