Fluid Metering Inc. Products & Reviews
25
FMI pioneered the first patented valveless rotating and reciprocating piston metering pump concept and has been delivering pumping excellence and precise fluid control for over 50 years. Fluid Metering Inc. is located about 30 miles from New York City in Syosset, Long Island, New York.
Selected Filters:
Chloritrol Pump
Fluid Metering Inc.The Chloritirol® is the solution for accurate maintenance-free Sodium and Calcium Hypochlorite injection. This patented technology is field tested and proven for high and low demand applications. This unique valvelss duplex pump design includes a high pressure pump for hypochlorite injection, and a pump for gas/vapor removal, which eliminates airlock and prime loss
PDS100 Programmable Dispensing System
Fluid Metering Inc.The PDS-100 is a Programmable Dispensing System which uses precision stepper motors to control FMI “Q” and “RH” pump models including STQP, STQ, STH, & STRH in all piston sizes. The FMI pumps are integrally mounted to the programmable controller. The controller contains the stepper motors and driver electronics, and is a rugged anodized aluminum design. Several single and dual pump configurations are available including a dua…
Model PiP Precision Dilutor
Fluid Metering Inc.PiP Pumps micro π-petter - Pipetting, Syringing and Diluting Ideal for repetitive and volumetric dispensing of acids, solvents and aqueous solutions. Model "PiP" Precision Dilutor Features: FMI's unique low dead-volume pump heads, and synchronous motor drives. Can act as a single shot dispenser using the hand/foot switch or as a single metering pump in the continuous mode. Using a combination of forwar…
Model QBG Low Current DC
Fluid Metering Inc.Ideal for Analyzers, Environmental Sampling & Injection, & Low Current Remote Battery Operation Model QBG Low Current DC Features: Ideal for extended 12/24 volt battery operation in remote locations. They are rated 60 RPM at 12 VDC and 120 RPM at 24 VDC. One Moving Part - NO VALVES! Low Current DC Operation Self Priming Patented CeramPump® Design
Model V300 Controller
Fluid Metering Inc.The V300 is Ideal for R&D, Laboratory, Process, Test Stands, and Production. FMI's V300 is a variable stroke rate metering pump system that drives FMI pumps from 5% to 100% of their rated flow with 0.1% adjustability. Typical speed rates for the direct drive system are 90 to 1800 strokes per minute. The system repeatability is 1%.The V300 comprised of a 90 volt DC pump drive module (PDM) with integrally mounted pump head modu…

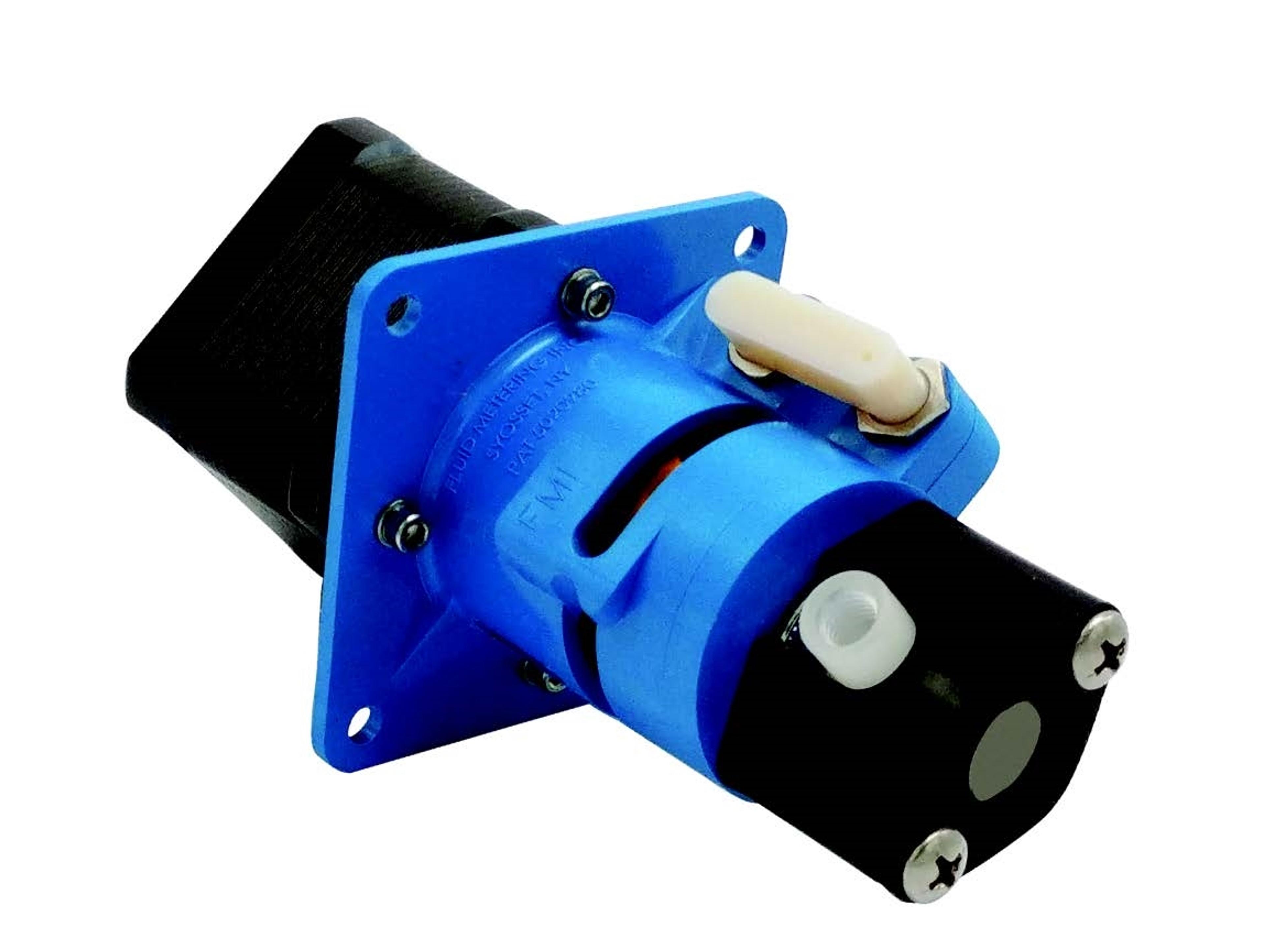

Sub-Microliter Dispensing Pump
Fluid Metering Inc.The Sub-1 Pump capabale of sub-microliter adjustments/dispensing is ideal for medical diagnostic, biomedical and analytical instrumentation
BLDC Brushless DC Pump
Fluid Metering Inc.The BLDC Valveless Waste Transfer Pump ideal for waste transfer applications in clinical chemistry analyzers, dialysis equipment and analytical instrumentation.

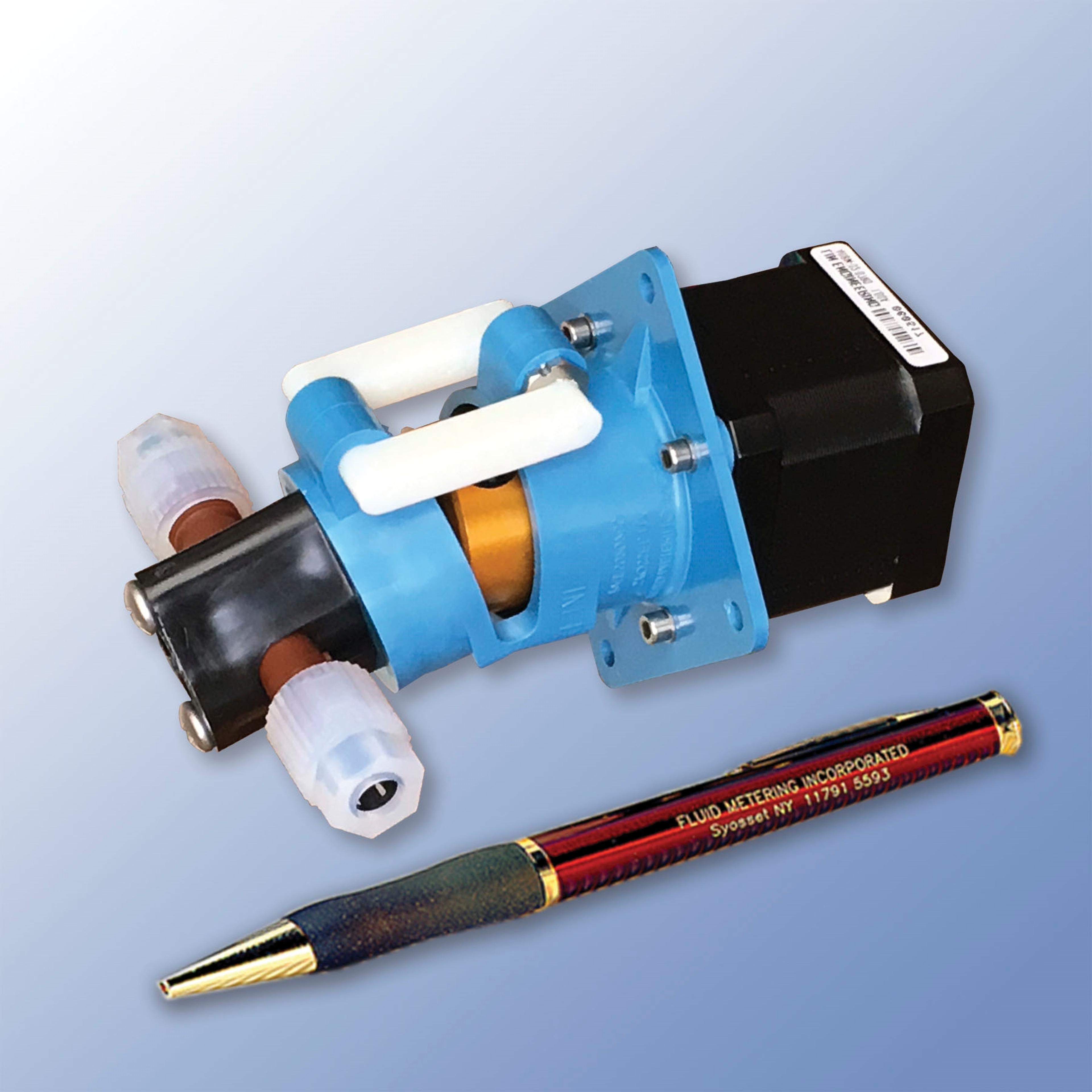

STF1-9 Valveless Dispensing Pump
Fluid Metering Inc.The STF1-9 Valveless 400µL Dispensing Pump precision fluid control for Medical and Analytical Instrumentation
