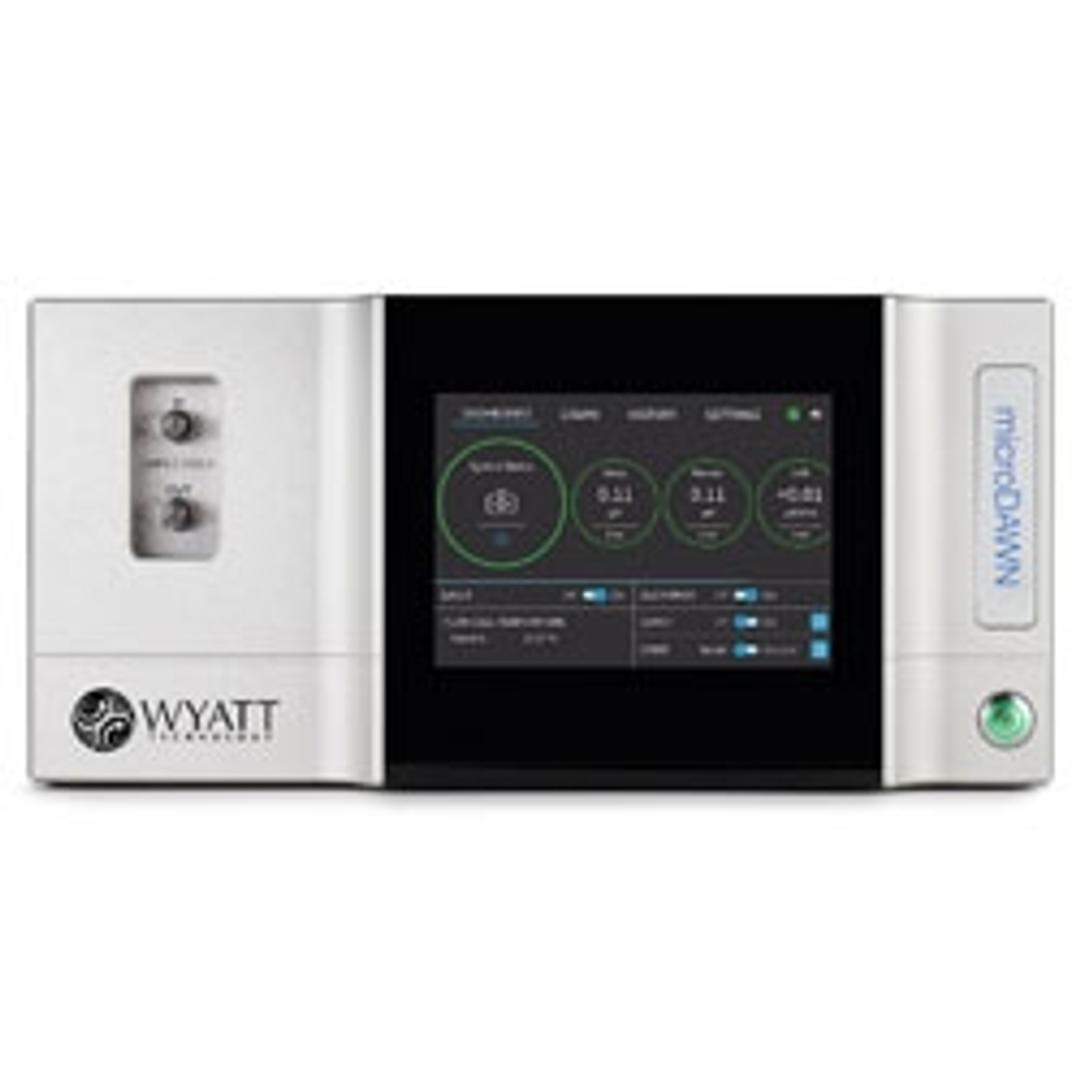

microDAWN™

The microDAWN™ is the only multi-angle light scattering (MALS) detector that can be coupled to any UHPLC-SEC system without loss of resolution. UHP-SEC-MALS determines absolute molecular weight, size and conformation of polymers, peptides, and proteins directly, without resorting to column calibration or reference standards.

Features:

• Sensitivity: 3.5 ng of 100 kDa polystyrene in THF or 70 ng of BSA in PBS, loaded on a 4.6 x 150 mm UHPLC-SEC column.
• Range of molar mass: 200 Da to 10 MDa (may vary with molecular composition, size or solvent)
• Range of rms radius R g : 10 nm to 50 nm
• Range of hydrodynamic radius: 0.5 nm to 30 nm (with optional Wyatt QELS™ embedded dynamic light scattering module) Integrated ultrasonic flow cell cleaning module
• Software: ASTRA^® chromatography software provides comprehensive analyses and user-friendly features including HPLC control, “One-click MW” and user-designed reports.
• Optional 21CFR11 support for GMP.

Applications:

• Proteins: absolute molar mass, size and stoichiometry of monomers, oligomers, complexes, aggregates and fragments.
• Glycoproteins, detergent-solubilized membrane proteins, PEGylated proteins, protein-polysaccharide and protein-DNA complexes; heme-containing proteins that absorb laser light
• Protein-protein and protein-nucleic acid interactions
• Polymers: absolute molar mass and size (distributions and moments), conformation, and branching
• Linear or branched polymers, co-polymers
• Most aqueous and organic solvents
