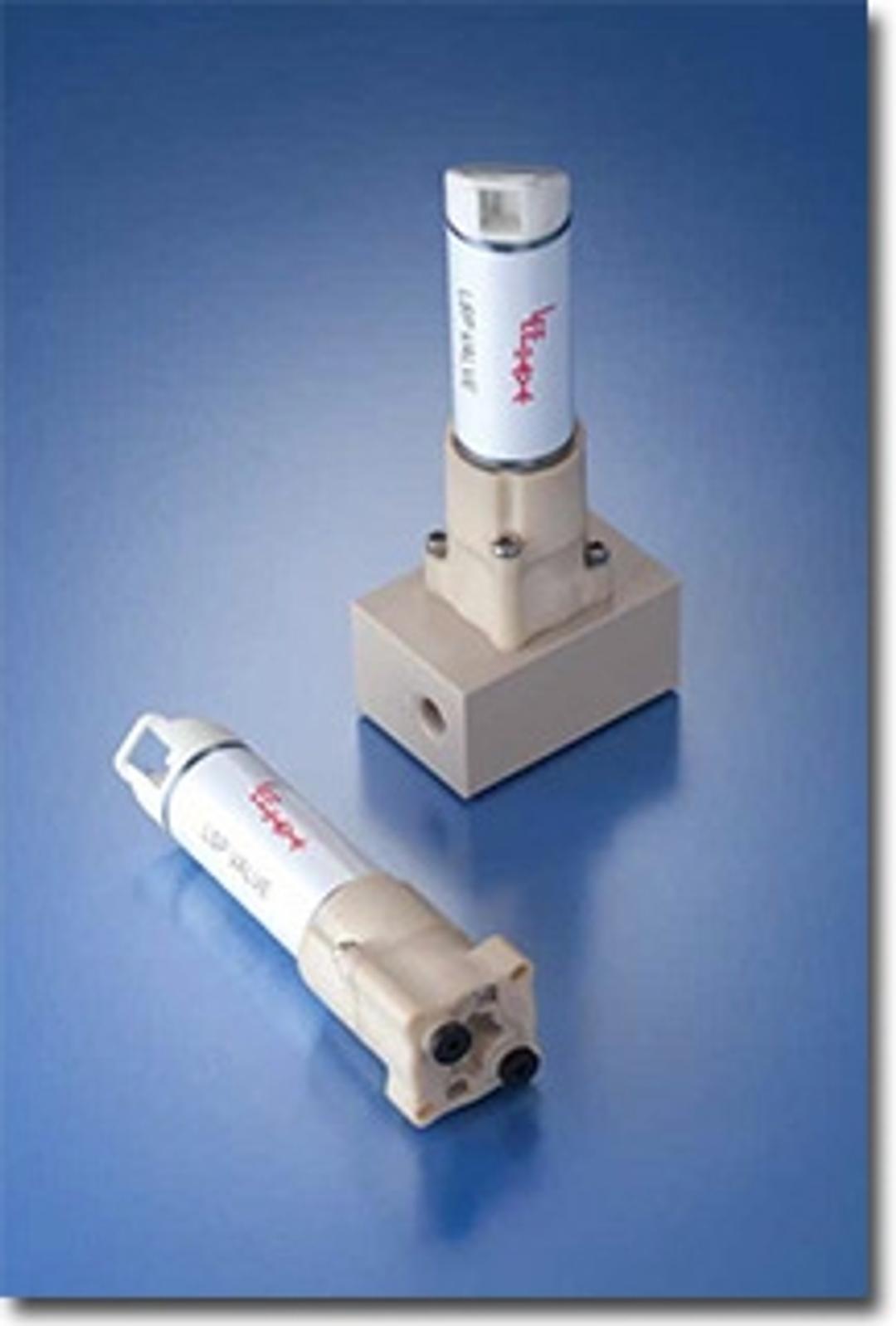

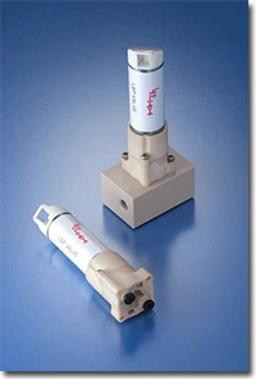

LSP Series Solenoid Valves
The LSP Series are 2-way, normally closed, high flow solenoid valves for applications requiring a particle tolerant flow path. The LSP Series valve is a 2-way, manifold mounted, normally closed design featuring a full bore flow path. The full bore allows unimpeded high flow and is very tolerant of fluids that have particles and solids. The design minimizes clogging and leakage in applications such as waste and drain lines.…
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
The LSP Series are 2-way, normally closed, high flow solenoid valves for applications requiring a particle tolerant flow path.
The LSP Series valve is a 2-way, manifold mounted, normally closed design featuring a full bore flow path. The full bore allows unimpeded high flow and is very tolerant of fluids that have particles and solids. The design minimizes clogging and leakage in applications such as waste and drain lines.
The flow path is a single wetted material incorporating flanged ports, thus eliminating the need for gaskets during mounting.
- Flow: 300 Lohms nominal
- Zero dead (unswept) volume
- Working pressure: 15 psig
- Response time: 30 ms
- Cycle life: 10 million cycles on clean water (minimum)
- Power consumption: 1.6 W
- Wetted material: FKM
