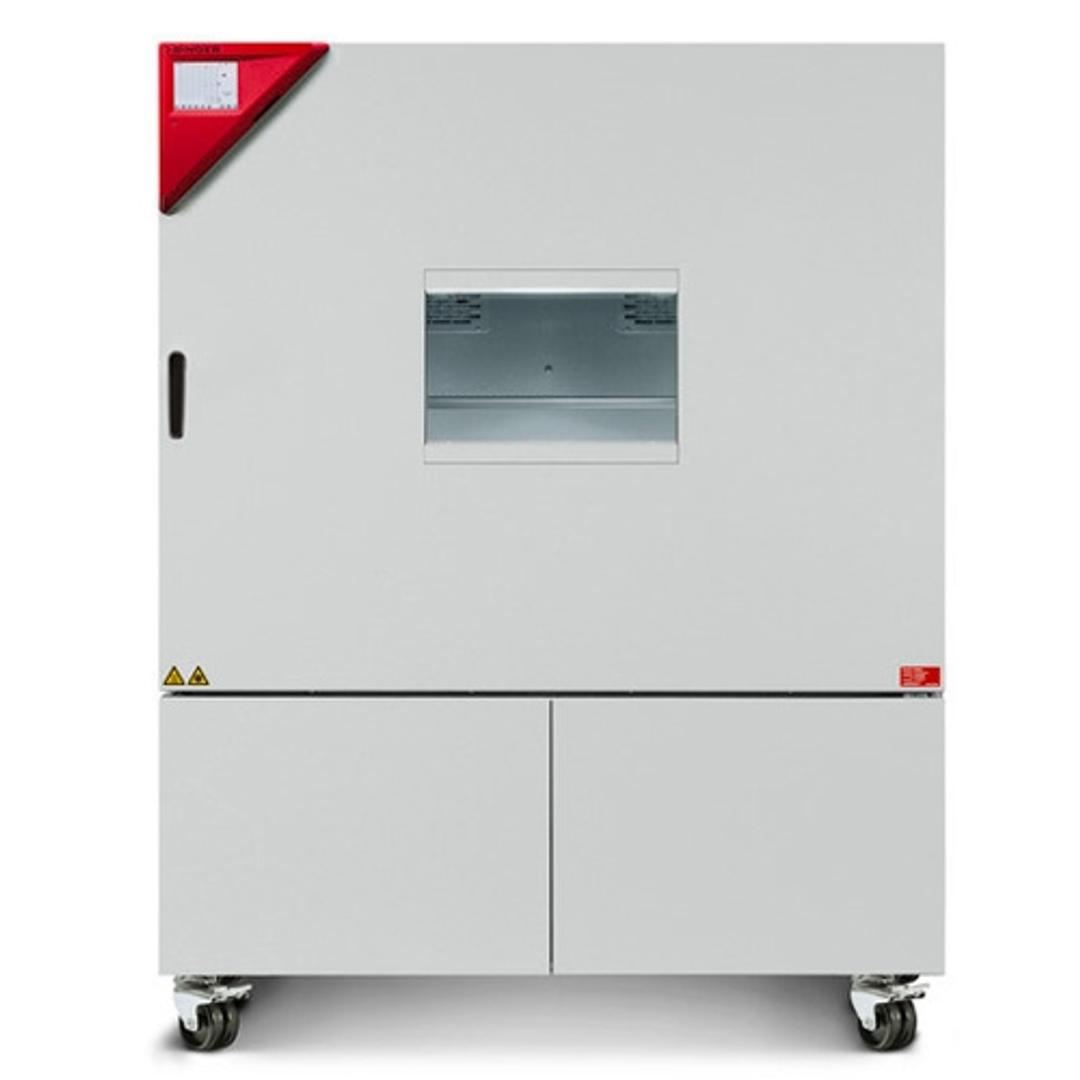

Dynamic Climate Chambers - MKFT Series

The BINDER MKFT series environmental simulation chamber for low temperature alternating climate profiles is the specialist for dynamic alternating climate change between -70 °C and 180 °C. Large performance reserves and rapid cooling make the MKFT environmental simulation chamber the high-end product for complex standards-based climate tests.

• Temperature range: -70 °C to 180 °C
• Humidity range: 10 % to 98 % RH
• Integrated water-storage tank, 20 liters
• 4 zero-voltage relay contacts that can be activated via MCS controller
• APT.line™ preheating chamber technology
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting
• Humidity regulation with capacitative humidity sensor and vapor humidification
• BINDER APT-COM™ 3 Basic Edition communication software
• Troubleshooting system with visual and audible alarms
• Controller with time-segment programming
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• Access port with silicone plug (Models 115, 240: 50 mm, left)
• 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
• 4 castors, two with brakes
• Computer interface: Ethernet
• 230 V power socket on the right-side control panel
• Display via color LCD monitor
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• Door heating
• Alarm notification in the event of insufficient water in fresh water tank
• 1 stainless steel rack
• Complete safety connection kit for water supply and drainage, up to 1 m in height
• Inner chamber made of stainless steel
• Pt 100 temperature sensor
• Thermal insulation using PUR foam
• CFC-free refrigerants R-404A and R-23
• Cooling with compressor cooling unit
• Fin evaporator
