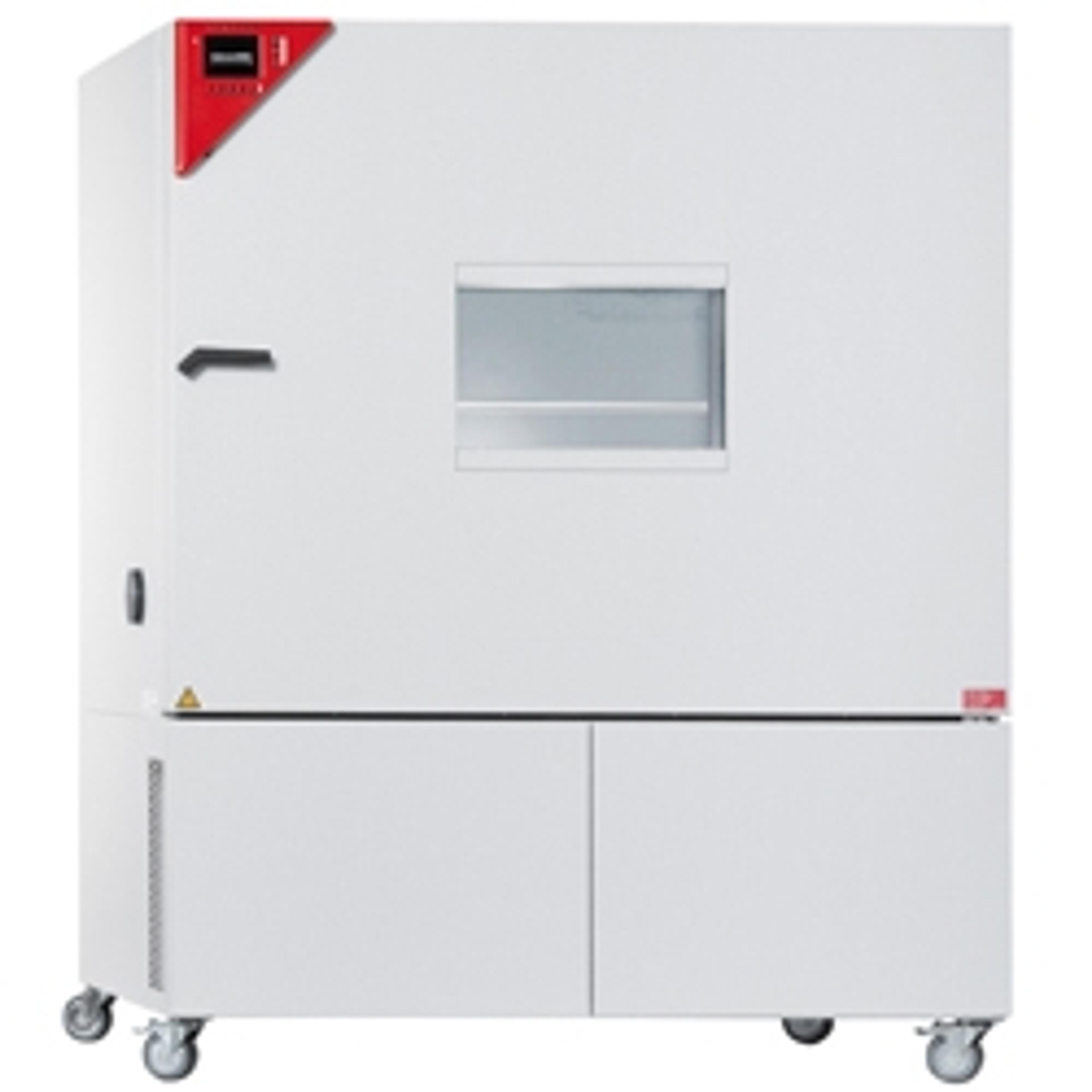

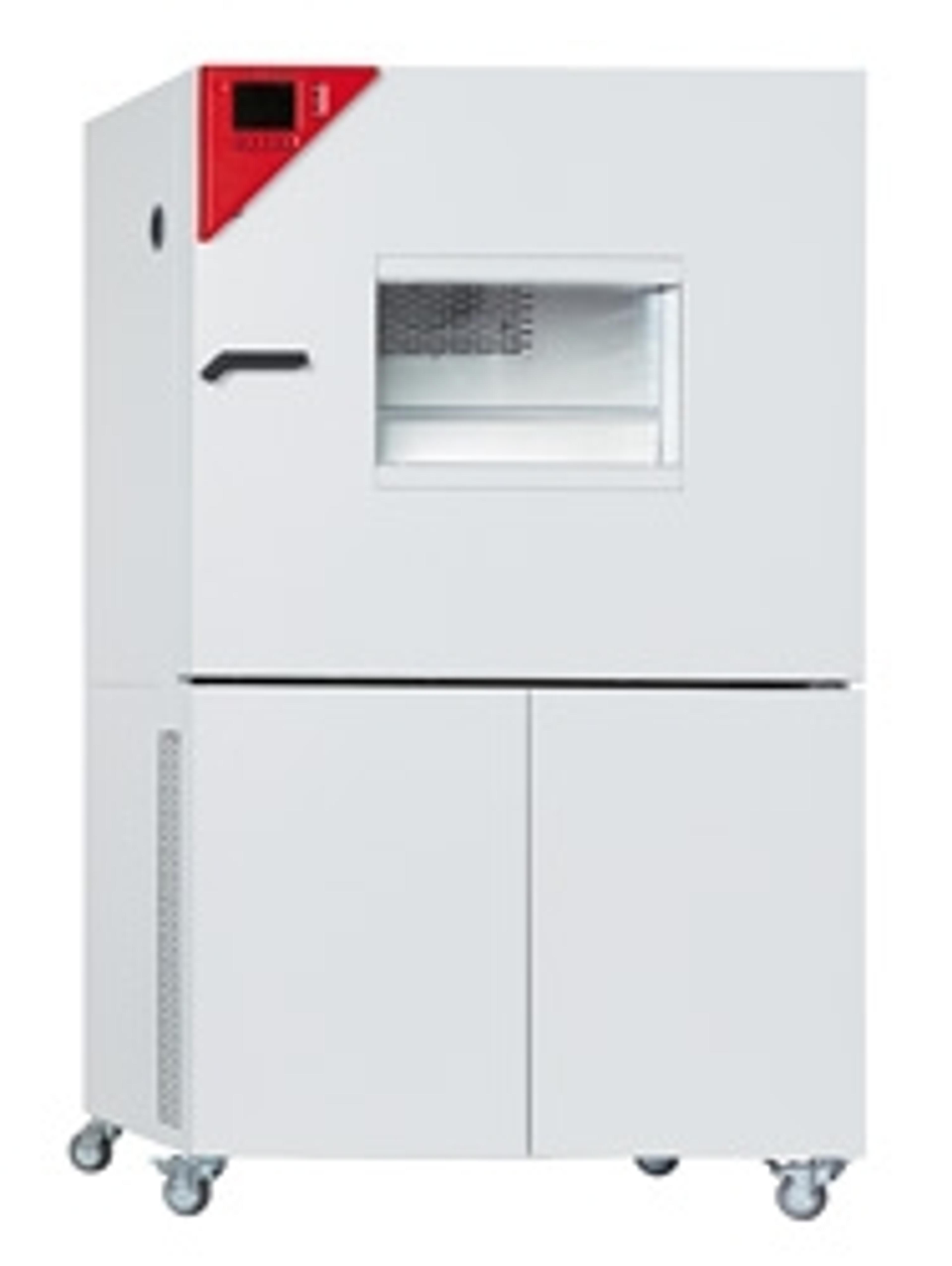

Dynamic Climate Chambers - MKF Series

A BINDER MKF series environmental simulation chamber is ideally suited for any cold and heat testing based on current temperature and climate testing methods according to DIN and IEC standards. The comprehensive standard equipment for this environmental simulation chamber ensures ease of operation.

• Temperature range: -40 °C to 180 °C
• Humidity range: 10 % to 98 % RH
• Integrated water-storage tank, 20 liters (Models 115, 240, 720)
• 4 zero-voltage relay contacts that can be activated via MCS controller
• 1 stainless steel rack
• APT.line™ preheating chamber technology
• Intuitive touchscreen controller with time-segment and real-time programming with internal data recording (Model 56)
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting
• Humidity regulation with capacitative humidity sensor and vapor humidification
• BINDER APT-COM™ 3 Basic Edition communication software
• Troubleshooting system with visual and audible alarms
• Access port with silicone plug (Models 56, 115, 240: 50 mm, left)
• 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
• 4 castors, two with brakes
• Computer interface: Ethernet
• 230 V power socket on the right-side control panel (Models 115, 240, 720)
• Display via color LCD monitor
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• Door heating
• Alarm notification in the event of insufficient water in fresh water tank (Models 115, 240, 720)
• Complete safety connection kit for water supply and drainage, up to 1 m height
• BINDER test confirmation
• Inner chamber made of stainless steel
• Pt 100 temperature sensor
• Thermal insulation using PUR foam
• CFC-free refrigerant R-452A
• Cooling with compressor cooling unit
• Fin evaporator
