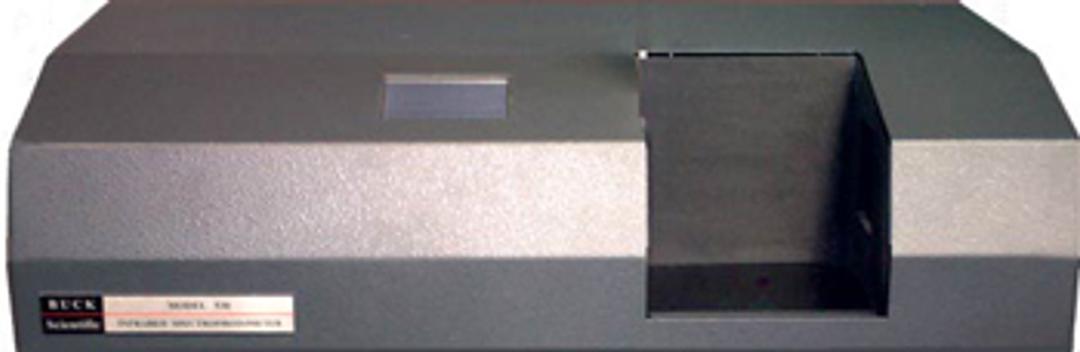

Buck M530 Quick-Scan Infrared Spectrophotometer

The M530 uses a high energy optical design and a sensitive DLATGS detector for excellent resolution over the full infrared range. Maximum performance is achieved with a fast scanning microprocessor driven mechanism.

The 530 can communicate with external programs using either USB or RS-232 connections. The new design uses stronger stepping motors providing faster completion of Go To commands. The Model 530 display is a touch screen. There are no buttons or switches on the face of the instrument. Touching the display screen accesses all of the instruments standalone functions. Spectra can be viewed on the instruments display screen during scans. This allows running survey scans without using a companion computer. Simplified standalone reporting provides tools for presenting measurement values as ratios in either Percent Transmission of Absorbance scales.

The M530 uses a high energy optical design and a sensitive DLATGS detector for excellent resolution over the full infrared range. Maximum performance is achieved with a fast scanning mechanism that is completely microprocessor driven. Every unit is manufactured to meet the highest quality standards. The straight forward mechanical and optical design has a reputation for low maintenance and is easily serviceable with quality affordable parts. The system is intrinsically rugged and performs well in even the harshest environments.

The M530 is the easiest IR spectrophotometer to operate and maintain. Touchscreen controls set all instrument parameters for operation and rapid data collection. Advanced self-help menus are user friendly even on complex applications. The unit does not require purge of moisture and CO2 prior to use, allowing for fast and easy sample analysis.


Features:

• New touchscreen accesses all instrument stand alone functions.
• New display allows you to view spectra and to run survey scans without a companion computer.
• Display also reports measurement values as ratios in either percent transmission or absorbance scales.
• USB & RS232 output for computer control & data acquisition.
• Simple to use with minimal operator training.
• The new design uses stronger stepping motors, providing faster completion of GO TO commands.
• Free installation and operation DVD & free technical support.
• A wide variety of sampling accessories for solid, liquid and gas phase analyses.
