The MS1 chamber has been designed for use with fixed-stage upright-type microscopes. The particular feature of this chamber is the profiled contour that allows the microscope objective to sweep across the preparation when changing magnification, without having to adjust the focusing. In this way the specimen and any pre-positioned microelectrodes remain par-focal. This is particularly useful for confocal microscopy where it is…

Dovetail slide for easy removal. Manual micromanipulator with 10mm travel in all 4 axes. 5µm resolution. Ideal for stimulator applications.

Ball Bearing Manipulator with 38mm coarse and 5mm travel in the X-axis. 5µm resolution. Ideal for applications requiring multiple manipulators in one quadrant.Overall footprint dimensions: 5.33 x 2.36"

Ball Bearing Manipulator with lead screw design. Rotatable mounting base and probe holder. 22mm travel in the X-axis. 10µm resolution. Ideal for axial cell probing.

Smooth motion and instant response to hand adjustments makes theMX630 and the MX610 ideal for long term intracellular recordings. Thewater based hydraulic mechanism has a thermal expansion two to three times less than that of oil based systems, thus minimizing drift to less than 2 µm per hour at constant temperatures.MX600 series hydraulic micromanipulators have crossed roller bearings in each axis. This along with a metal bel…

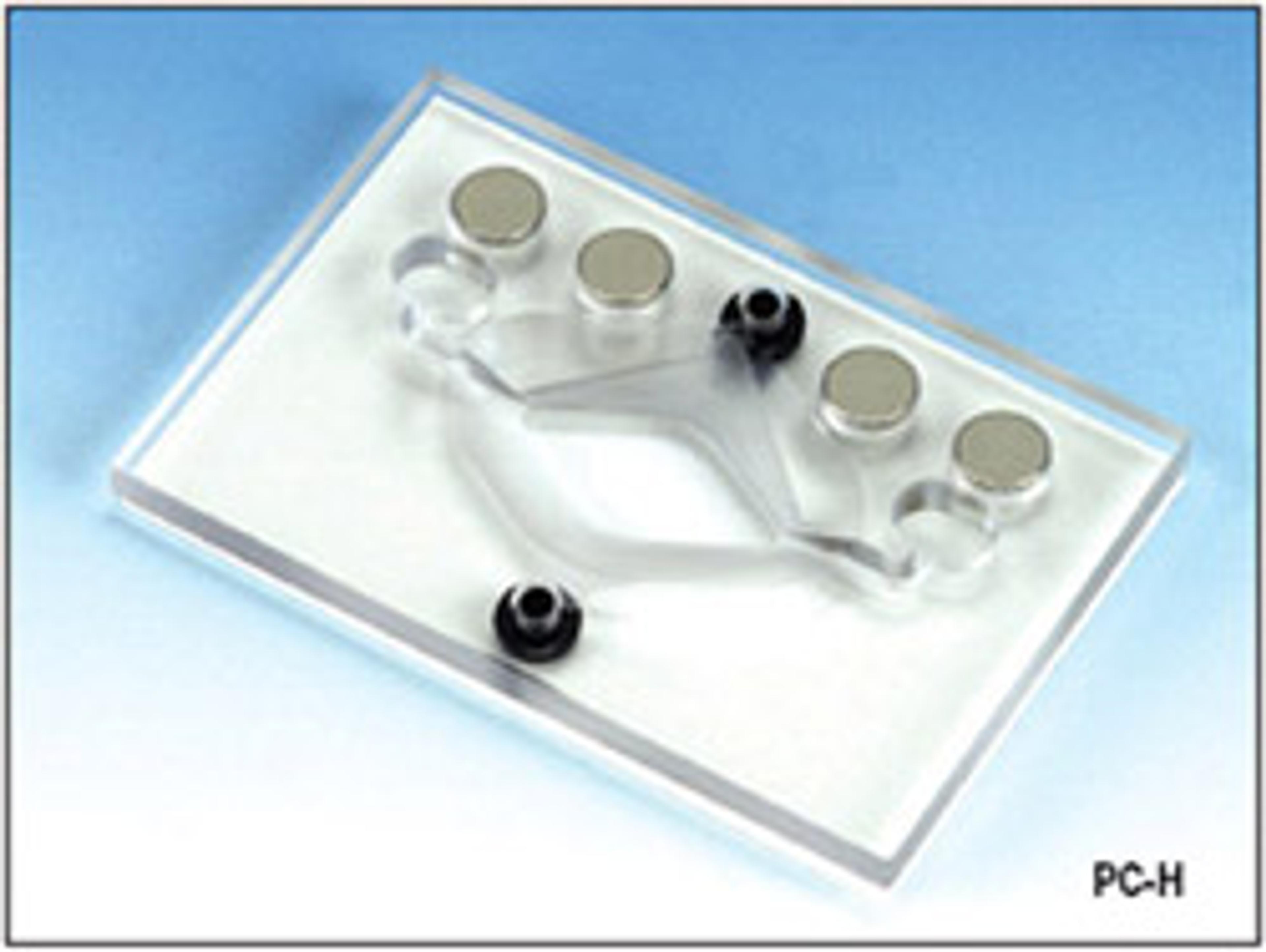

The PC series perfusion chambers have embedded magnets that are conveniently located to retain perfusion plumbing and ground plugs. They are designed to fit into our 8090c fixed stage platform. A standard 22 mm cover slip is used to create the chamber bottom that is attached with vacuum grease, silicon, or parafilm (use a heat gun to gently melt the parafilm). There are two plastic retention screws for added security. Both ope…

The piezo solution switcher uses a high-speed piezo flexure guided nanopositioner to move pipette tips in solution switching applications. It can move an electrode tip across a 5 µm thick theta glass septum. This system is ideal for measuring cellular response to drugs or other elements in solution. Piezo movement can be triggered by either input from common recording amplifier equipment or by Siskiyou software via a LabVIEW™…

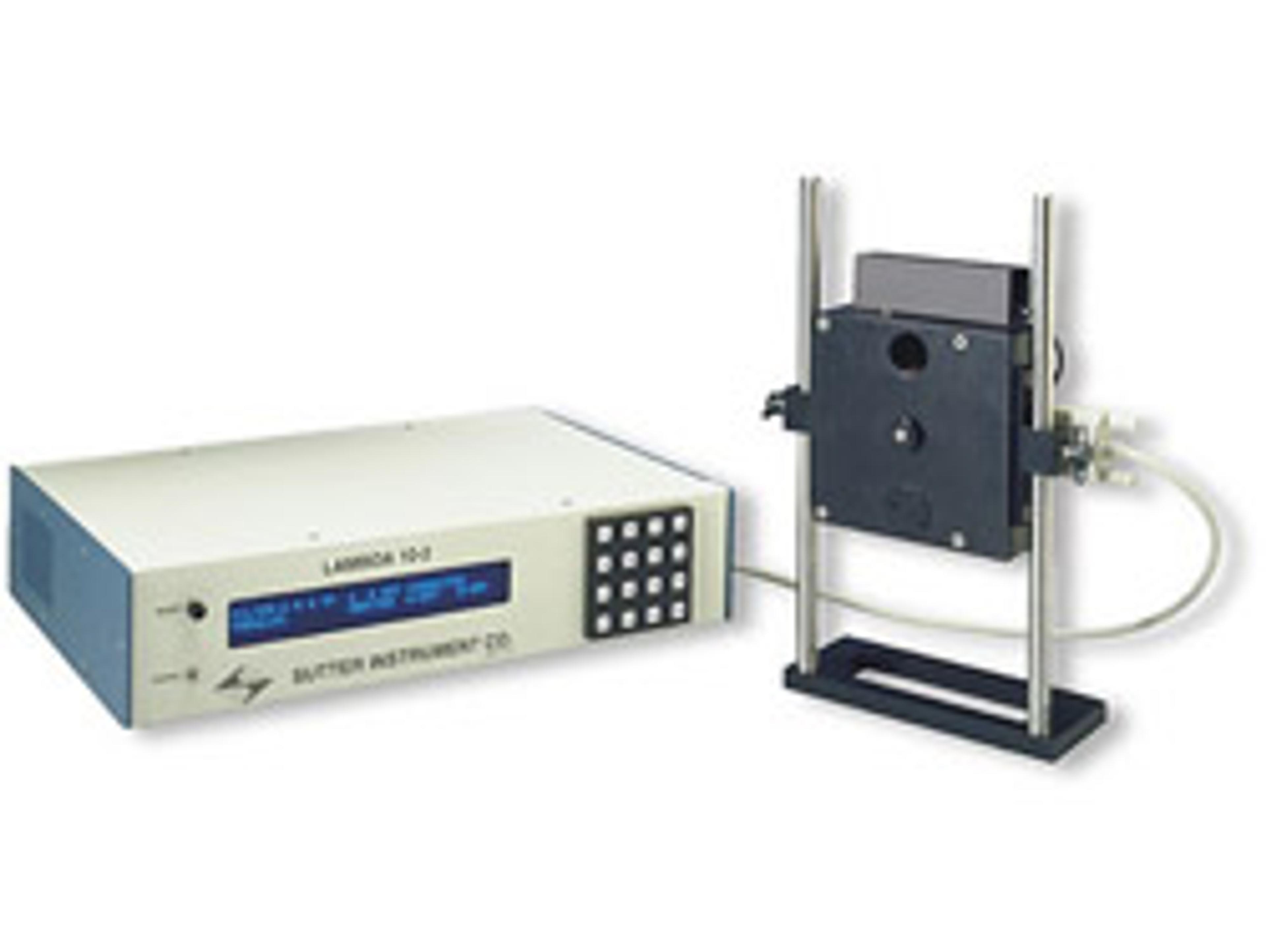

The Lambda 10-2 is a microprocessor controlled, high speed filter wheel. Its impressive speed coupled with exceptionally smooth operation make the Lambda 10-2 ideal for research applications involving fluorescence microscopy, ratio imaging, spectrophotometry, visual physiology, or any application requiring rapid and accurate aperture positioning.The Lambda 10-2 controller which has both serial and parallel interfaces will driv…

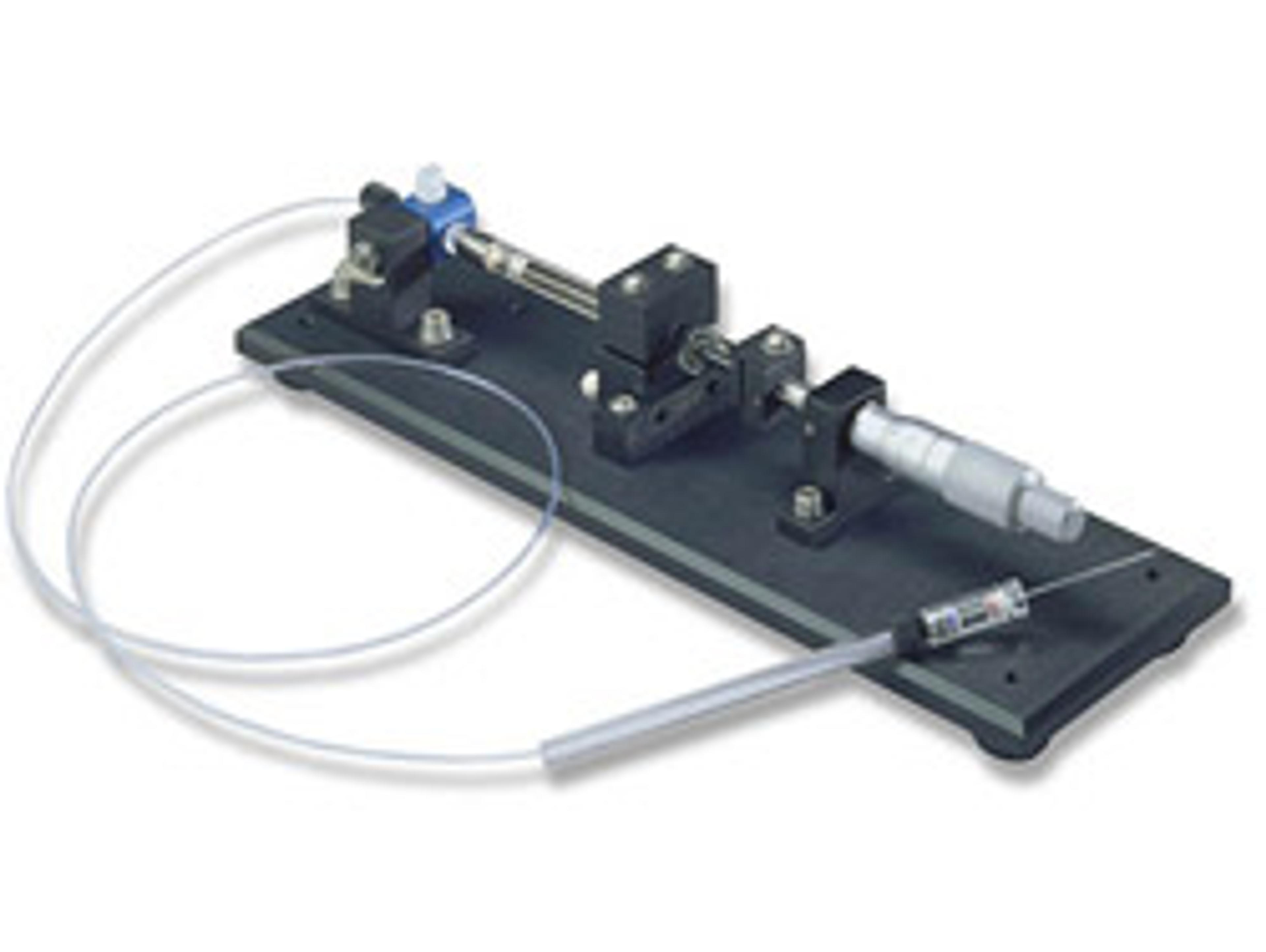

The Manual Injector is a manual syringe driver for pneumatic or hydraulic control of injection needles or holding pipettes. It is suitable for injecting volumes in the nanoliter to microliter range. It is also widely used as a fluid control device for IVF applications requiring sensitive manual control of the displacement of microneedle contents. The system is constructed from the highest quality parts. The base assembly is bl…

This motorized micromanipulator with a rack mount controller unit is affordable yet offers advanced features found in manipulators costing thousands more. Custom engineered stepping motors, precision cross-roller bearing slides and proprietary worm gear capstan drives form the basis of the watch-like mechanical system. The controller provides power to the stage motors with a quiet linear power supply to minimize electrical noi…

The MP-265/M "narrow format" mechanical is designed especially for patch-slice manipulator systems that require more than 2 or 3 pipettes. Coupled with our multi-manipulator controller, MPC-200, users have the ability to easily build up multi-manipulator MPC-365 systems for positioning multiple recording and stimulating pipettes.Resolution: Minimal microstep size is 62.5 nanometers per microstep. Display has single micron reso…

The flagship in Sutter's line of precision micromanipulators, the motorized MP-285 is affordable yet offers advanced features found in manipulators costing thousands more. Custom engineered stepping motors, precision cross-roller bearing slides and proprietary worm gear capstan drives form the basis of the watch-like mechanical system. The controller provides power to the stage motors with a quiet linear power supply to minimi…

The MT-1000 is a microscope translator, fixed-stage and manipulator platform for moving optical pathway electrophysiology. The modular design of the MT-1000 features freestanding columns that provide rock solid mounting for the tissue recording chamber and multiple micromanipulators, such as the MP-285 or MP-225. The columns are positioned around a movable table that provides X-Y translation of the optical pathway in order to…

Developed through years of experience with the Flaming/Brown style micropipette pullers and infused with leading edge technology, Sutter is proud to introduce the P-1000 micropipette puller. The most obvious new feature is the color touchscreen display that provides an intuitive and full-featured interface. F E A T U R E S > P - 1 0 0 0Color touch-screen interfaceSafe heat mode to protect and extend filament lifePipette Cookbo…

A significant advance in the technology of fabrication of micropipettes, optical fiber probes, and nanospray tips, is offered with the P-2000 micropipette puller. The P-2000 integrates a CO2 laser-based heat source with the technology derived from our extensive experience with conventional pullers. This system offers capabilities unmatched by other pullers. While the P-2000 is suitable for working with most conventional glasse…

The Model P-30 vertical micropipette puller is designed for the fabrication of basic micropipettes and patch-type pipettes. It will pull micropipettes with tip diameters as small as 0.3µm and moderate taper lengths (10 to 15mm). By using an included patching attachment, the P-30 will pull the standard double pull patch-type pipette. Used with thin wall glass capillaries, it will generate pipettes or needles suitable for microi…

The Model P-97 micropipette puller is the latest generation of the Flaming/ Brown type puller for fabrication of micropipettes, patch pipettes and microinjection needles. While retaining many of the features on the Model P-87, the P-97 offers improvements in mechanical, electronic and software design. The result is better control of the pulling process and a higher degree of reproducibility. The P-97 combines a proven mechanic…

TMC’s Active Vibration Isolation Table features state-of-the-art vibration isolation performance. By integrating our new Compact Sub-Hertz Pendulum Isolation System (CSP®) for horizontal vibration reduction with our new PEPS-VX® Inertial Damper for vertical vibration cancellation, we have produced a superior, ultra-quiet table in six degrees-of-freedom. This advanced isolation technology may be combined with TMC optical tables…

63-500 Series High-Performance Lab Air TableIsolator with 4 in. CleanTop II, 1/4-20 on 1 in. spacing 36 in. x 48in., 900x1200 mmFeatures: • Gimbal Piston™ Isolators• Thin-Wall Rolling Diaphragms • All-aluminum height control valves• Internal Piston Travel Restraints• Tiebar Gussets• Rugged Built in leveling feet• Superior Table TopsTMC 63-500 Series High-Performance Lab Tables provide an excellent vibration-free working surfac…

64 Series TableTop™ PlatformsImperial Clean Top II with 4 isolators36in.x30in. (145lb) or (66kg)Effectively isolates floor vibration with unprecedented ease, portability and economy.Features: •Gimbal Piston Isolators•Top plates available in granite, stainless steel laminate and CleanTop® II steel honeycomb breadboard•Attaches to tops up to 2 1/8" thick•Isolators cradle platform for stability•Isolator housings protect isolators…

Another in a long line of TMC innovations, the 75 Series Breadboards minimize both weight and cost. A patented manufacturing technique allows us to form countersunk, tapped holes in a thin top skin of stainless steel. The holes are not drilled or punched, but fabricated in a way that effectively “thickens” the skin in a small ring around the threads. No inserts are used and the tapped holes are 3 threads deep.These tops have r…
