Raptor™ ARC-18 LC Columns

The Raptor™ ARC-18 column is made specifically for high-throughput, low–sample prep LC-MS/MS applications. A well-balanced retention profile offers better detection and integration of large, multiclass analyte lists, and steric protection helps this SPP column endure the harsh, low-pH mobile phases needed for mass spec without sacrificing retention or peak quality.

0.0/5.0

|0 Reviews|Be the first to review this product

Request Pricing

Receive your quote directly from the manufacturer.

Ease of Use

After Sales Service

Value for Money

Be the first to leave a review

Description

Description
News & Articles

The Raptor™ ARC-18 column is made specifically for high-throughput, low–sample prep LC-MS/MS applications. A well-balanced retention profile offers better detection and integration of large, multiclass analyte lists, and steric protection helps this SPP column endure the harsh, low-pH mobile phases needed for mass spec without sacrificing retention or peak quality.

Restek chemists became the first to combine the speed of superficially porous particles (also known as SPP or “core-shell” particles) with the resolution of highly selective USLC^® technology. This new breed of chromatographic column allows you to more easily achieve peak separation and faster analysis times without expensive UHPLC instrumentation.

Even after extended use in these low-pH (≤ 2.0) conditions, the sterically protected ARC-18 offers consistent retention, peak shape, and response for charged bases, neutral acids, small polar compounds, and more. For the rapid analysis of large, multiclass assays by LC-MS/MS, the Raptor™ ARC-18 truly is ahead of the curve.

Raptor™ ARC-18 LC Columns Features:

Ideal for high-throughput LC-MS/MS applications with minimal sample preparation.
Well-balanced retention profile for better detection and integration of large, multiclass analyte lists.
Sterically protected to endure low-pH mobile phases without sacrificing retention or peak quality.
Part of Restek's Raptor™ LC column line featuring SPP core-shell silica.

Column Details:

Chemistry: C18, UPS L1
Particle Size: 2.7 µm (SPP core-shell)
Pore Size: 90 Å
Length: 30, 50, 100, 150 mm
ID: 2.1, 3.0, 4.6 mm

Editorial ArticleEnvironmental

Chromatography revolutionizes PFAS analysis and detection

As concerns about PFAS health risks rise, advancements in chromatography are transforming our understanding of these persistent chemicals. Explore how innovative techniques enhance detection and analysis, paving the way for safer environments and better public health.

3 Mar 2025

Product Overview

Raptor™ ARC-18 LC Columns - Restek Corp. - Separations

Raptor™ ARC-18 LC Columns

0.0/5.0

Request Pricing

Links

Restek Corp.Manufacturer Website

Featured products

Request Quote for All Products

Stabilwax® (Fused Silica)
Restek Corp.
General purpose columns for FAMEs, flavor compounds, essential oils, solvents, xylene isomers, and US EPA Method 603 (acrolein/acrylonitrile). Resistant to oxidative damage. Temperature range: 40°C to 260°C. Equivalent to USP G14, G15, G16, G20, and G39 phases. The polar-deactivated surface tightly binds the Carbowax® polymer and increases thermal stability, relative to competitive columns.
(0)
Rxi®-5HT (Fused Silica) GC columns
Restek Corp.
Restek's new line of fused silica capillary GC columns - Rxi® columns - is now available!
(0)
Rxi®-1HT
Restek Corp.
3-IN-1 TECHNOLOGY with Rxi® columns
(0)

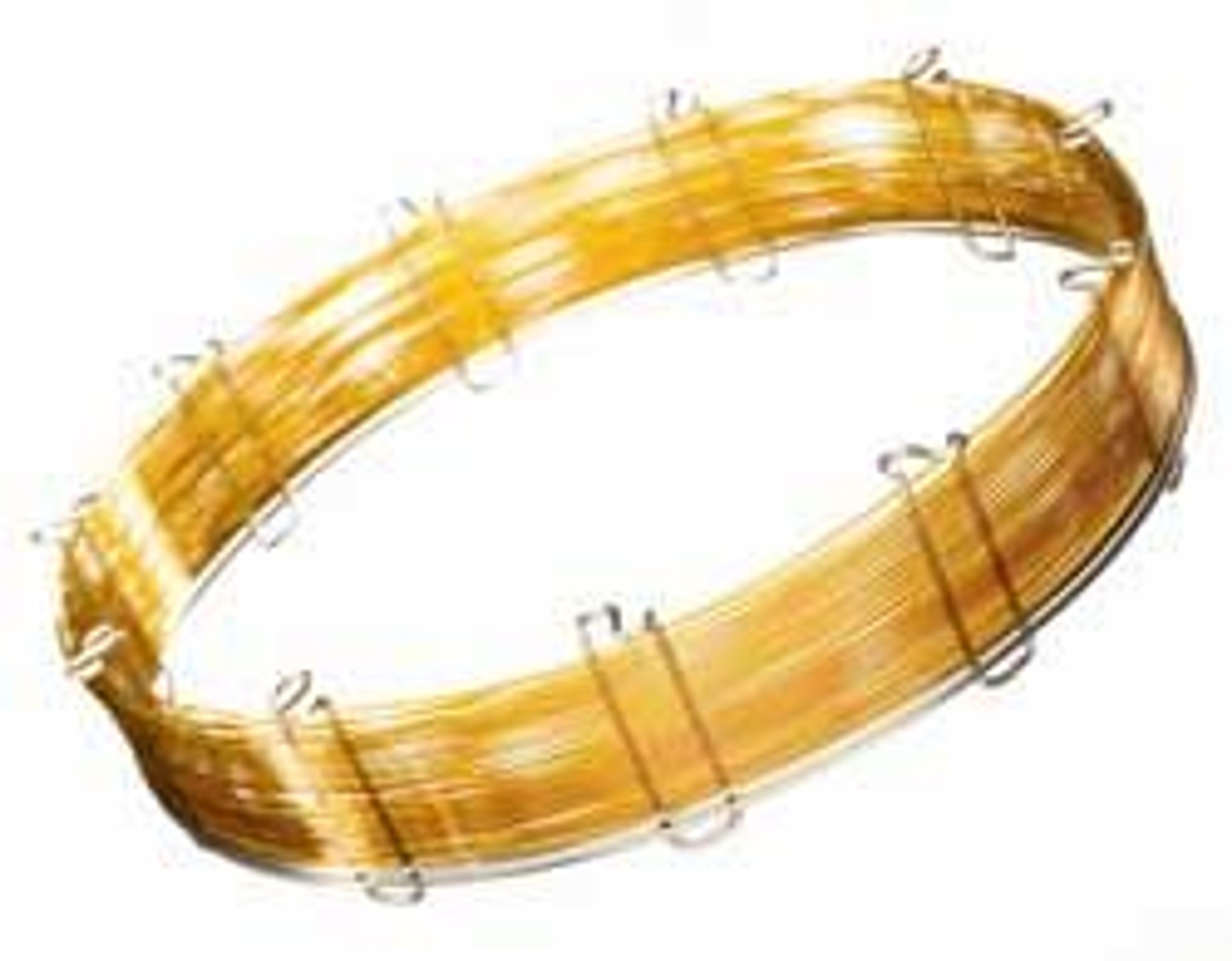

Rxi®-624Sil MS (Fused Silica) GC columns
Restek Corp.
Rxi® fused silica capillary GC columns were designed specifically to be the best columns available, for exceptional inertness, ultra-low bleed, and reproducible retention and selectivity.
(0)
Rxi®-17 (Fused Silica) GC columns
Restek Corp.
Restek's former Rtx®-17 columns are now manufactured using new Rxi® column technology--for unsurpassed inertness, ultra-low bleed, guaranteed reproducibility, and unmatched performance!
(0)
Q-sep™ QuEChERS Tubes
Restek Corp.
Q-sep™ QuEChERS Tubes for Pesticide Residue Analysis • Fast, simple sample extraction and cleanup using dSPE. • Fourfold increases in sample throughput. • Fourfold decreases in material cost. • Convenient, ready to use centrifuge tubes with ultra pure, preweighed adsorbent mixes. Quick, Easy, Cheap, Effective, Rugged, and Safe, the QuEChERS ("catchers") method, developed by the USDA Eastern Regional Research Center, has become very popular for extraction and clean-up of pesticide residue samples. Our products are available in three centrifuge tube sizes to meet the needs of both extraction and cleanup of a wide variety of sample matrices following various methods. The researchers developed a simple two-step procedure. First, the homogenized samples are extracted and partitioned, using an organic solvent and salt solution. Then, the supernatant is further extracted and cleaned, using a dispersive SPE technique. Multiple adsorbents are placed in a centrifuge tube, along with the 1mL of organic solvent and the extracted residues partitioned from step 1. The contents are thoroughly mixed, then centrifuged, producing a clean extract ready for a variety of GC or HPLC analytical techniques. Validation and proficiency data for the QuEChERS method are available for a wide variety of pesticides in several common food matrices on their website.
(0)
Rxi®-5Sil MS (Fused Silica) Columns
Restek Corp.
Rxi® fused silica capillary GC columns were designed specifically to be the best columns available, for exceptional inertness, ultra-low bleed, and reproducible retention and selectivity.
(0)
Flip Seal Dual Vespel® Ring Inlet Seals
Restek Corp.
Reversible Flip Seal—Same Cost, Twice the Lifetime New reversible Flip Seal inlet seals from Restek last twice as long as other inlet seals. Simply use—flip—then use again. The reversible design doubles the number of analyses you get per seal. •Same easy sealing as Dual Vespel® Ring Inlet Seals—no extra washer needed. •Lower leak rate than OEM metal seals. •Maximum transfer of analytes to column, due to highly inert gold or Siltek® surface.
(0)
Rtx®-1 Columns
Restek Corp.
Rtx®-1 columns exhibit long lifetime and very low bleed at high operating temperatures. A proprietary synthesis process eliminates residual catalysts that could cause degradation and increase bleed.
(0)

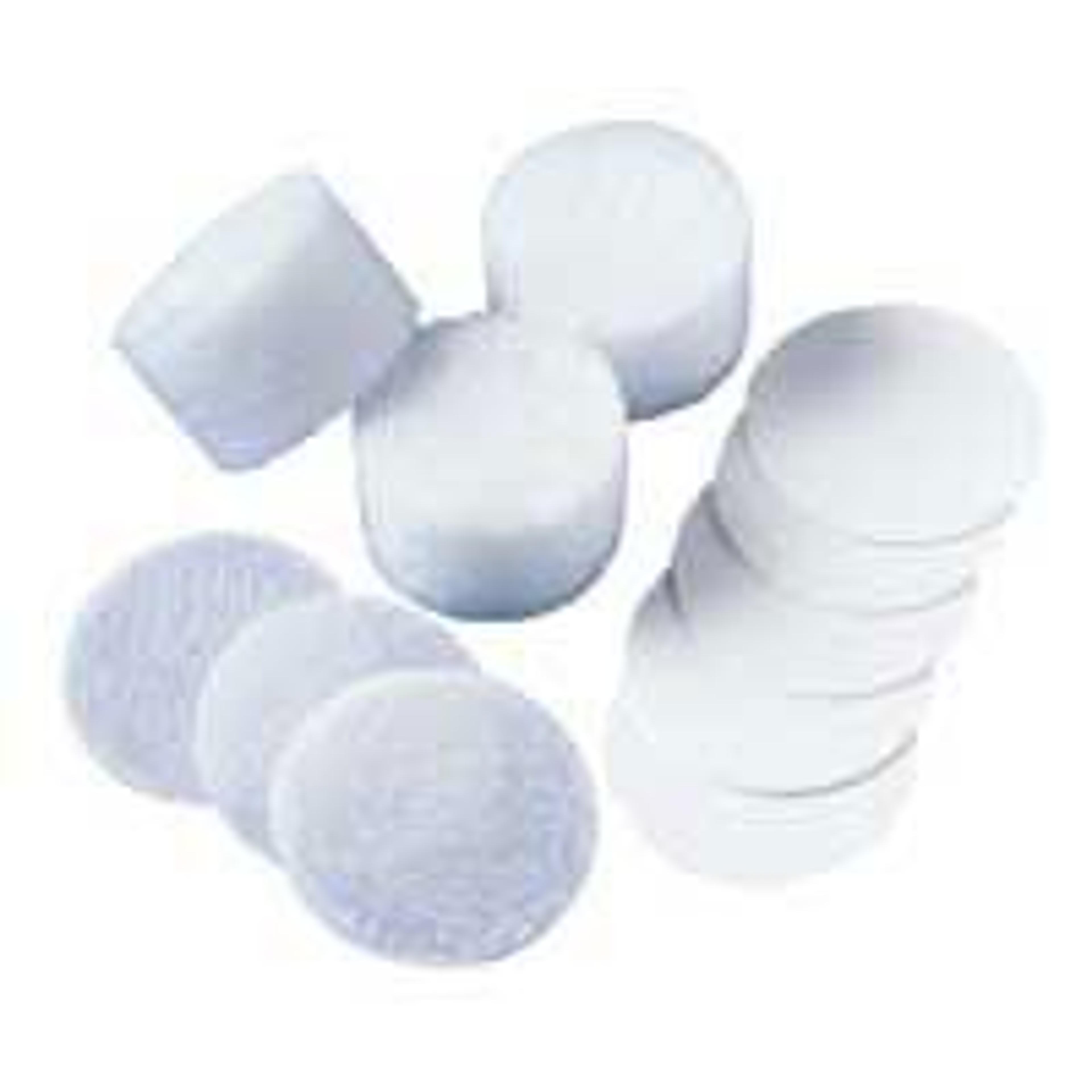

Resprep® Resin SPE Disk
