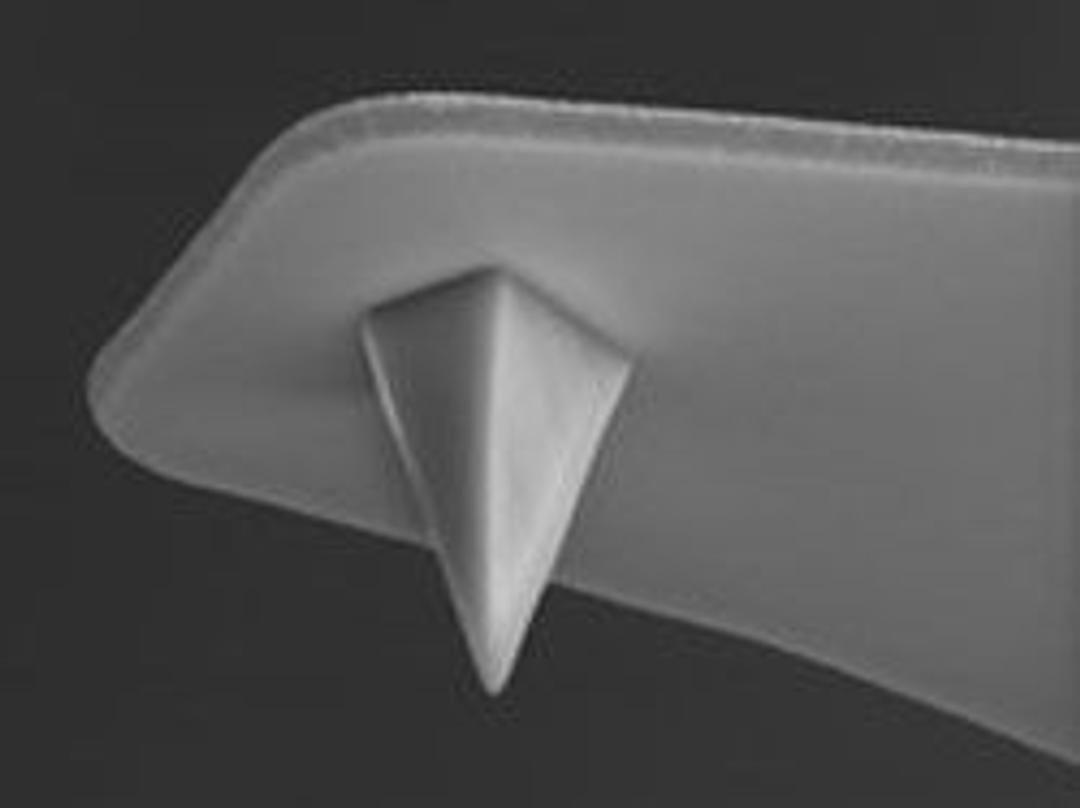

MSCT Probes
Silicon nitride probes for contact, fluid tapping mode and force measurement, with a variety of extremely low spring constants for high force sensitivity. Sharpened; 6 cantilevers 0.01-0.50N/m; Au Reflective Coating. Tip Specification Sharpened Microlevers Geometry: Cast Tip Height (h): 2.5 - 8.0µm Front Angle (FA): 15 ± 2.5° Back Angle (BA): 25 ± 2.5° Side Angle (SA): 22.5 ± 2.5° Tip Radius (Nom): 10nm Tip Radius (Max): 40nm…
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
Silicon nitride probes for contact, fluid tapping mode and force measurement, with a variety of extremely low spring constants for high force sensitivity. Sharpened; 6 cantilevers 0.01-0.50N/m; Au Reflective Coating.
Tip Specification
Sharpened Microlevers
Geometry: Cast
Tip Height (h): 2.5 - 8.0µm
Front Angle (FA): 15 ± 2.5°
Back Angle (BA): 25 ± 2.5°
Side Angle (SA): 22.5 ± 2.5°
Tip Radius (Nom): 10nm
Tip Radius (Max): 40nm
Tip SetBack (TSB)(Nom): 4µm
Tip Set Back (TSB)(RNG): 3 - 5.5µm
Cantilever Specification
Au reflective coating
Material: Silicon Nitride
Thickness (t)(Nom): 0.55µm
Thickness (t)(RNG): 0.5 - 0.6µm
Back Side Coating: Gold Reflective
