Mini-PROTEAN TGX Stain-Free™ Precast Gels
Mini-PROTEAN TGX Stain-Free precast gels for polyacrylamide gel electrophoresis (PAGE) allow for fast run times, high transfer efficiency, and rapid detection of proteins with stain-free enabled imagers. Available in six polyacrylamide gel percentages an
Mini-PROTEAN TGX Stain-Free Precast Gels
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
Mini-PROTEAN® TGX Stain-Free™ Precast Gels are based on the long-shelf-life TGX (Tris-Glycine eXtended) formulation and include unique trihalo compounds that allow rapid fluorescent detection of proteins with Bio-Rad stain-free imaging systems.
Features and Benefits of Mini-PROTEAN TGX Stain-Free Precast Gels
- Run up to 4 Mini-PROTEAN TGX Stain-Free Protein Gels using the Mini-PROTEAN Tetra Cell
- Run times as short as 15 minutes
- Transfer proteins in as little as 15 minutes; verify transfer to membrane with a stain-free enabled imager
- Inexpensive Laemmli buffer system, low running costs
- Gel images and complete analysis in less than 5 minutes after electrophoresis
- Comparable sensitivity to Coomassie stain
- Better reproducibility and quantitation compared to staining procedures
Applications and Uses of Mini-PROTEAN TGX Stain-Free Precast Gels
- 1-D polyacrylamide gel electrophoresis for protein separation
- Accurate molecular weight estimation
- Robust system for complex samples
- One gel for western blotting, staining, and mass spectrometry
More Information
Mini-PROTEAN TGX Stain-Free Precast Gels do not contain SDS. For standard denaturing electrophoresis use sample and running buffers containing SDS. To retain native protein conformation and activity these gels can be run with sample and running buffer that do not contain SDS.
Mini-PROTEAN TGX Stain-Free Gels retain Laemmli-like separation characteristics using standard sample and Tris/glycine running buffers. Protein migration patterns under non-denaturing conditions do not provide accurate molecular weight estimations.
The trihalo compounds in Mini-PROTEAN TGX Stain-Free Gels react with tryptophan residues in proteins in a UV-induced 1-minute reaction to produce fluorescence. The fluorophores remain covalently bound to the proteins throughout electrophoresis and blotting and may be subsequently visualized in gels or on PVDF membranes multiple times for validation in a western blotting workflow. The use of stain-free imaging also allows for the normalization of bands to the total protein on a blot, eliminating the use of housekeeping proteins or stripping and reprobing.
Ready to switch from Life Technologies NuPage or Bio-Rad’s Ready Gel Precast Gels? Use the the Interactive Gel Selector to find equivalent Mini-PROTEAN TGX Stain-Free Precast Gels.
Related Products
Mini-PROTEAN® TGX™ Precast Gels
Mini-PROTEAN Tetra Cell
Gel opening lever (4560000), sold separately, is 100% aluminum and recyclable
Product Overview
Links
Products Model Information

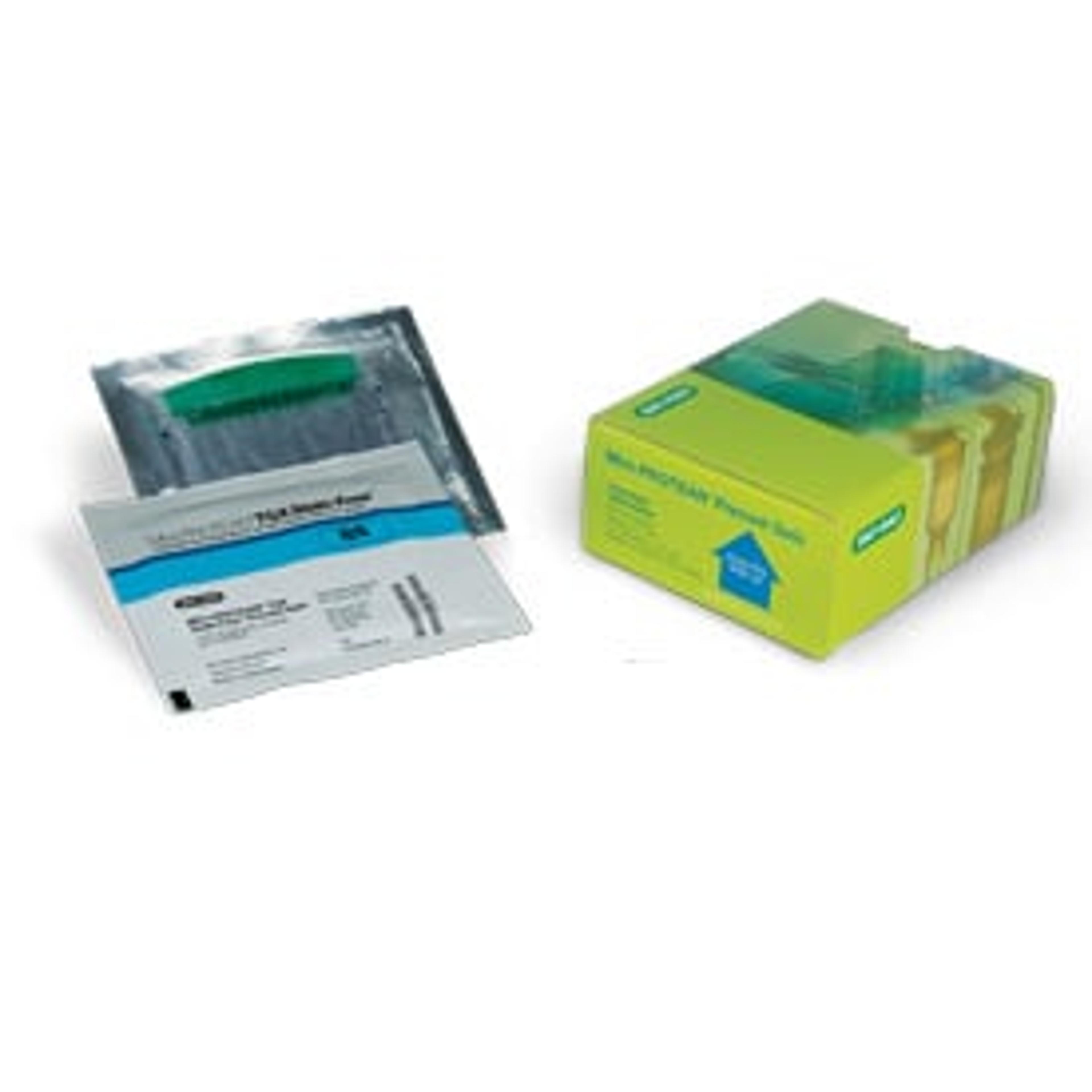

7.5% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 15 well, 15 µl
Bio-RadPkg of 10, 7.5% precast polyacrylamide gel, 15-well, 15 µl, for use with Mini-PROTEAN electrophoresis cells and Stain-Free enabled imagers; 1 opening lever
12% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 15 well, 15 µl
Bio-RadPkg of 10, 12% precast polyacrylamide gel, 15-well, 15 µl, for use with Mini-PROTEAN electrophoresis cells and Stain-Free enabled imagers; 1 opening lever
4–20% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 15 well, 15 µl
Bio-RadPkg of 10 gels/box, 4–20%, 15-well, 15 µl, for use with Mini-PROTEAN electrophoresis cells and stain-free enabled imagers; 1 opening lever
8–16% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 15 well, 15 µl
Bio-RadPkg of 10 gels/box, 8–16%, 15-well, 15 µl, for use with Mini-PROTEAN electrophoresis cells and stain-free enabled imagers; 1 opening lever
Any kD™ Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 15 well, 15 µl
Bio-RadPkg of 10, Any kD precast polyacrylamide gel, 15-well, 15 µl, for use with Mini-PROTEAN electrophoresis cells and Stain-Free enabled imagers; 1 opening lever
7.5% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 10 well, 30 µl
Bio-Rad7.5% Mini-PROTEAN® TGX Stain-Free™ Gel
10% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 10 well, 30 µl
Bio-RadPkg of 10, 10% precast polyacrylamide gel, 10-well, 30 µl, for use with Mini-PROTEAN electrophoresis cells and Stain-Free enabled imagers; 1 opening lever
12% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 10 well, 30 µl
Bio-RadPkg of 10, 12% precast polyacrylamide gel, 10-well, 30 µl, for use with Mini-PROTEAN electrophoresis cells and Stain-Free enabled imagers; 1 opening lever
4–15% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 10 well, 30 µl
Bio-RadPkg of 10 gels/box, 4–15%, 10-well, 30 µl, for use with Mini-PROTEAN electrophoresis cells and stain-free enabled imagers; 1 opening lever
8–16% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 10 well, 30 µl
Bio-RadPkg of 10 gels/box, 8–16%, 10-well, 30 µl, for use with Mini-PROTEAN electrophoresis cells and stain-free enabled imagers; 1 opening lever
Any kD™ Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 10 well, 30 µl
Bio-RadPkg of 10, Any kD precast polyacrylamide gel, 10-well, 30 µl, for use with Mini-PROTEAN electrophoresis cells and Stain-Free enabled imagers; 1 opening lever
10% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 15 well, 15 µl
Bio-RadPkg of 10, 10% precast polyacrylamide gel, 15-well, 15 µl, for use with Mini-PROTEAN electrophoresis cells and Stain-Free enabled imagers; 1 opening lever
4–15% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 10 well, 50 µl
Bio-RadPkg of 10 gels/box, 4–15%, 10-well, 50 µl, for use with Mini-PROTEAN electrophoresis cells and stain-free enabled imagers; 1 opening lever

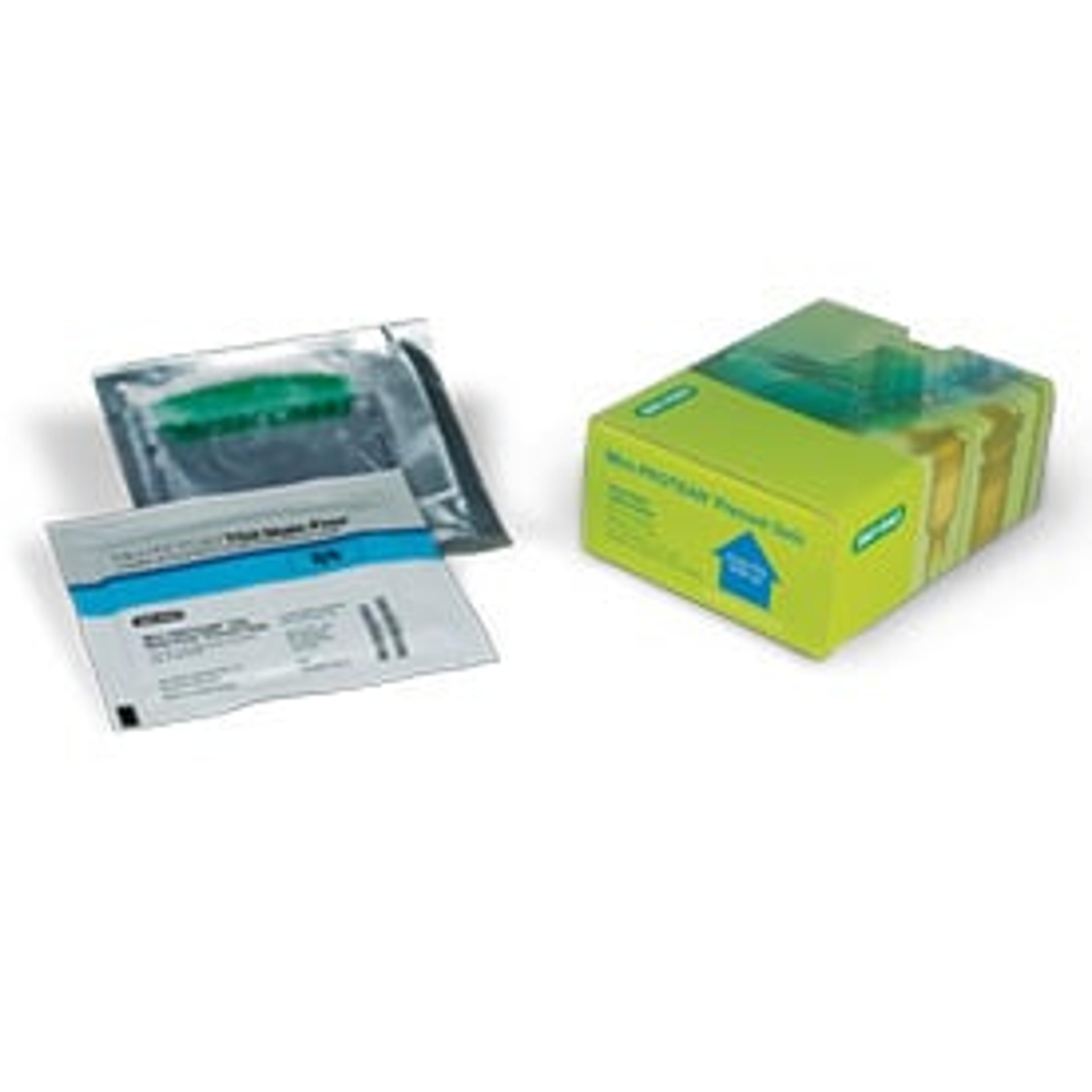

4–15% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 12 well, 20 µl
Bio-RadPkg of 10 gels/box, 4–15%, 12-well, 20 µl, for use with Mini-PROTEAN electrophoresis cells and stain-free enabled imagers; 1 opening lever
4–20% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 7 cm IPG/prep well, 450 µl
Bio-RadPkg of 10 gels/box, 4–20%, IPG/prep well, 7 cm IPG strip/450 µl, for use with Mini-PROTEAN electrophoresis cells and stain-free enabled imagers; 1 opening lever
4–20% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 10 well, 30 µl
Bio-RadPkg of 10 gels/box, 4–20%, 10-well, 30 µl, for use with Mini-PROTEAN electrophoresis cells and stain-free enabled imagers; 1 opening lever
Any kD™ Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 10 well, 50 µl
Bio-RadPkg of 10, Any kD precast polyacrylamide gel, 10-well, 50 µl, for use with Mini-PROTEAN electrophoresis cells and Stain-Free enabled imagers; 1 opening lever
Any kD™ Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 12 well, 20 µl
Bio-RadPkg of 10, Any kD precast polyacrylamide gel, 12-well, 30 µl, for use with Mini-PROTEAN electrophoresis cells and Stain-Free enabled imagers; 1 opening lever

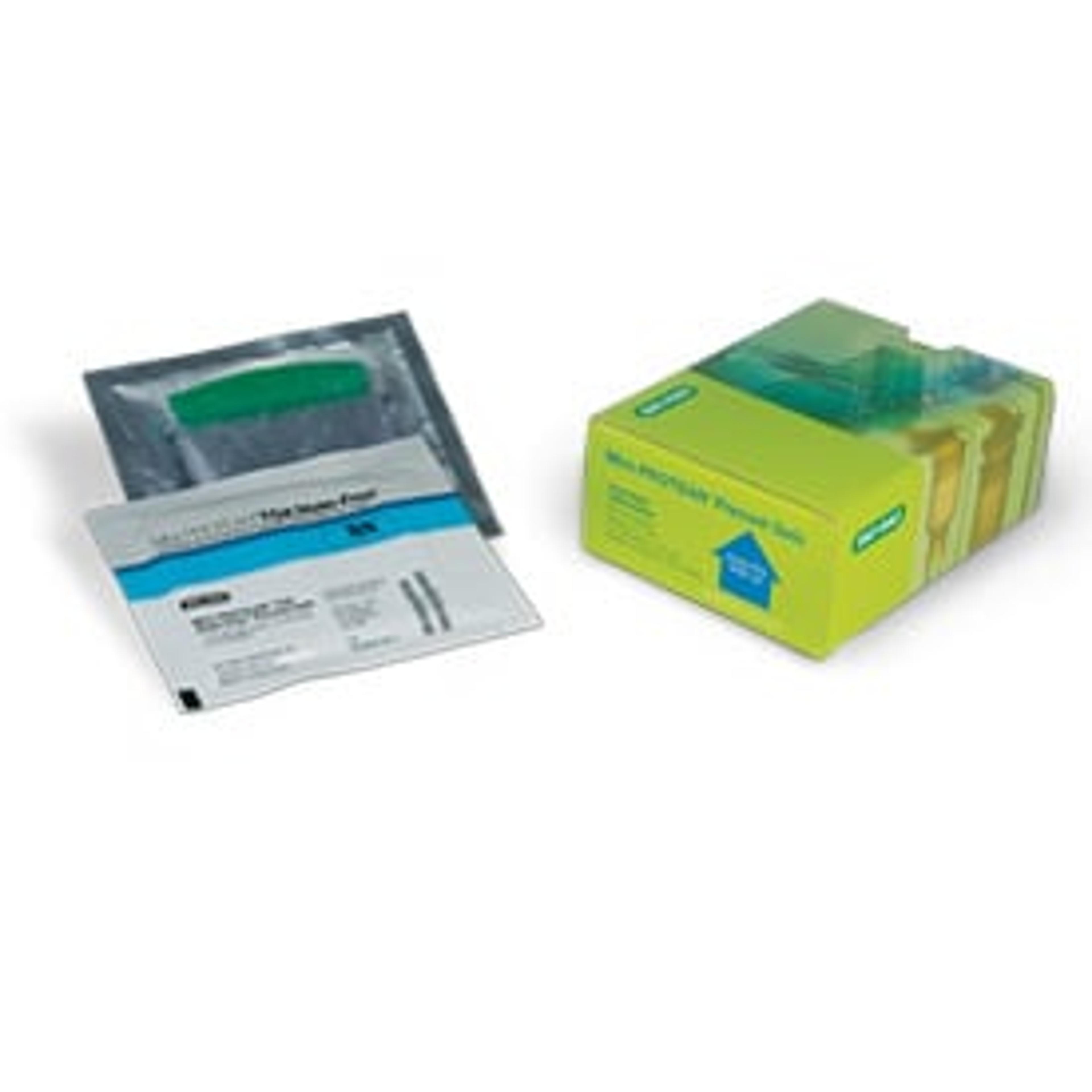

7.5% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 7 cm IPG/prep well, 450 µl
Bio-RadPkg of 10, 7.5% precast polyacrylamide gel, IPG/Prep well, 7 cm IPG strip/450 µl, for use with Mini-PROTEAN electrophoresis cells and Stain-Free enabled imagers; 1 opening lever
7.5% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 10 well, 50 µl
Bio-RadPkg of 10, 7.5% precast polyacrylamide gel, 10-well, 50 µl, for use with Mini-PROTEAN electrophoresis cells and Stain-Free enabled imagers; 1 opening lever
4–20% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 10 well, 50 µl
Bio-RadPkg of 10 gels/box, 4–20%, 10-well, 50 µl, for use with Mini-PROTEAN electrophoresis cells and stain-free enabled imagers; 1 opening lever
4–20% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 12 well, 20 µl
Bio-RadPkg of 10 gels/box, 4–20%, 12-well, 20 µl, for use with Mini-PROTEAN electrophoresis cells and stain-free enabled imagers; 1 opening lever

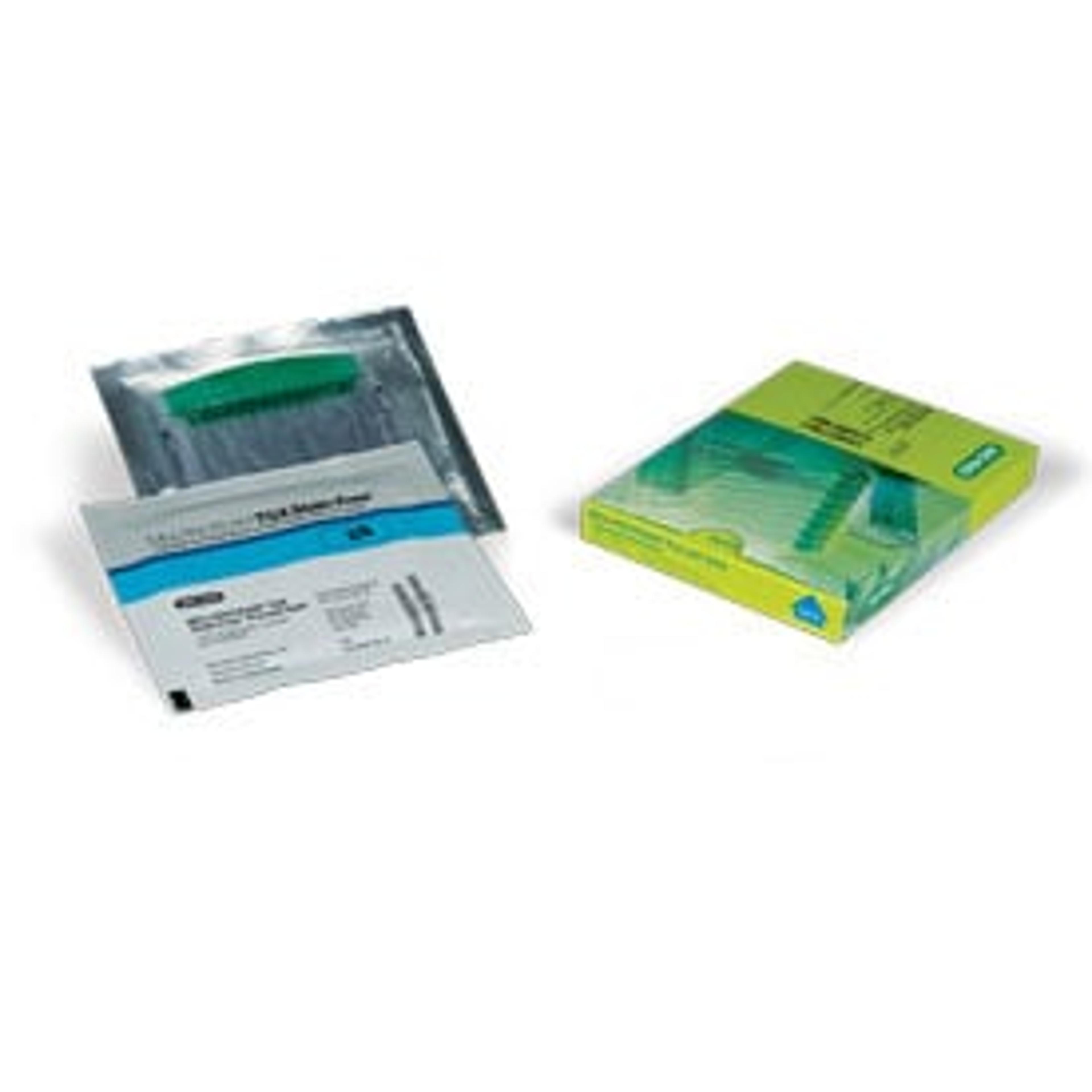

8–16% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 7 cm IPG/prep well, 450 µl
Bio-RadPkg of 10 gels/box, 8–16%, IPG/prep well, 7 cm IPG strip/450 µl, for use with Mini-PROTEAN electrophoresis cells and stain-free enabled imagers; 1 opening lever
7.5% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 12 well, 20 µl
Bio-RadPkg of 10, 7.5% precast polyacrylamide gel, 12-well, 30 µl, for use with Mini-PROTEAN electrophoresis cells and stain-free enabled imagers; 1 opening lever
10% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 7 cm IPG/prep well, 450 µl
Bio-RadPkg of 10, 10% precast polyacrylamide gel, IPG/Prep well, 7 cm IPG strip/450 µl, for use with Mini-PROTEAN electrophoresis cells and Stain-Free enabled imagers; 1 opening lever
10% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 10 well, 50 µl
Bio-RadPkg of 10, 10% precast polyacrylamide gel, 10-well, 50 µl, for use with Mini-PROTEAN electrophoresis cells and Stain-Free enabled imagers; 1 opening lever
10% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 12 well, 20 µl
Bio-RadPkg of 10, 10% precast polyacrylamide gel, 12-well, 30 µl, for use with Mini-PROTEAN electrophoresis cells and Stain-Free enabled imagers; 1 opening lever
12% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 7 cm IPG/prep well, 450 µl
Bio-RadPkg of 10, 12% precast polyacrylamide gel, IPG/Prep well, 7 cm IPG strip/450 µl, for use with Mini-PROTEAN electrophoresis cells and Stain-Free enabled imagers; 1 opening lever
8–16% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 10 well, 50 µl
Bio-RadPkg of 10 gels/box, 8–16%,10-well, 50 µl, for use with Mini-PROTEAN electrophoresis cells and stain-free enabled imagers; 1 opening lever
8–16% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 12 well, 20 µl
Bio-RadPkg of 10 gels/box, 8–16%, 12-well, 20 µl, for use with Mini-PROTEAN electrophoresis cells and stain-free enabled imagers; 1 opening lever
Any kD™ Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 7 cm IPG/prep well, 450 µl
Bio-RadPkg of 10, Any kD precast polyacrylamide gel, IPG/Prep well, 7 cm IPG strip/450 µl, for use with Mini-PROTEAN electrophoresis cells and Stain-Free enabled imagers; 1 opening lever
12% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 10 well, 50 µl
Bio-RadPkg of 10, 12% precast polyacrylamide gel, 10-well, 50 µl, for use with Mini-PROTEAN electrophoresis cells and Stain-Free enabled imagers; 1 opening lever
12% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 12 well, 20 µl
Bio-RadPkg of 10, 12% precast polyacrylamide gel, 12-well, 30 µl, for use with Mini-PROTEAN electrophoresis cells and Stain-Free enabled imagers; 1 opening lever
4–15% Mini-PROTEAN® TGX Stain-Free™ Protein Gels, 7 cm IPG/prep well, 450 µl
Bio-RadPkg of 10 gels/box, 4–15%, IPG/prep well, 7 cm IPG strip/450 µl, for use with Mini-PROTEAN electrophoresis cells and stain-free enabled imagers; 1 opening lever

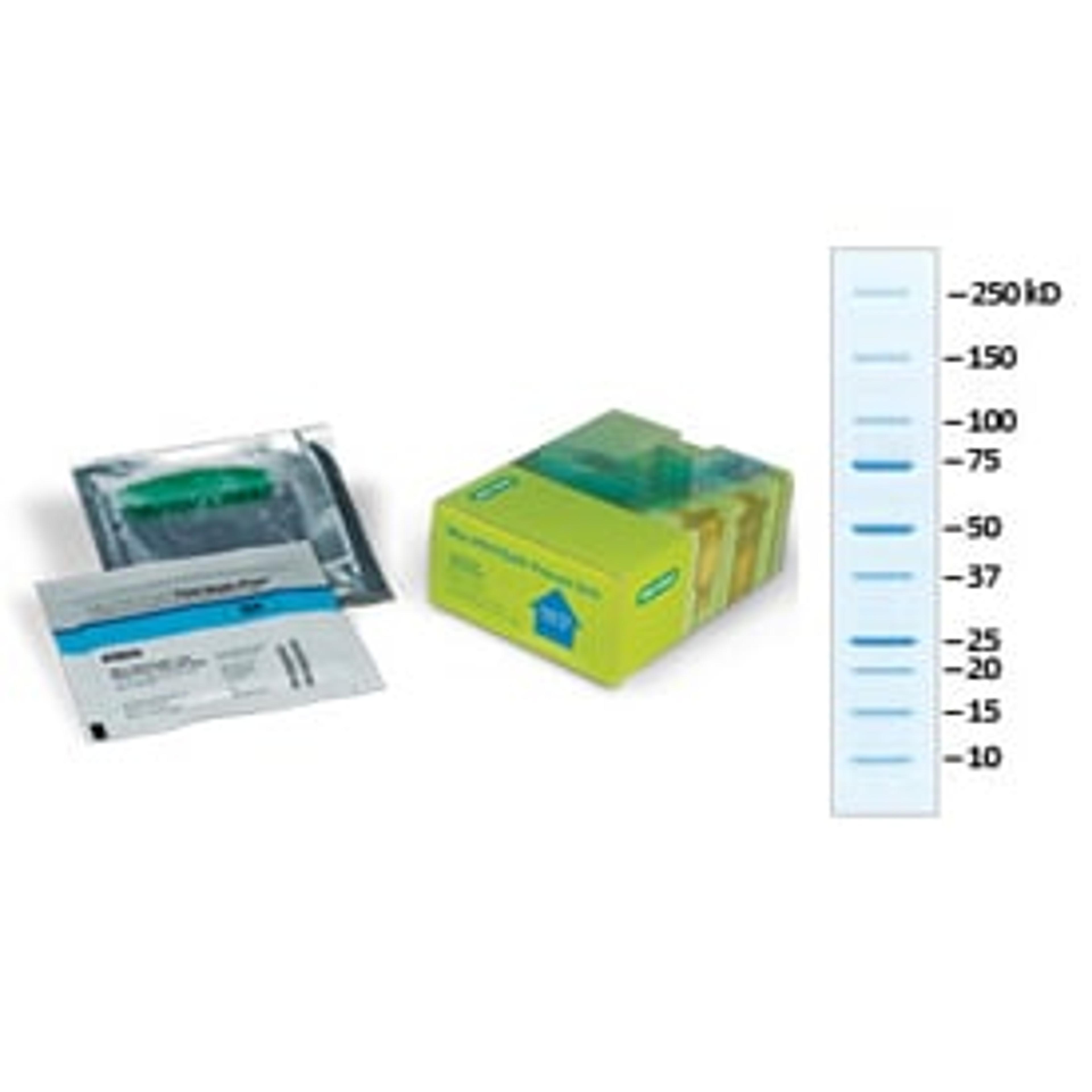

4–20% Mini-PROTEAN® TGX Stain-Free™ Gels, 15-well, 15 µl, with Precision Plus Protein™ Unstained Standards
Bio-RadPkg of 10, 4–20% precast polyacrylamide gel, 8.6 x 6.7 cm (W x L), for use with Mini-PROTEAN Electrophoresis Cells; includes 100 µl Precision Plus Protein Unstained Standards
4–20% Mini-PROTEAN® TGX Stain-Free™ Gels, 10-well, 50 µl, with Precision Plus Protein™ Unstained Standards
Bio-RadPkg of 10, 4-20% precast polyacrylamide gel, 8.6 x 6.7 cm (W x L), for use with Mini-PROTEAN Electrophoresis Cells; includes 100 µl Precision Plus Protein Unstained Protein Standards
4–15% Mini-PROTEAN® TGX Stain-Free™ Gels, 10-well, 30 µl, with Precision Plus Protein™ Unstained Standards
Bio-RadPkg of 10, 4–15% precast polyacrylamide gel, 8.6 x 6.7 cm (W x L), for use with Mini-PROTEAN Electrophoresis Cells; includes 100 µl Precision Plus Protein Unstained Protein Standards
4–20% Mini-PROTEAN® TGX Stain-Free™ Gels, 10-well, 30 µl, with Precision Plus Protein™ Unstained Standards
Bio-RadPkg of 10, 4–20% precast polyacrylamide gel, 8.6 x 6.7 cm (W x L), for use with Mini-PROTEAN Electrophoresis Cells; includes 100 µl Precision Plus Protein Unstained Protein Standards
