Micro-Chamber/Thermal Extractor

Fast sampling of emissions from products and materials.

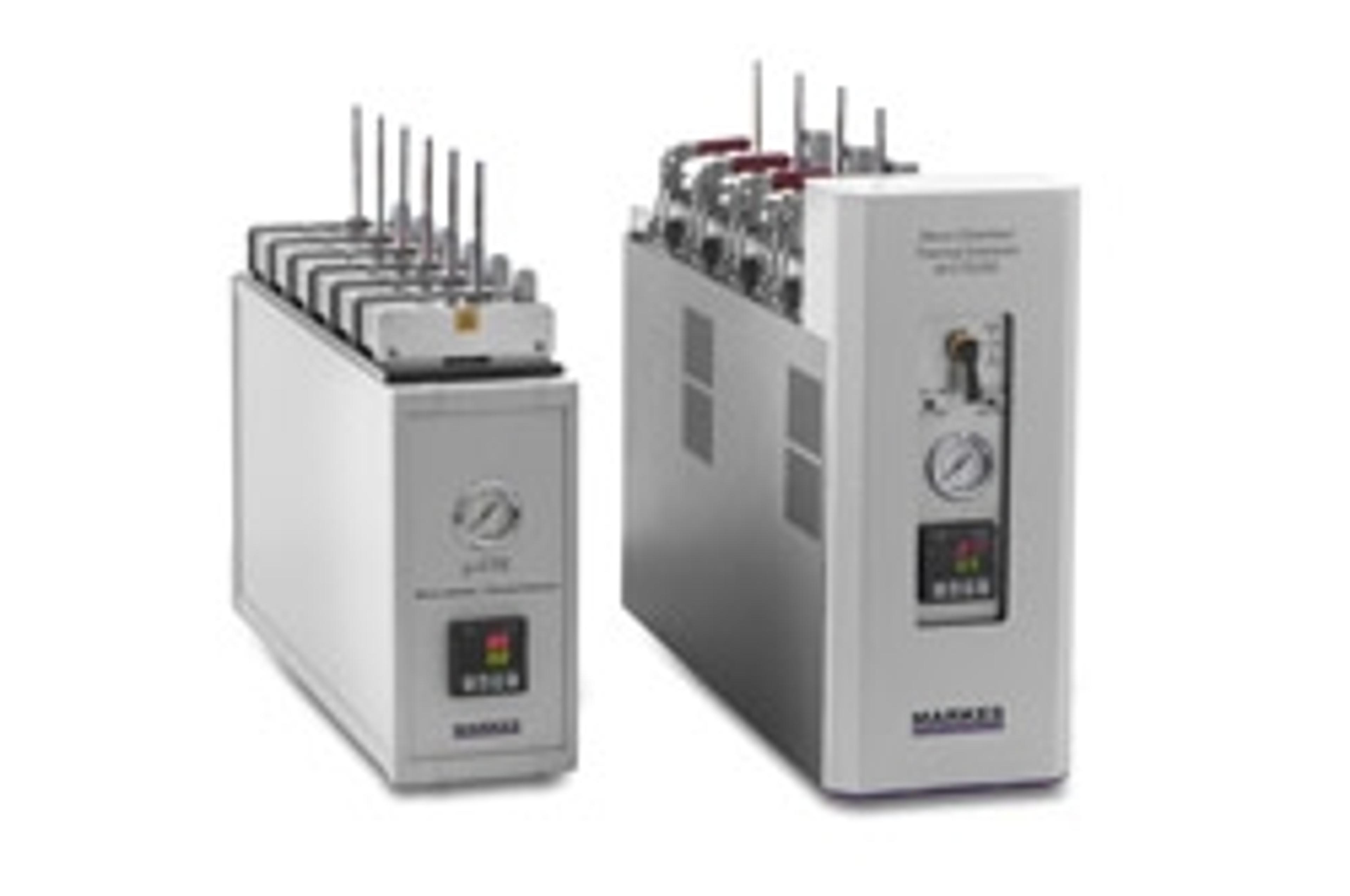

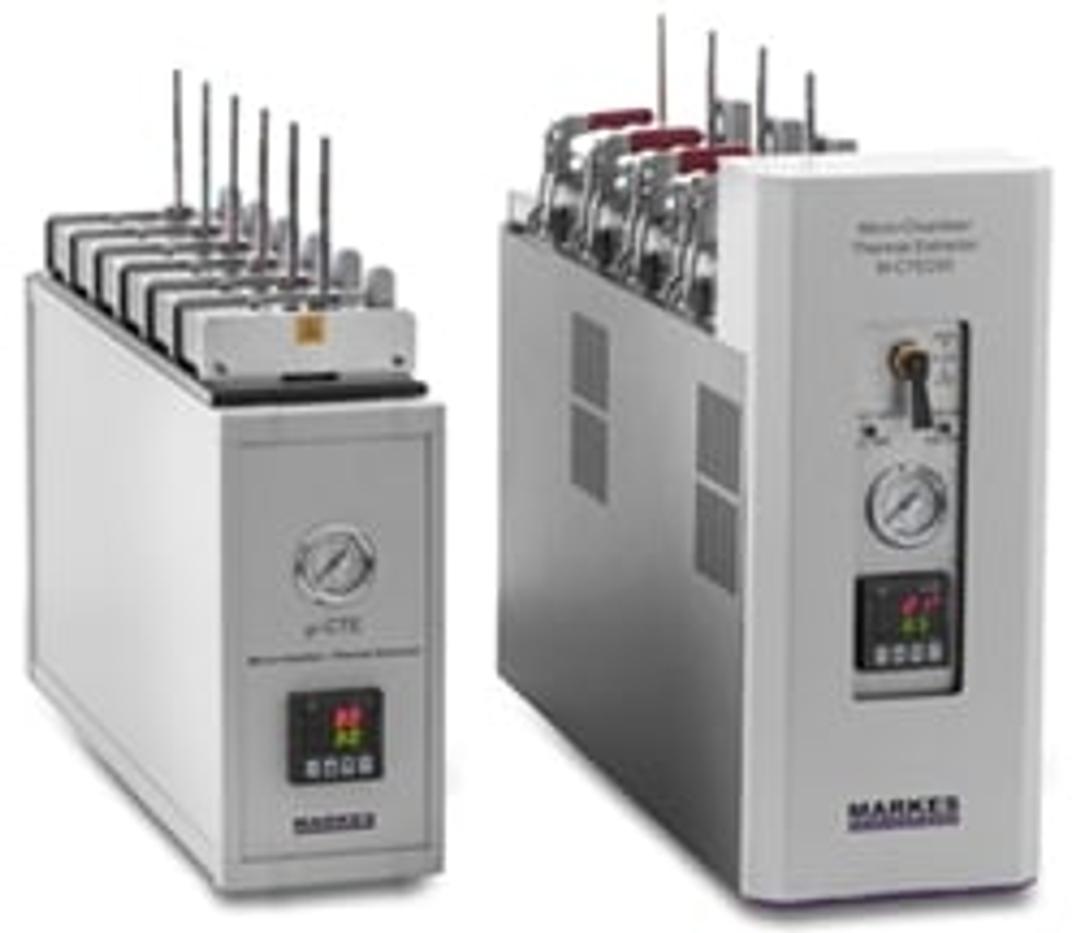

The Micro-Chamber/Thermal Extractor™ (µ-CTE™) is a versatile and compact unit with up to six small cylindrical chambers that enables the sampling of chemicals released from products or materials. Released volatile and semi-volatile organic compounds (VOCs and SVOCs) are collected onto sorbent tubes for analysis by TD–GC–MS. The capability of the Micro-Chamber/Thermal Extractor has been further extended by the release of the Humidifier Accessory, which supplies the Micro-Chamber/Thermal Extractor with air or gas at up to 50% relative humidity.

Features:

• The four-chamber model has a chamber volume of 114 mL and a maximum temperature of 250°C
• The six-chamber model has a chamber volume of 44 mL and a maximum temperature of 120°C
• Volatiles are collected on sorbent tubes for analysis by TD–GC–MS; also compatible with DNPH cartridges for formaldehyde monitoring
• No sample preparation needed – simply place the material in the chamber
• A constant flow of heated air or gas ensures rapid production of a representative VOC/SVOC profile
• Results can be correlated with longer-term reference methods
• Construction from inert-coated stainless steel – compatibility with reactive or thermally labile chemicals
• Accessories allow surface-only sampling or permeation testing
• An optional humidifier accessory (available for both models of microchamber) supplies air/gas at up to 50% relative humidity to allow closer simulation of conditions used in reference tests and to enhance the recovery of some less-volatile polar compounds

Benefits:

• Save time and money by minimising the need for third-party reference tests
• Convienient and fast – test multiple samples in minutes, not days, for efficient quality control
• Confidence in results – Data from the Micro-Chamber/Thermal Extractor has been shown to correlate with longer-term reference-test results
• Avoid tedious and time-consuming sample preparation – simply place your sample in the microchamber
• Complies with international standard methods ISO 12219-3 (interior air of road vehicles) and ASTM D7706 (rapid screening of VOC emissions from products)
• Peace-of-mind – you are buying a quality product from the recognised leader in thermal desorption instrumentation

Applications:

• RMicro-Chamber/Thermal Extractor analysing
• Rapid emissions screening of materials used indoors and in vehicles, especially to aid compliance with regulations and safety labels
• Product R&D and formulation of lower-emitting products
• Testing of raw materials and production-line quality control
• Comparison with competitors’ products
• Testing permeation of vapours through materials
• Aroma profiling of foods or fragranced materials
