iONE Microdispensing Instrument

The instrumentONE series contains a variety of ultra-fast, high-precision, non-contact, liquid-handling systems. It provides a flexible platform for your individual applications. Based on several years of M2 experience, it provides flexibility in pattern design and high-speed printing through the use of our unique microdispensing technology, online degassing and online quality control. Fully compatible with our Quattro-Dispensing Technology, array production is now much more intuitive as a result of the simplified liquid path handling.

If your applications require an individual, non-standard target layout, this poses no problem for the iONE. Each setup can be customised to your individual needs, while offering flexibility as well as reproducibility in one solution.

A classic microarray-spotter layout can be combined with extra source wells and even a large variety of volume tubes.

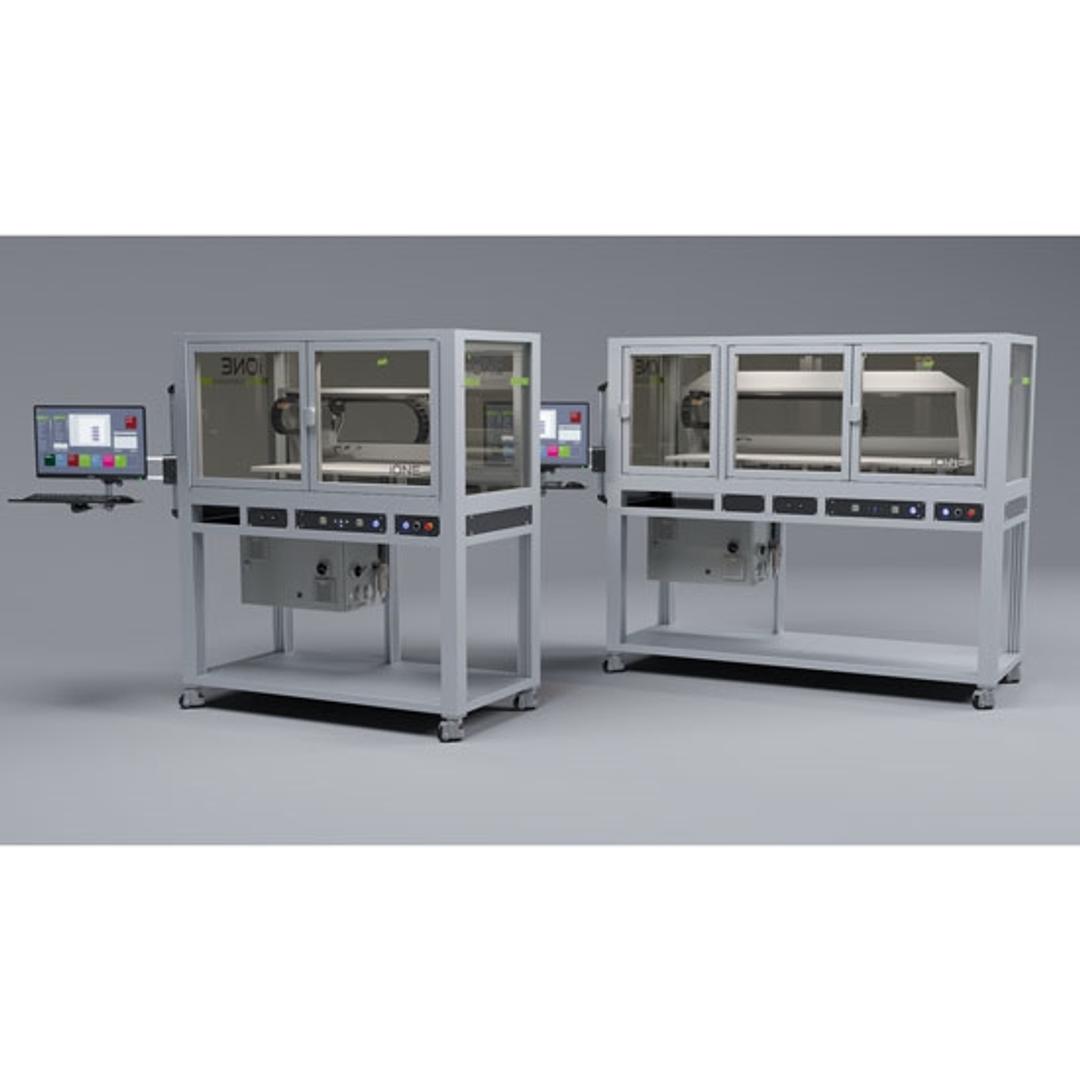

The current generation of the iONE series is available in two different sizes (iONE-600 and iONE-1200). Both can process a variety of target capacities, which make them ideal for many applications in pL, nL, μL and low-mL volume ranges.

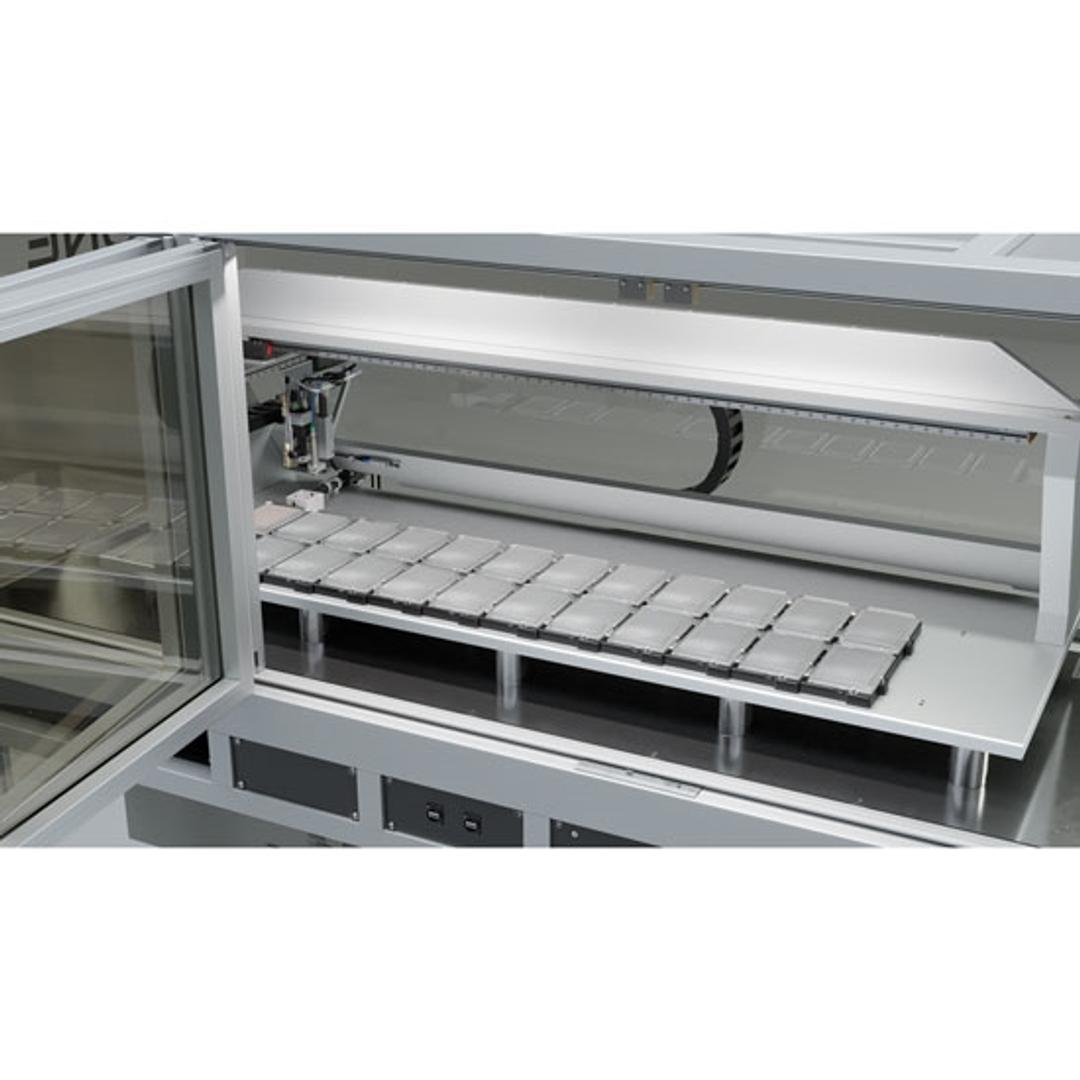

On its maximum layout, our iONE-1200 can supports a total of 24 MTP's or 150 glass slides, which means a lot of space for your innovative applications.

The iONE features:

• Hermetically sealed housing
• Built-in PC
• Built-in pressure and vacuum control
• Intuitive M2-Automation InDot software
• Humidity control
• Online QC
• Source and target-temperature control
• Ultrasonic bath
• Inflight 3D-Droplet control
• High precision analytic balance
• Additional pin-wash station
• Dispenser drying station
• Deionizer
• And many more...

Usual Applications:

• Lab-on-a-Chip / dipsticks
• Compound library screening
• DNA microarrays
• Biosensors
• Drug discovery / immunoassays
• Microfluidic chips and channels
• Lateral-flow applications
