i-Raman Plus ‒ Highly Sensitive, High Resolution Fiber Optic Raman System

Name: i-Raman Plus ‒ Highly Sensitive, High Resolution Fiber Optic Raman System
Rating: 5 (1 reviews)

The i-Raman® Plus is an enhanced version of our award winning i-Raman portable Raman spectrometer, now powered by our innovative smart spectrometer technologyUsing a high efficiency back-thinned CCD detector with deeper cooling and high dynamic range, this portable Raman spectrometer delivers an improved signal to noise ratio for up to 30 minutes of integration time, making it possible to measure weak Raman signals.The i-Raman…

5.0/5.0

|1 Review|Write your own Review

Request Pricing

Receive your quote directly from the manufacturer.

Reviews

Reviews
Description

Average Rating 5.0

|1Scientists have reviewed this product

Ease of Use

After Sales Service

Value for Money

Write your own review

Very satisfying and robust product.

Average Rating 5.0

Application Area:

Industrial Production

A very easy‑to‑use and robust product for an industrial environment. Its fast acquisition speed makes it possible to closely monitor any potential changes in materials during production. After two years of near‑continuous analysis, no system drift has been observed. I highly recommend this technology to overcome industrial and/or exploratory limitations.

Review Date: 19 Jan 2026 | Metrohm AG

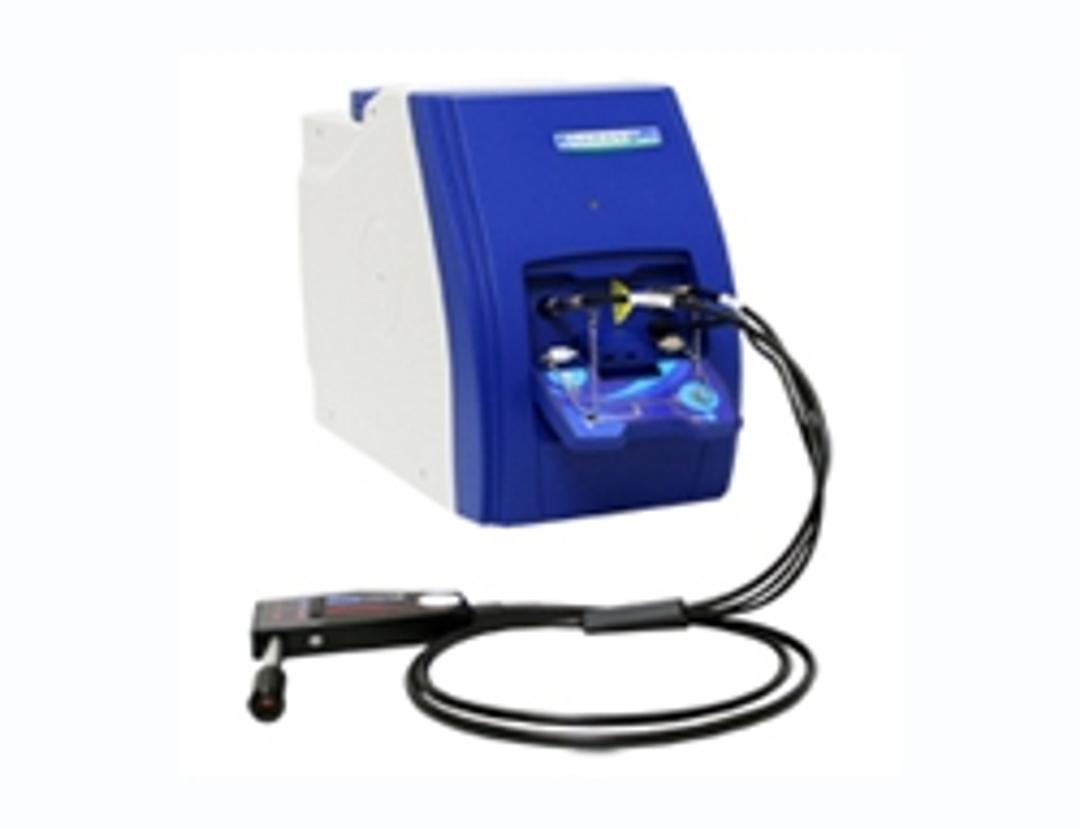

The i-Raman® Plus is an enhanced version of our award winning i-Raman portable Raman spectrometer, now powered by our innovative smart spectrometer technology

Using a high efficiency back-thinned CCD detector with deeper cooling and high dynamic range, this portable Raman spectrometer delivers an improved signal to noise ratio for up to 30 minutes of integration time, making it possible to measure weak Raman signals.

The i-Raman Plus features the unique combination of wide spectral coverage and high resolution with configurations measuring out to 4000cm^-1, enabling you to measure stretching bands around 3100cm^-1. The system’s small footprint, lightweight design, and low power consumption provide research grade Raman capabilities anywhere. The i-Raman Plus comes standard with a fiber optic probe, probe holder with XYZ positioning stage, cuvette adaptor for measuring liquid samples, and our proprietary BWIQ multi-variant analysis software.

With the i-Raman Plus, a high precision qualitative and quantitative Raman solution is at your fingertips.

i-Raman Plus ‒ Highly Sensitive, High Resolution Fiber Optic Raman System Features:

Smart on-board processing including averaging, smoothing, and dark compensation
Our comprehensive package of sampling accessories for measuring solid and liquid samples provide you the utmost utility right out of the box
Our state of the art BWIQ quantitative Raman analysis software package provides an intuitive user interface, intelligent algorithms, and efficient matrix calculation power, making it easy to use by both expert and novice users
Patented CleanLaze® Technology for Laser Stabilization
175cm^-1 of the Rayleigh Line (65cm^-1 Option Available)
Fiber Optic Coupling for Convenient Sampling
Up to 4000cm^-1 Raman Shift Coverage
Spectral Resolution as fine as 3cm^-1
