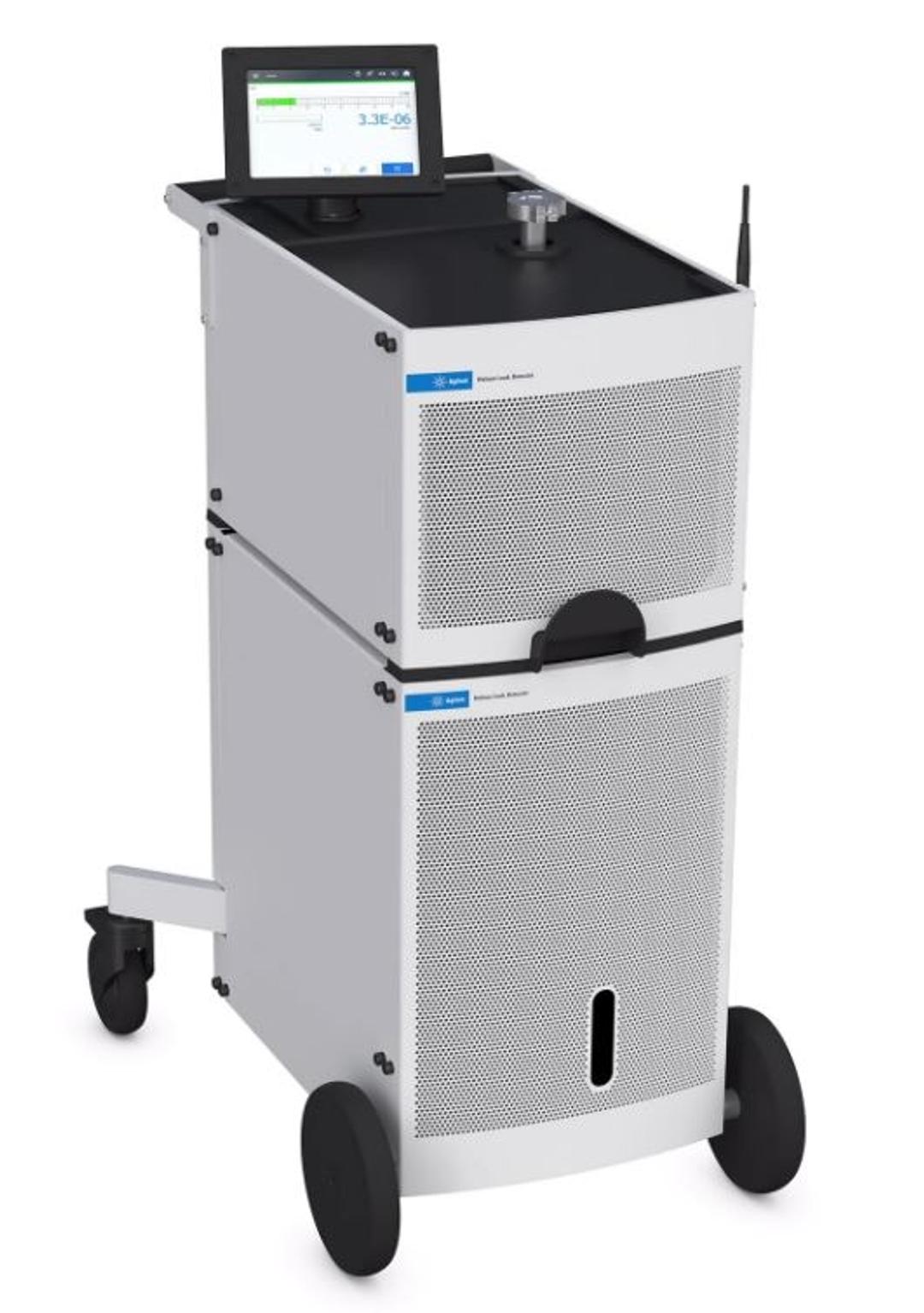

HLD MD15 Mobile Dry Helium Leak Detector

The Agilent HLD MD15 Dry Leak Detector uses a mass spectrometer tuned to detect helium, which is used as a tracer gas to locate and/or measure very small leaks in enclosed devices or systems. The mobile HLD MD15 is both a precise instrument and a robust workhorse, featuring an easy-to-use touch screen interface and menu structure that quickly connect users to powerful leak detection capabilities. Built-in application setups shorten test cycles, and setups can be saved to assure repeatability. Integrated wheels enable easy relocation.

The MD15 Includes an oil-free quiet Agilent IDP-15 Dry Scroll Pump (pumping speed: 15 m3/hr) for fast evacuation of test parts and systems and rapid cleanup of ambient helium between test cycles.

Features:

• Six different application setup guides help you correctly configure your instrument for the best performance, ensuring that parameters are properly set for a thorough and efficient test
• Large, durable, responsive, industrial touch screen rotates 180° for ideal viewing
• Clean, intuitive user interface allows immediate access to often-used features and a flat menu structure allows you to quickly find the setting you need
• Startup wizard simplifies set up on first-time power-up
• Enhanced charting capabilities include zoom for closer inspection of data, color-coded set points, and time-based plot records of leak rate and pressure
• A large work surface provides plenty of room for parts to be tested, tools, etc.
• Improved power-off process keeps spectrometer under vacuum and protects the turbomolecular pump
• Improved maneuverability for easier access to narrow service areas and chases in semiconductor fabs or other production environments
• Dry vacuum pump eliminates the risk of oil contamination of test parts and systems
