Fast Current Transformer
The Fast Current Transformer (FCT) is a wideband AC transformer with a rise time down to 175ps and a bandwidth up to 2GHz. Applications include measurements of: Pulsed beams in particle accelerators Partial discharge pulses from corona wires, in insulation defects Pulsed beams in particle accelerators Current rise in semiconductor gates, triggers Surge current waveforms in EMI/EMC analysis Capacitive discharge pu…
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
The Fast Current Transformer (FCT) is a wideband AC transformer with a rise time down to 175ps and a bandwidth up to 2GHz. Applications include measurements of:
- Pulsed beams in particle accelerators
- Partial discharge pulses from corona wires, in insulation defects
- Pulsed beams in particle accelerators
- Current rise in semiconductor gates, triggers
- Surge current waveforms in EMI/EMC analysis
- Capacitive discharge pulses
New technology
Used world-wide on all high-energy particle accelerator to observe very short beam pulses. Exceptional bandwidth and sensitivity are achieved by using amorphous cobalt-based alloy cores specially annealed in a magnetic field to obtain very high permeability and low loss at frequencies to 2 GHz.

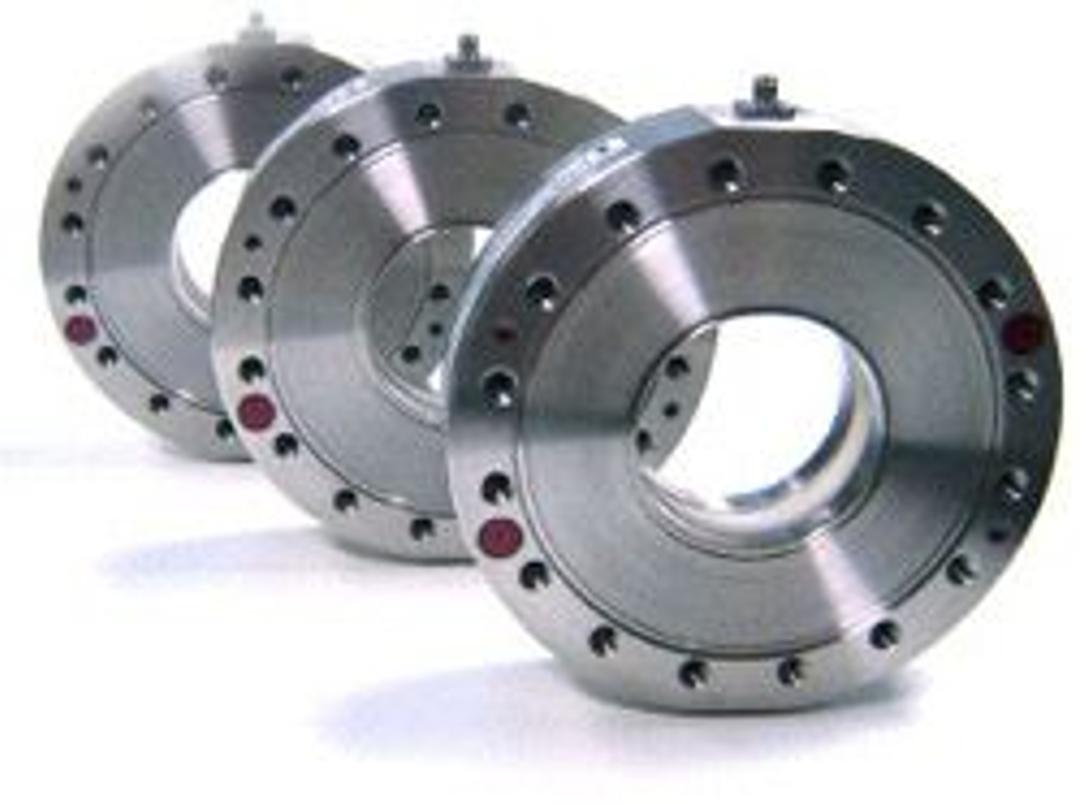

FCT can be embedded inside a conflat flange for direct mounting on the beam pipe. Available in six different apertures ranging from 16mm up to 178mm.
