Digital Multimeter PCE-123
Digital, electrical, current, voltage or process calibrator, tester or multimeter for simulation and measurement of standardized electrical signals / control signals as well as frequencies and temperature
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.

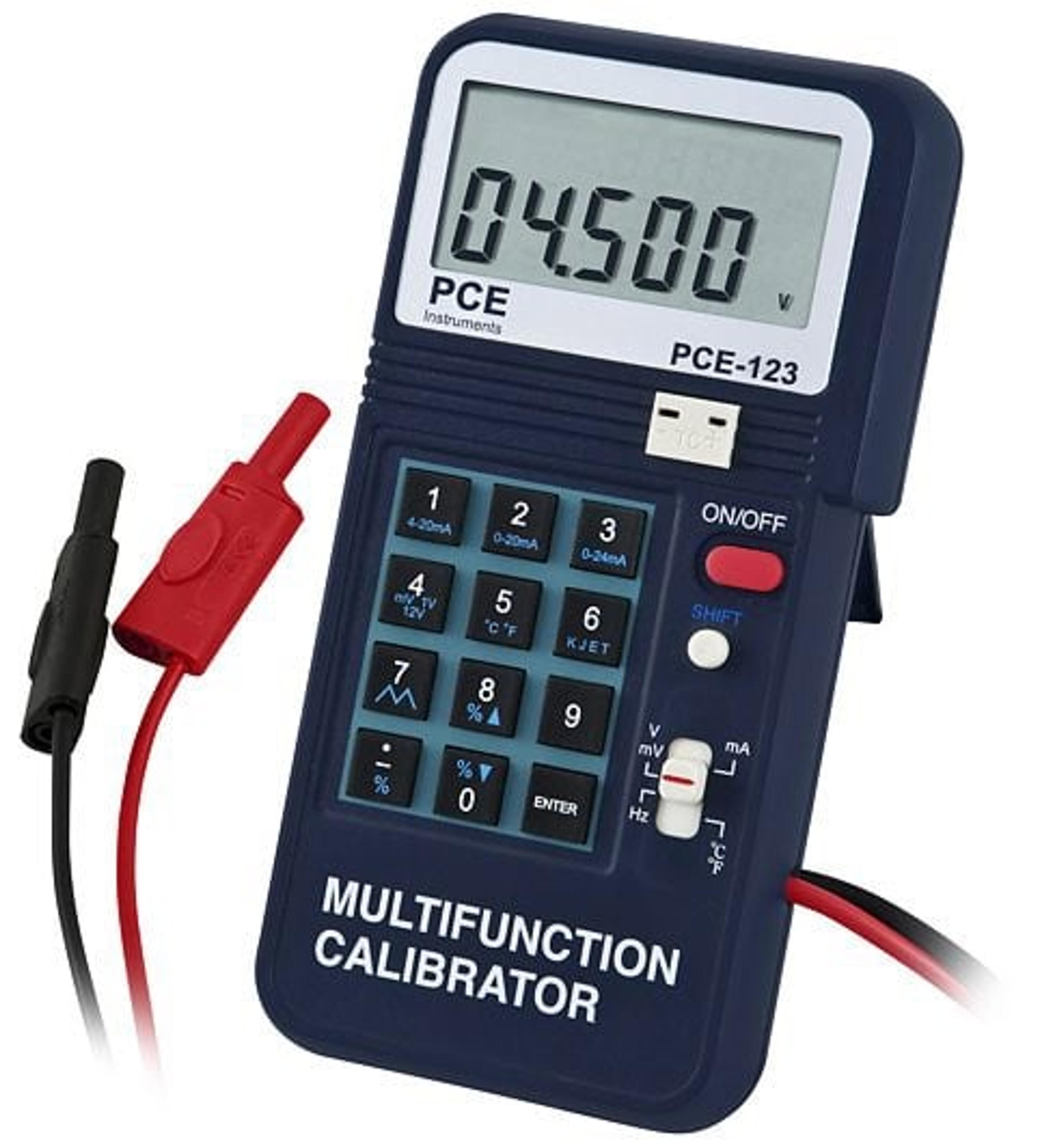

The PCE-123 is a network-independent multifunction calibrator used to test and calibrate a variety of parameters of controllers and measuring instruments. Offering a high level of accuracy for an affordable price, this easy-to-use calibrator provides electrical (mA, mV, V and frequency in Hz) and temperature (in °C or °F) output signals, making the calibrator useful in a wide range of applications.
The calibrator also has automatic step and ramp functions as well as the possibility to pre-select the output signal steps (0 … 100 %) by using the arrow keys and to directly specify an output value (e. g. 13.8 mA). Operation via the keypad is very easy and intuitive. The PCE-123 multifunctional calibrator is an important tool in any electronics workshop as well as in any measuring and control department in trade, industry and automation.
- 4 to 20mA (1kΩ, 24V power)
- 0 to 100.00 mV / 0 to 1,0000V / 0 to 12,000V
- Type-K, J, E, T temperature thermocouple sensors (°C or °F)
- Frequency range 1 to 62,500Hz
- Basic accuracy 0.025 %
- Easy operation via keypad
- Automatic ramp function
- Selectable between 0 to 20mA/ 0 to 24mA
- Input 0 to 100% (mA, mV, V )
- Alarm beep 'open' (mA) or 'short circuit' (mV, V)
