Criterion™ TGX™ Precast Gels
Criterion TGX precast gels are based on the long shelf life TGX formulation. The gels deliver superior resolution, fast run times, and greater transfer efficiencies.

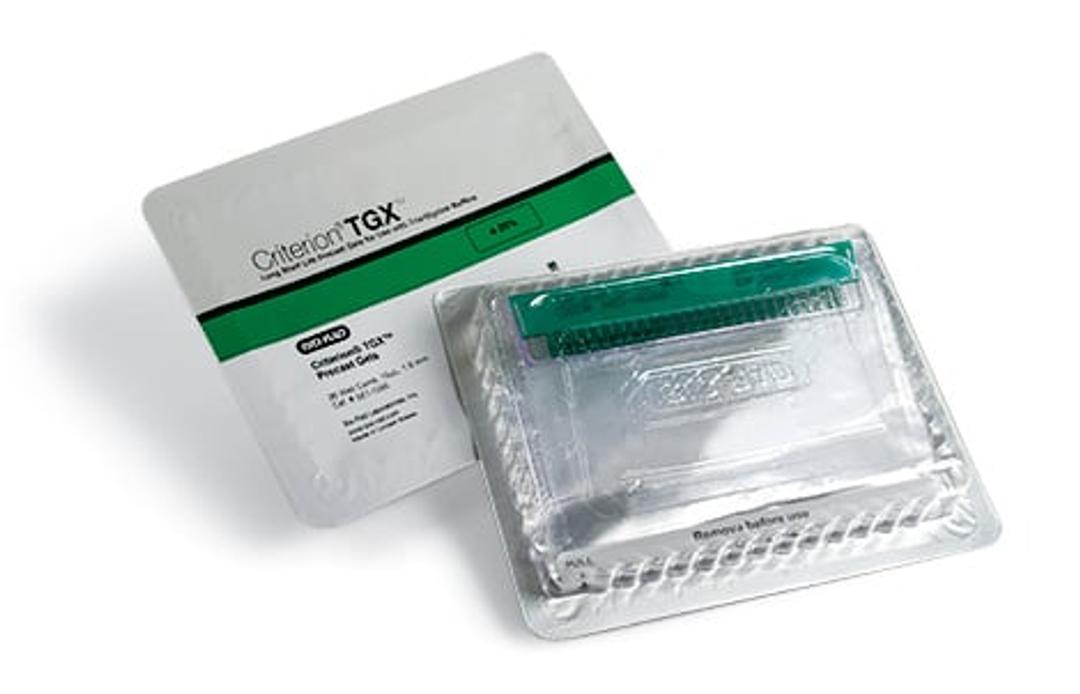

Criterion TGX Precast Gels
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
I love these gels!
Biochemistry
I really like these gels because then I don't have to prepare my own gels. Therefore, I have results much faster.
Review Date: 27 Oct 2025 | Bio-Rad
Wonderful
Wonderful and beneficial in laboratory analysis in research.
Review Date: 27 Sept 2023 | Bio-Rad
The Criterion™ TGX™ (Tris-Glycine eXtended) precast gels for PAGE are based on the long shelf life TGX formulation. The TGX gels retain Laemmli-like separation characteristics using the standard sample and Tris/Glycine running buffers. The proteins in the gel can be separated in as little as 20 min at 300 V while maintaining low temperatures.
Benefits Include:
- Run time as short as 20 min
- Protein transfer in as little as 15 min
- Direct drop-in for Laemmli systems
- Inexpensive Laemmli buffer system, low running costs
- High-throughput system
TGX gels are manufactured without SDS. The gels can be used to run proteins under nondenaturing conditions for subsequent analysis of their native conformation and activity by omitting SDS from the running buffer. Native analysis does not provide accurate molecular weight information. SDS is added to the sample and running buffer to create standard SDS denaturing electrophoresis conditions.
Criterion gels are packaged and sold in individual units: 1–2 gels can be run in the Criterion cell and 1–12 gels can be run in the high-throughput Criterion™ Dodeca™ cell.
Product Overview
Links
Products Model Information

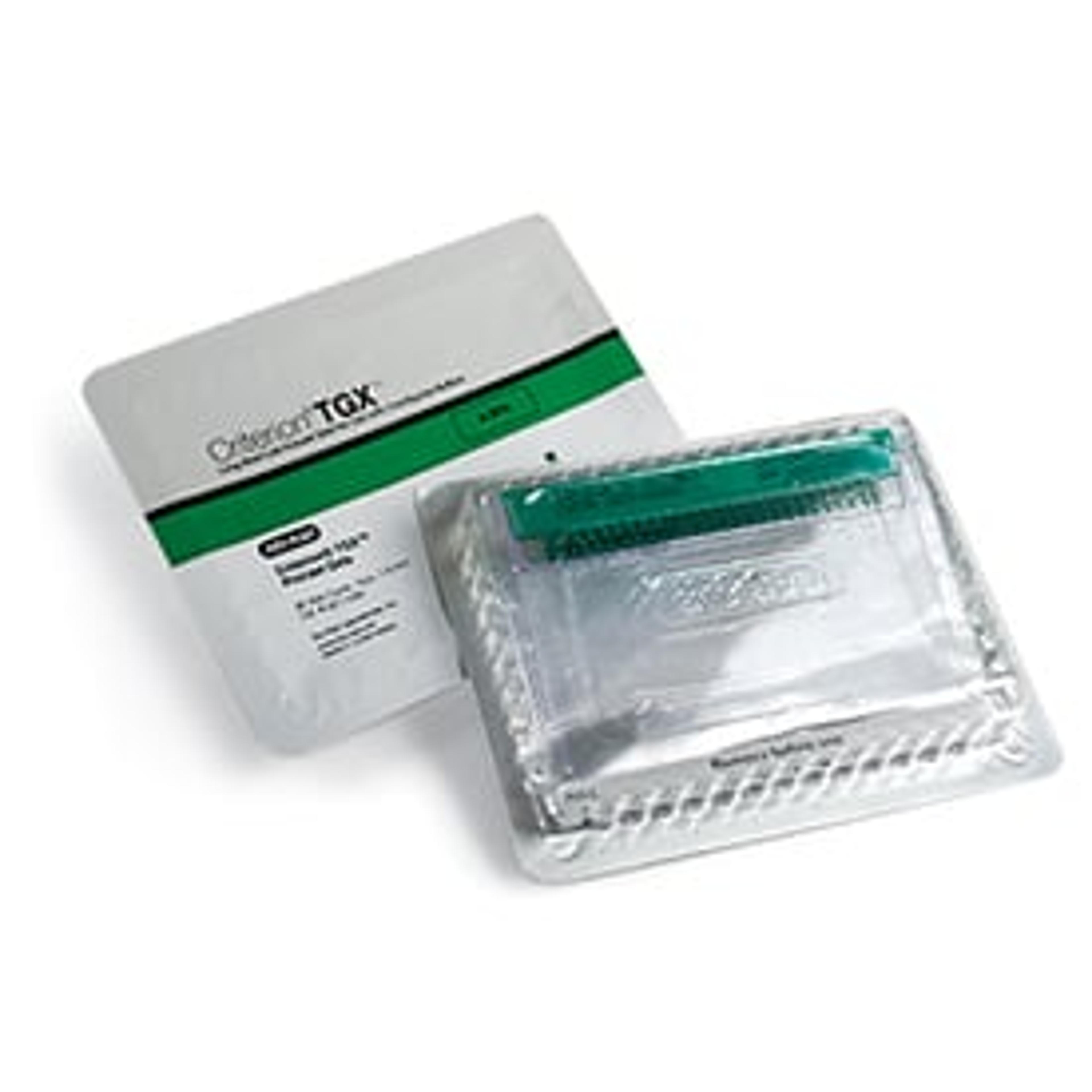

4–20% Criterion™ TGX™ Precast Midi Protein Gel, 11 cm IPG/prep+1 well, 550 µl
Bio-RadPkg of 1, 4–20% precast polyacrylamide gel, IPG+1-well, 11 cm IPG strip, for use with Criterion and Criterion™ Dodeca™ cells
AnykD™ Criterion™ TGX™ Precast Midi Protein Gel, 26 well, 15 µl
Bio-RadPkg of 1, Any kD precast polyacrylamide gel, 26-well, 15 µl, for use with Criterion and Criterion™ Dodeca™ cells
4–20% Criterion™ TGX™ Precast Midi Protein Gel, Prep+2 well, 700 µl
Bio-RadPkg of 1, 4–20% precast polyacrylamide gel, prep+2-well, 800 µl, for use with Criterion and Criterion™ Dodeca™ cells
4–20% Criterion™ TGX™ Precast Midi Protein Gel, 12+2 well, 45 µl
Bio-RadPkg of 1, 4–20% precast polyacrylamide gel, 12+2-well, 45 µl, for use with Criterion and Criterion™ Dodeca™ cells
4–20% Criterion™ TGX™ Precast Midi Protein Gel, 18 well, 30 µl
Bio-RadPkg of 1, 4–20% precast polyacrylamide gel, 18-well, 30 µl, for use with Criterion and Criterion™ Dodeca™ cells
7.5% Criterion™ TGX™ Precast Midi Precast Midi Protein Gel, 12+2 well, 45 µl
Bio-RadPkg of 1, 7.5% precast polyacrylamide gel, 12+2-well, 45 µl, for use with Criterion and Criterion™ Dodeca™ cells
7.5% Criterion™ TGX™ Precast Midi Protein Gel, 18 well, 30 µl
Bio-RadPkg of 1, 7.5% precast polyacrylamide gel, 18-well, 30 µl, for use with Criterion and Criterion™ Dodeca™ cells
7.5% Criterion™ TGX™ Precast Midi Protein Gel, 26 well, 15 µl
Bio-RadPkg of 1, 7.5% precast polyacrylamide gel, 26-well, 15 µl, for use with Criterion and Criterion™ Dodeca™ cells
10% Criterion™ TGX™ Precast Midi Protein Gel, 12+2 well, 45 µl
Bio-RadPkg of 1, 10% precast polyacrylamide gel, 12+2-well, 45 µl, for use with Criterion and Criterion™ Dodeca™ cells
4–15% Criterion™ TGX™ Precast Midi Protein Gel, Prep+2 well, 700 µl
Bio-RadPkg of 1, 4–15% precast polyacrylamide gel, prep+2-well, 800 µl, for use with Criterion and Criterion™ Dodeca™ cells
4–15% Criterion™ TGX™ Precast Midi Protein Gel, 18 well, 30 µl
Bio-RadPkg of 1, 4–15% precast polyacrylamide gel, 18-well, 30 µl, for use with Criterion and Criterion™ Dodeca™ cells
4–15% Criterion™ TGX™ Precast Midi Protein Gel, 26 well, 15 µl
Bio-RadPkg of 1, 4–15% precast polyacrylamide gel, 26-well, 15 µl, for use with Criterion and Criterion™ Dodeca™ cells
4–20% Criterion™ TGX™ Precast Midi Protein Gel, 26 well, 15 µl
Bio-RadPkg of 1, 4–20% precast polyacrylamide gel, 26-well, 15 µl, for use with Criterion and Criterion™ Dodeca™ cells
8–16% Criterion™ TGX™ Precast Midi Protein Gel, 11 cm IPG/prep+1 well, 550 µl
Bio-RadPkg of 1, 8–16% precast polyacrylamide gel, IPG+1-well, 11 cm IPG strip, for use with Criterion and Criterion™ Dodeca™ cells
8–16% Criterion™ TGX™ Precast Midi Protein Gel, Prep+2 well, 700 µl
Bio-RadPkg of 1, 8–16% precast polyacrylamide gel, prep+2-well, 800 µl, for use with Criterion and Criterion™ Dodeca™ cells
10% Criterion™ TGX™ Precast Midi Protein Gel, 18 well, 30 µl
Bio-RadPkg of 1, 10% precast polyacrylamide gel, 18-well, 30 µl, for use with Criterion and Criterion™ Dodeca™ cells
10% Criterion™ TGX™ Precast Midi Protein Gel, 26 well, 15 µl
Bio-RadPkg of 1, 10% precast polyacrylamide gel, 26-well, 15 µl, for use with Criterion and Criterion™ Dodeca™ cells
12% Criterion™ TGX™ Precast Midi Protein Gel, 12+2 well, 45 µl
Bio-RadPkg of 1, 12% precast polyacrylamide gel, 12+2-well, 45 µl, for use with Criterion and Criterion™ Dodeca™ cells
12% Criterion™ TGX™ Precast Midi Protein Gel, 18 well, 30 µl
Bio-RadPkg of 1, 12% precast polyacrylamide gel, 18-well, 30 µl, for use with Criterion and Criterion™ Dodeca™ cells
12% Criterion™ TGX™ Precast Midi Protein Gel, 26 well, 15 µl
Bio-RadPkg of 1, 12% precast polyacrylamide gel, 26-well, 15 µl, for use with Criterion and Criterion™ Dodeca™ cells
18% Criterion™ TGX™ Precast Midi Protein Gel, 11 cm IPG/prep+1 well, 550 µl
Bio-RadPkg of 1, 18% precast polyacrylamide gel, IPG+1-well, 11 cm IPG strip, for use with Criterion and Criterion™ Dodeca™ cells
4–15% Criterion™ TGX™ Precast Midi Protein Gel, 11 cm IPG/prep+1 well, 550 µl
Bio-RadPkg of 1, 4–15% precast polyacrylamide gel, IPG+1-well, 11 cm IPG strip, for use with Criterion and Criterion™ Dodeca™ cells
8–16% Criterion™ TGX™ Precast Midi Protein Gel, 12+2 well, 45 µl
Bio-RadPkg of 1, 8–16% precast polyacrylamide gel, 12+2-well, 45 µl, for use with Criterion and Criterion™ Dodeca™ cells
8–16% Criterion™ TGX™ Precast Midi Protein Gel, 18 well, 30 µl
Bio-RadPkg of 1, 8–16% precast polyacrylamide gel, 18-well, 30 µl, for use with Criterion and Criterion™ Dodeca™ cells
8–16% Criterion™ TGX™ Precast Midi Protein Gel, 26 well, 15 µl
Bio-RadPkg of 1, 8–16% precast polyacrylamide gel, 26-well, 15 µl, for use with Criterion and Criterion™ Dodeca™ cells
AnykD™ Criterion™ TGX™ Precast Midi Protein Gel, 11 cm IPG/prep+1 well, 550 µl
Bio-RadPkg of 1, Any kD precast polyacrylamide gel, IPG+1-well, 11 cm IPG strip, for use with Criterion and Criterion™ Dodeca™ cells
AnykD™ Criterion™ TGX™ Precast Midi Protein Gel, Prep+2 well, 700 µl
Bio-RadPkg of 1, Any kD precast polyacrylamide gel, prep+2-well, 800 µl, for use with Criterion and Criterion™ Dodeca™ cells
AnykD™ Criterion™ TGX™ Precast Midi Protein Gel, 12+2 well, 45 µl
Bio-RadPkg of 1, Any kD precast polyacrylamide gel, 12+2-well, 45 µl, for use with Criterion and Criterion™ Dodeca™ cells
AnykD™ Criterion™ TGX™ Precast Midi Protein Gel, 18 well, 30 µl
Bio-RadPkg of 1, Any kD precast polyacrylamide gel, 18-well, 30 µl, for use with Criterion and Criterion™ Dodeca™ cells
4–15% Criterion™ TGX™ Precast Midi Protein Gel, 12+2 well, 45 µl
Bio-RadPkg of 1, 4–15% precast polyacrylamide gel, 12+2-well, 45 µl, for use with Criterion and Criterion™ Dodeca™ cells
