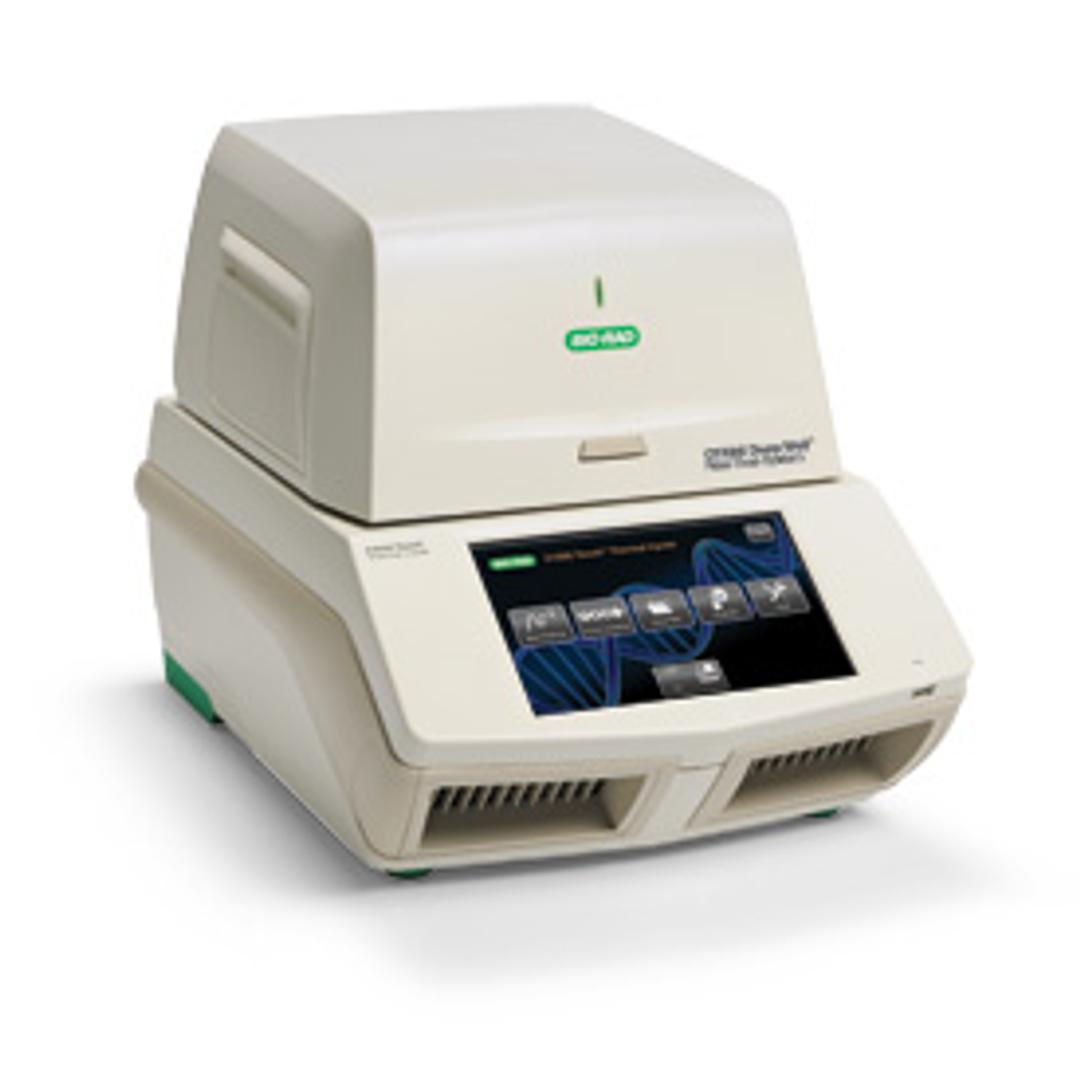

CFX96 Touch™ Deep Well Real-Time PCR Detection System
Modular thermal cycler platform, includes C1000 Touch™ thermal cycler chassis, CFX96 Deep Well™ optical reaction module, CFX Manager™ software, qbasePLUS software license, cables
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
It's good for quantitative data analysis
Gene expression and copy no identified
It's easy to handle and gives proper results in a single run.
Review Date: 16 Oct 2024 | Bio-Rad
User-friendly but costly
Immunology
The equipment we are using is really nice compared to others available in the market.
Review Date: 11 Sept 2024 | Bio-Rad
Easy to use, easy to customize as well
Copy number quantification
Easy to use and reproducible results. Only issue I had was some pre programmed setups were not easy to modify.
Review Date: 28 Feb 2023 | Bio-Rad
Great instrument ,very dynamic and durable
Qualitative and Quantitative PCR
The equipment is versatile and has been validated with a lot of Reagents kits thus it is applicable for various systems,However the standard curve cannot ne exported ans used for various runs when running viral loads
Review Date: 26 Jan 2023 | Bio-Rad
Use the CFX96 Deep Well Real-Time PCR Detection System for precise, reproducible real-time PCR. The system is composed of the CFX96 Deep Well Optical Reaction Module and the C1000 Touch Thermal Cycler Chassis. The module is a member of the family of interchangeable reaction modules that can be used with the C1000 Touch Thermal Cycler Chassis for PCR and real-time PCR. All modules can be quickly inserted and removed from the cycler chassis without tools.
Features and Benefits
- Deep wells for large volumes
- Detection of up to 5 targets per well, plus a channel dedicated to singleplex FRET
- Protocol autowriter that generates an optimal protocol for your reaction components
- Thermal gradient that identifies optimal annealing temperature in a single run
The CFX96 Deep Well Real-Time PCR Detection System has six independently controlled thermal electric units providing even, precisely controlled temperatures at all times during the run, including ramping. The reduced mass of the honeycomb block provides fast ramping and reduced settling time (time to achieve thermal uniformity).
The optical system, with six filtered LEDs and six filtered photodiodes, collects data from all wells, detecting up to five targets per well. For single-color FAM and SYBR® Green I, the fast scan option reads single-channel fluorescence in all 96 wells in just 3 seconds. A channel with an LED filter–photodiode combination is dedicated to FRET singleplex experiments.
The large touch-screen interface has intuitive graphical programming and displays data traces in real time. The programmable thermal gradient feature can test eight temperatures at once to quickly determine the optimal annealing temperature, and the protocol autowriter quickly optimizes reactions, generating an optimal protocol based on your polymerase, primers, and product length.
Product Components
- C1000 Touch Thermal Cycler Chassis ( 1841100 )
- CFX96 Deep Well Optical Reaction Module ( 1840197 )
- USB cable
- Instruction manual
Configuration Options
The following modules can be used with the C1000 Touch Thermal Cycler Chassis:
*Starter package contains SsoAdvanced™ Universal SYBR® Green Supermix ( 1725270 ), Microseal® 'B' Adhesive Seals ( MSB1001 ), and Hard-Shell® Low-Profile Thin-Wall 96-Well Skirted PCR Plates ( HSP9601 ) or Hard-Shell Thin-Wall 384-Well Skirted PCR Plates ( HSP3805 ).
The CFX96 Deep Well Real-Time PCR Detection System can be configured with other PCR instruments, allowing stand-alone or software control. Instrument permutations allow up to four different CFX Connect™, CFX96, or CFX384 Systems to be controlled by one PC.
Combine any two CFX Real-Time PCR Detection Systems with the CFX Automation System II , our robotic plate handler, to create a high-throughput, automated real-time PCR system with a compact footprint.
Service Plans and Validation Tools for CFX Systems
- Ensure that your real-time PCR systems are functioning optimally with Bio-Rad Expert Care Service ; choose from several service plans to keep your CFX Automation System II up and running its best
- Certify system installation and validate system performance with CFX System IQ/OQ Services and CFX Automation System II IQ/OQ Services
- Verify the performance of your CFX Systems with Thermal Validation Services and the CFX Qualification Plates
Related Products
- PX1™ PCR Plate Sealer
- PCR plastics optimized for CFX Real-Time PCR Detection Systems:
- Hard-Shell 96-Well Low Profile Skirted PCR Plates including barcoded plates ( HSP9955 )
- Microseal 'B' Adhesive Seals ( MSB1001 )
- Optically Clear Heat Seals ( 1814030 )
- CFX Maestro Software, Security Edition , for compliance with U.S. FDA 21 CFR Part 11 regulations
- CFX Qualification Plate for performance verification, 96-well ( 1845098 )
