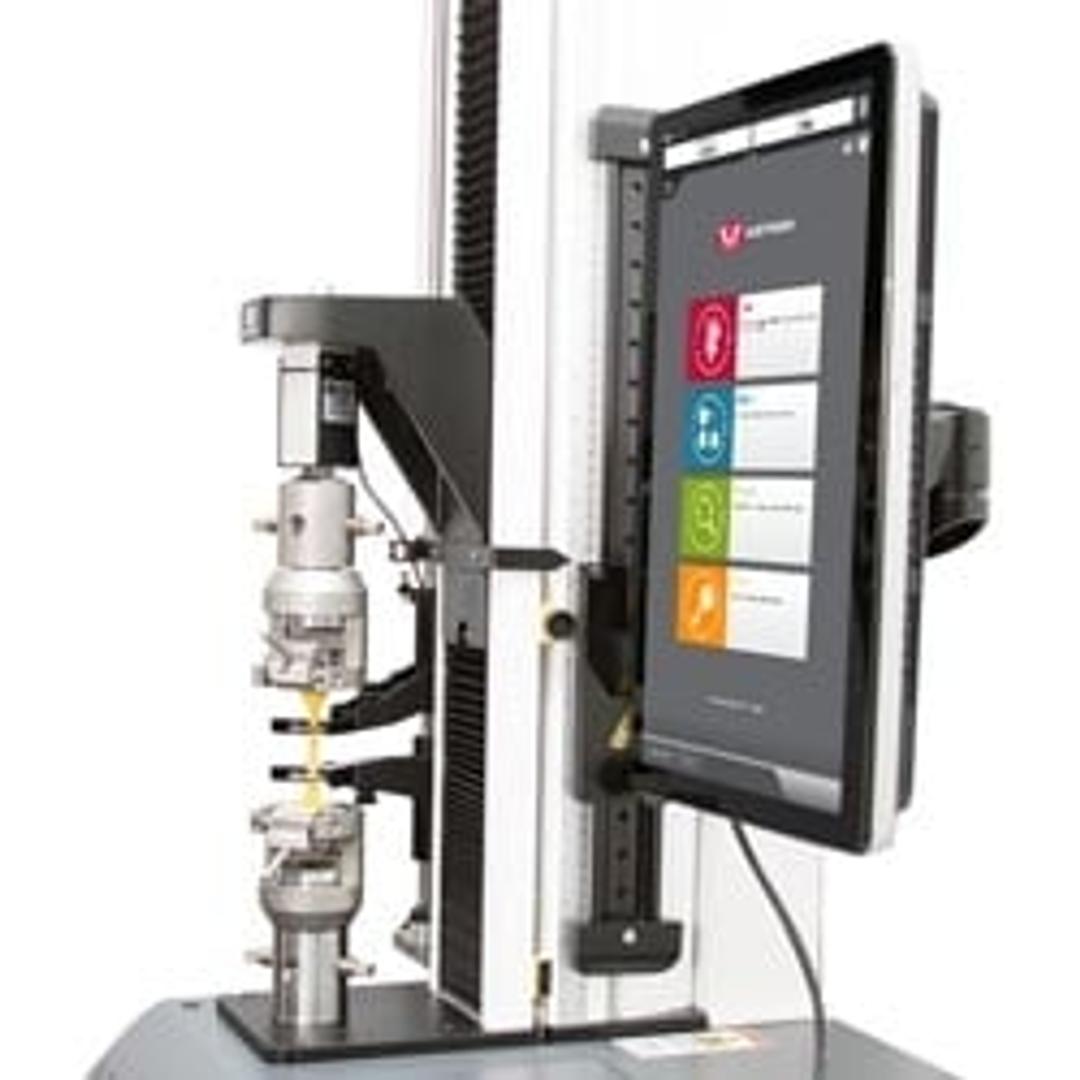

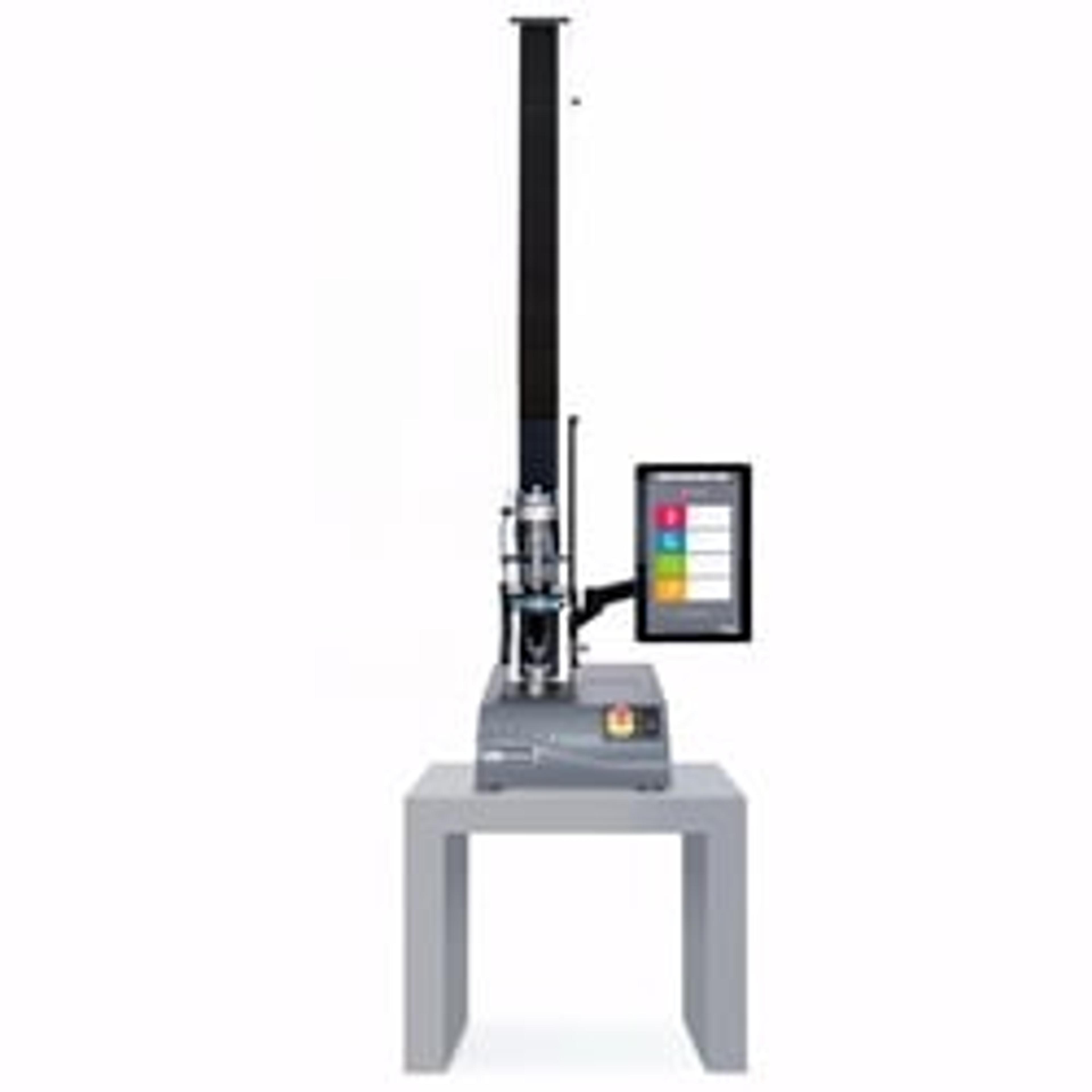

3342 Single Column Universal Testing Systems
The 3340 Series Single Column Systems are ideal for tension and/or compression applications where tests are less than 5 kN (1,100 lbf), lab space is limited, and where free access to the test area is desirable. The 3340 Series Single Column Testing Systems provide simplicity, performance, and affordability for quality control (QC) labs and production testing. Features 100:1 force range (i.e. use the load cell to 1.…
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
The 3340 Series Single Column Systems are ideal for tension and/or compression applications where tests are less than 5 kN (1,100 lbf), lab space is limited, and where free access to the test area is desirable. The 3340 Series Single Column Testing Systems provide simplicity, performance, and affordability for quality control (QC) labs and production testing.
Features
- 100:1 force range (i.e. use the load cell to 1.0% of capacity with no loss of accuracy).
- Load accuracy of 0.5% of indicated load.
- 500Hz data acquisition rate (Bluehill® 3).
- 100Hz data acquisition rate (Bluehill & Bluehill Lite).
- Full software control (cyclic capability optional).
- Automatic transducer recognition.
- Thousands of optional grips and fixtures.
- Optional temperature chambers.
- Color: Grey base with white columns.
- Full CE compliance.
Product specification for 3342 Model
- 0.5 kN (112 lbf) load capacity
- 651 mm (25.6 in) vertical test space
- Reduced overall height for compact size and low weight
